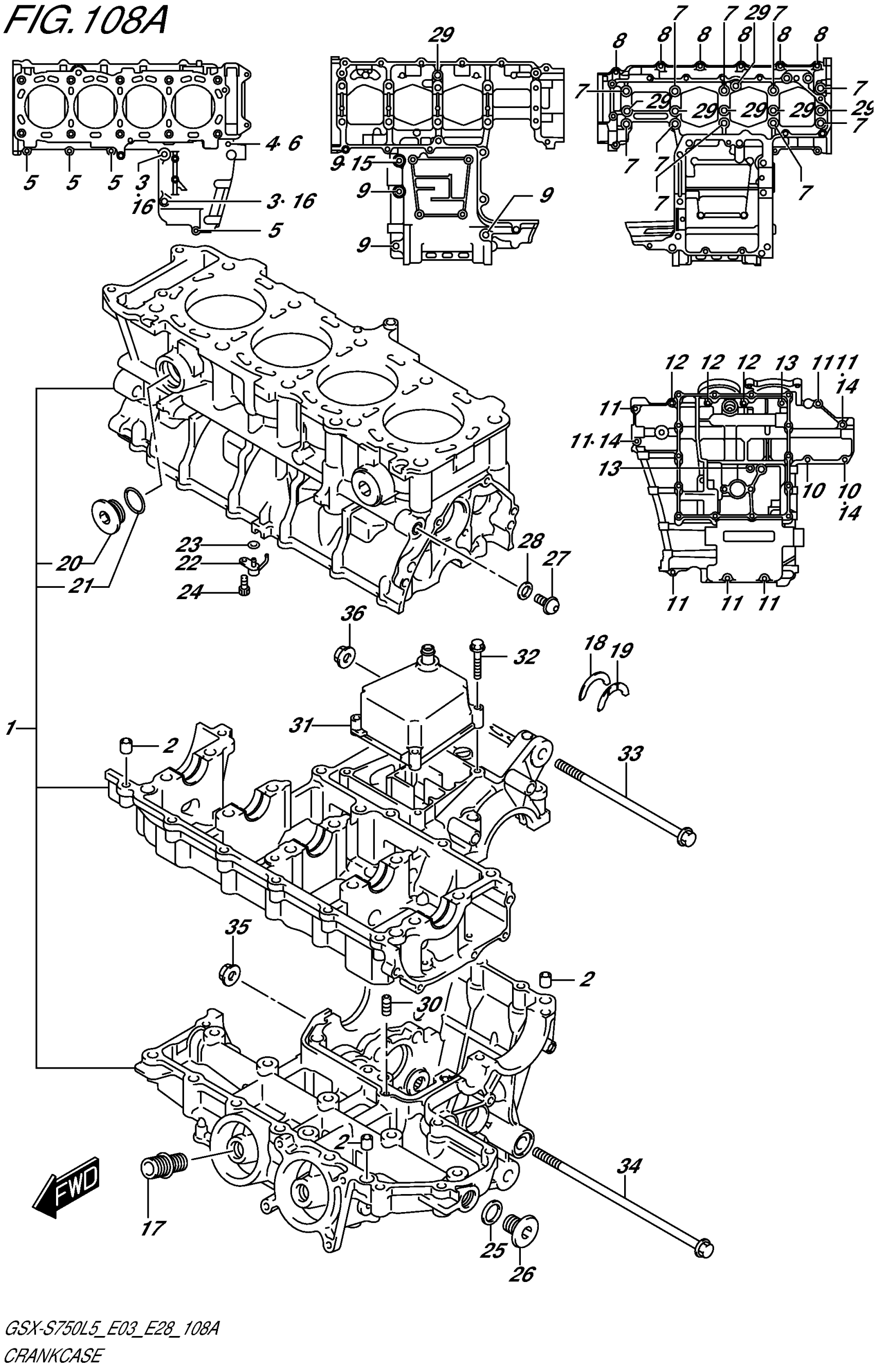

Suzuki GSX-S750L5 (2015) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-08810

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.23

3

BOLT (8X120)

09106-08139

$14.62

4

GASKET (5.8X13X1.2)

09168-06023

$2.09

5

BOLT

01547-0640A

$2.38

6

BOLT

01547-0680A

$3.58

7

BOLT (9X95)

09103-09012

$8.18

8

BOLT

01547-0640A

$2.38

9

BOLT

07120-0865A

$5.17

10

BOLT

01547-0630A

$2.38

11

BOLT

01547-0640A

$2.38

12

BOLT

01547-0660A

$2.80

13

BOLT

01547-0670A

$2.80

14

GASKET (5.8X13X1.2)

09168-06023

$2.09

15

GASKET (8.2X14X1)

09168-08016

$1.70

16

GASKET (8.2X14X1)

09168-08016

$1.70

17

UNION,OIL STAND

16591-06B01

$6.74

18

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.36

19

BEARING, THRUST LH (RED)

12228-17E00-0A0

$12.85

19

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.54

19

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.54

19

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.36

19

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

19

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

20

PLUG, WATER JACKET

11318-35F00

$18.93

21

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.98

22

JET,PISTON COOLING

11390-35F00

$32.25

23

O RING (D:1.2,ID:4)

09280-04004

$1.76

24

BOLT (6X12)

09106-06075

$2.58

25

GASKET (16X22X2)

09168-16002

$1.97

26

PLUG

09248-16013

$4.56

27

PLUG (10X10)

09248-10010

$3.96

28

GASKET (10X14X3.6)

09168-10002

$1.96

29

O RING (D:1.9,ID:7.8)

09280-08012

$3.42

30

JET, 140

09493-28012

$18.33

31

COVER,BREATHER

11370-44G00

Unavailable

32

BOLT

01547-0635A

$2.38

33

BOLT (10X175)

09103-10458

$19.38

34

BOLT (10X255)

09103-10137

$15.42

35

NUT

09159-10115

$3.31

36

NUT

09159-10123

Unavailable
