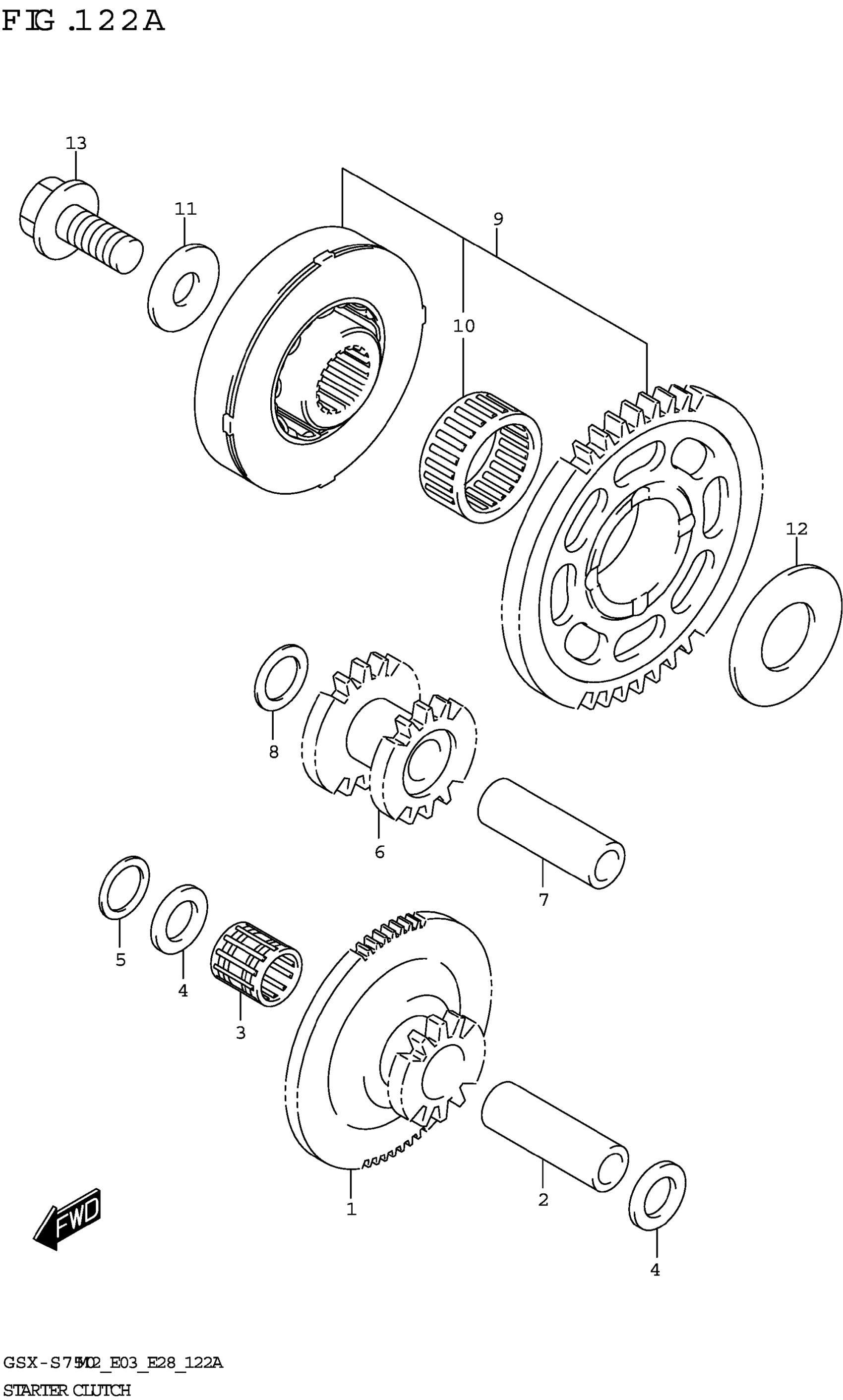

Suzuki GSX-S750AM2 (2022) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR,STARTER IDLE,NO.1 (NT:13 | 70)

12611-40F00

$119.75

2

PIN,PISTON

12151-09204

$9.31

3

BEARING (12X16X16)

09263-12023

$9.20

4

SHIM (12X20X1)

09181-12167

$2.24

5

WASHER (37.3X52X1)

09164-12021

$2.01

6

GEAR,STARTER IDLE,NO.2 (NT:15 | 17)

12612-40F00

$85.42

7

PIN,PISTON

12151-09204

$9.31

8

WASHER (37.3X52X1)

09164-12021

$2.01

9

CLUTCH SET, STARTER (NT:44)

12600-40831

$421.02

10

BEARING (26X31X16)

09263-26035

$77.93

11

WASHER

08211-10285

$3.19

12

WASHER

08211-20403

$3.95

13

BOLT (10X23)

09103-10189

$3.70
