2022 Suzuki GSX-S750AM2 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2022 Suzuki GSX-S750AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

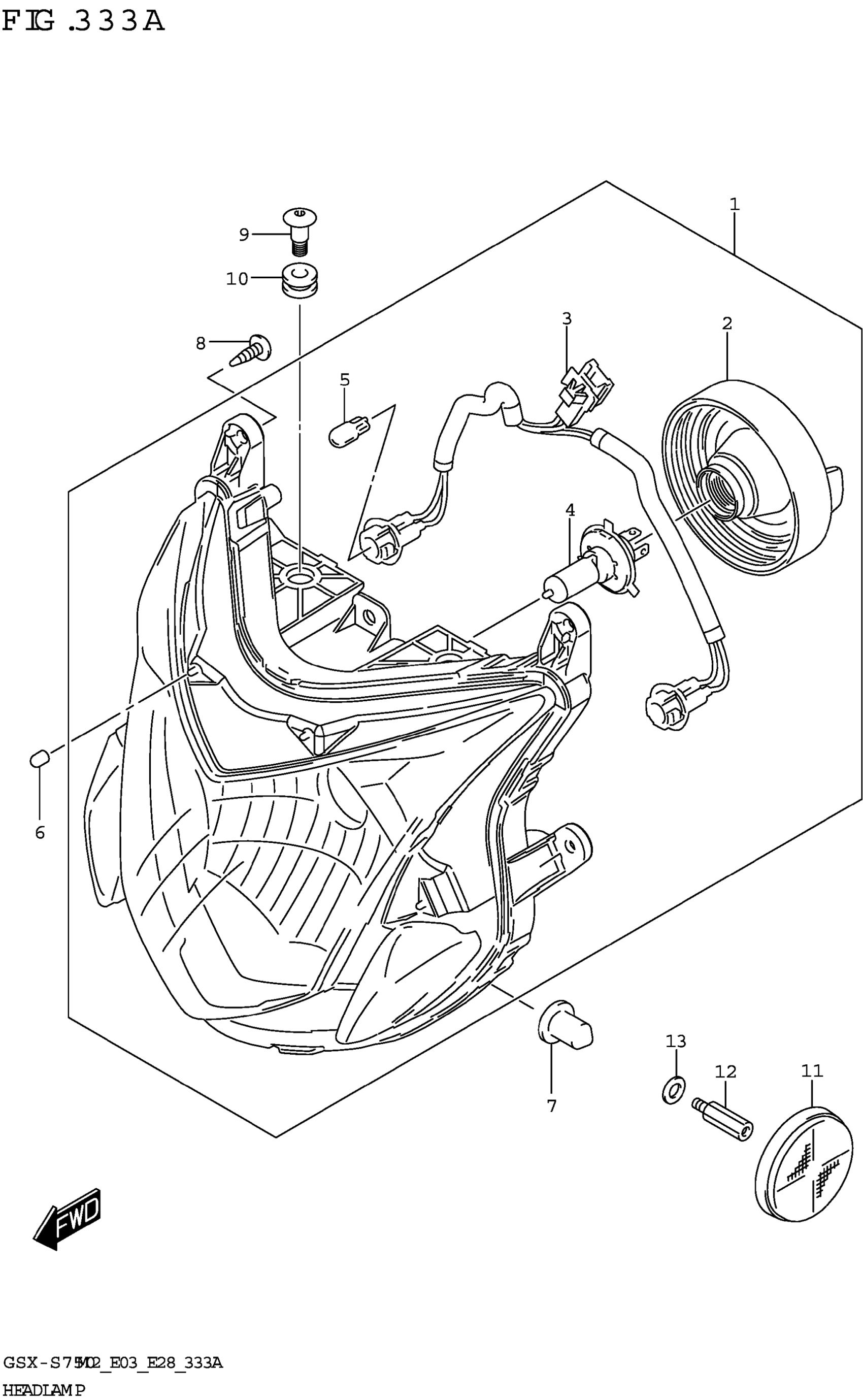

2022 Suzuki GSX-S750AM2 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-13K10

1
Out of stock

2

.COVER, SOCKET

35152-13K00

1
Out of stock

3

.CORD ASSY

35171-13K00

1
Out of stock

4

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

1
Out of stock

5

.BULB (12V5W)

09471-12216

2
Out of stock

6

CUSHION,FUEL TANK COVER

44294-43H11

4
Out of stock

7

CUSHION,HEADLAMP BRACE

51831-21D00

2
Out of stock

8

SCREW

03541-0516A

4
Out of stock

9

SCREW (6X20)

09139-06126

2
Out of stock

10

CUSHION (9X18X10)

09320-09501

2
Out of stock

11

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

2
Out of stock

12

BOLT

09119-06109

2
Out of stock

13

WASHER (8.5X18X1.0)

09160-08043

2
Out of stock
← Handle Switch Headlamp Housing →
