2022 Suzuki GSX-S750AM2 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2022 Suzuki GSX-S750AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

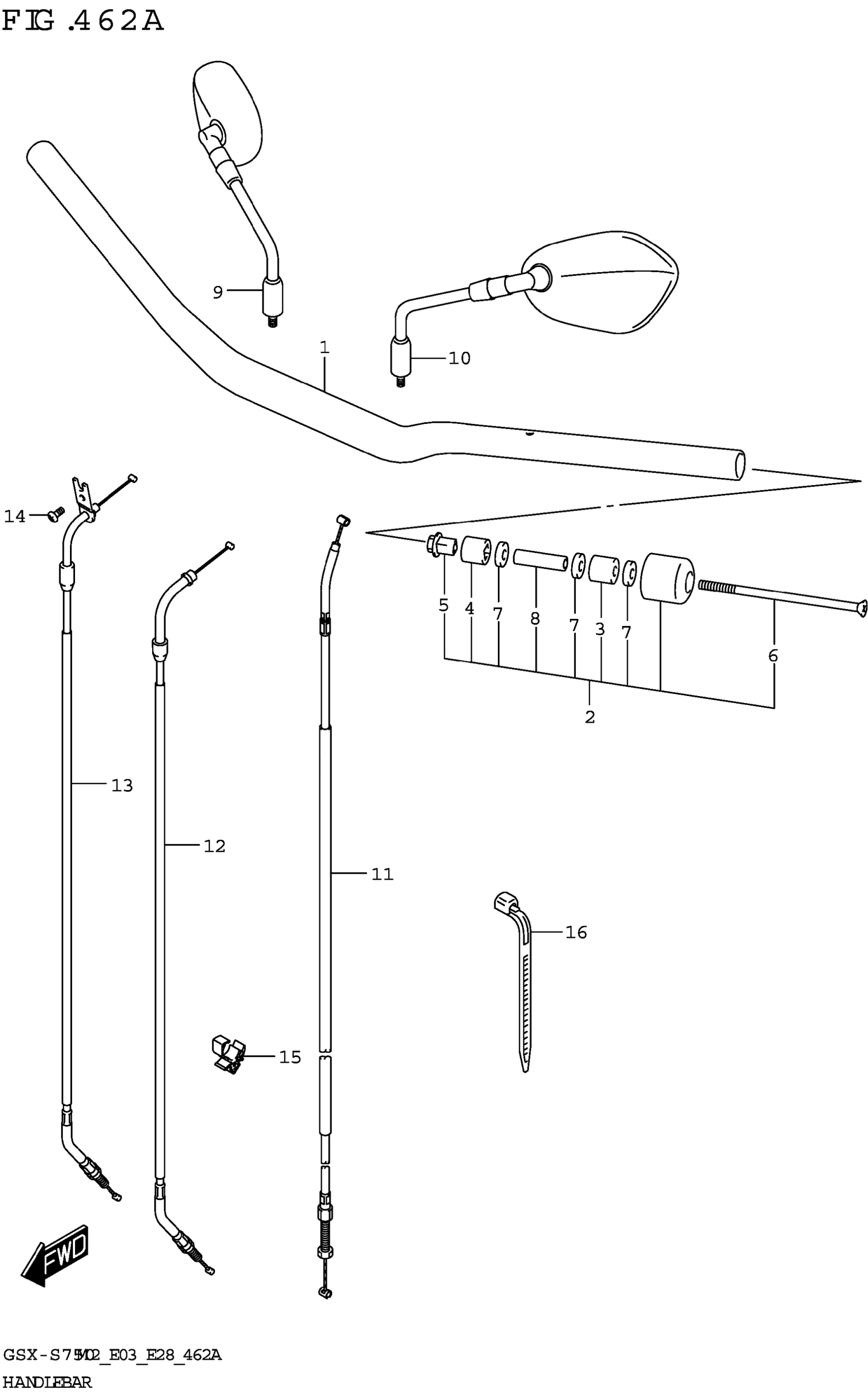

2022 Suzuki GSX-S750AM2 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-13K10

1

$325.67

In stock

2

BALANCER SET,HANDLE

56200-11861

2

$23.32

In stock

3

.EXPANDER,HANDLE BALANCER

56272-10G01

2
Out of stock

4

2

$6.15

In stock

5

.NUT,HANDLE BALANCER

56273-10G10

2
Out of stock

6

.SCREW (6X110)

09127-06018

2

$3.35

In stock

7

.WASHER (6.5X16X4)

09160-06131

6
Out of stock

8

.SPACER (6.5X10X27.5)

09180-06298

2

$3.42

In stock

9

1

$134.20

In stock

10

1

$136.52

In stock

11

CABLE ASSY,CLUTCH

58200-13K01

1

$27.08

In stock

12

1

$64.28

In stock

13

1

$58.45

In stock

14

SCREW

02142-0510B

1
Out of stock

15

CLAMP

09403-11321

1
Out of stock

16

CLAMP (L:165)

09407-18402

1
Out of stock
