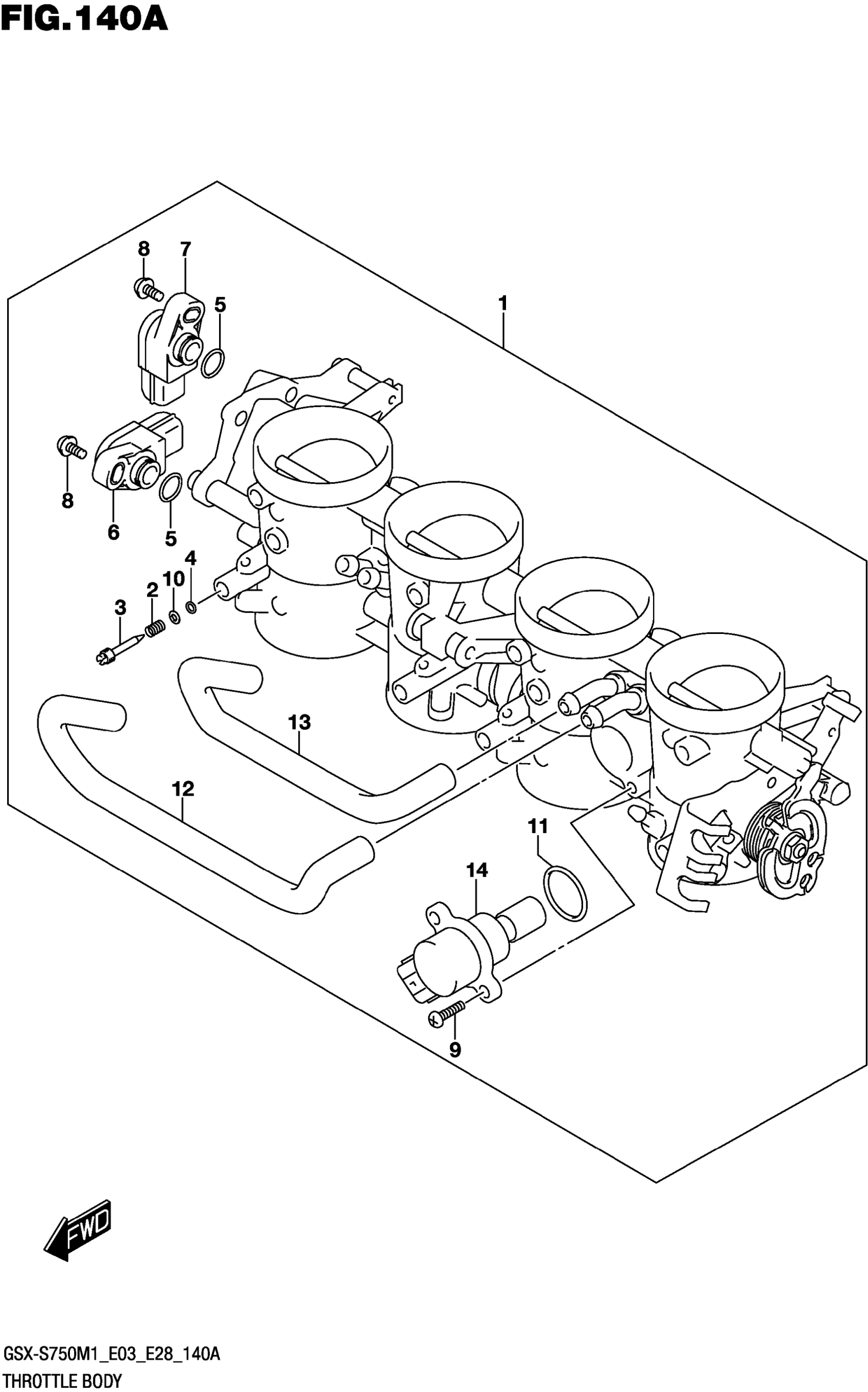

Suzuki GSX-S750AM1 (2021) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-13K00

$1,811.73

2

SPRING,THROTTLE SCREW

13268-48700

$3.97

3

SCREW

13269-33E00

$10.45

4

O-RING

13295-29901

$3.97

5

.O-RING

13575-29G01

$2.97

6

.SENSOR

13580-14J00

$169.70

7

.SENSOR ASSY

13580-29G00

$109.53

8

.SCREW

13605-02F00

$3.50

9

SCREW This part replaces 13602-05A40.

02112-0412A

$1.24

10

WASHER

13606-47A00

$3.70

11

.O-RING

13679-37H00

$8.21

12

.HOSE

13698-08J00

$47.88

13

.HOSE

13698-08J10

Unavailable

14

.MOTOR ASSY

18117-14J01

$436.22
