2021 Suzuki GSX-S750AM1 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2021 Suzuki GSX-S750AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

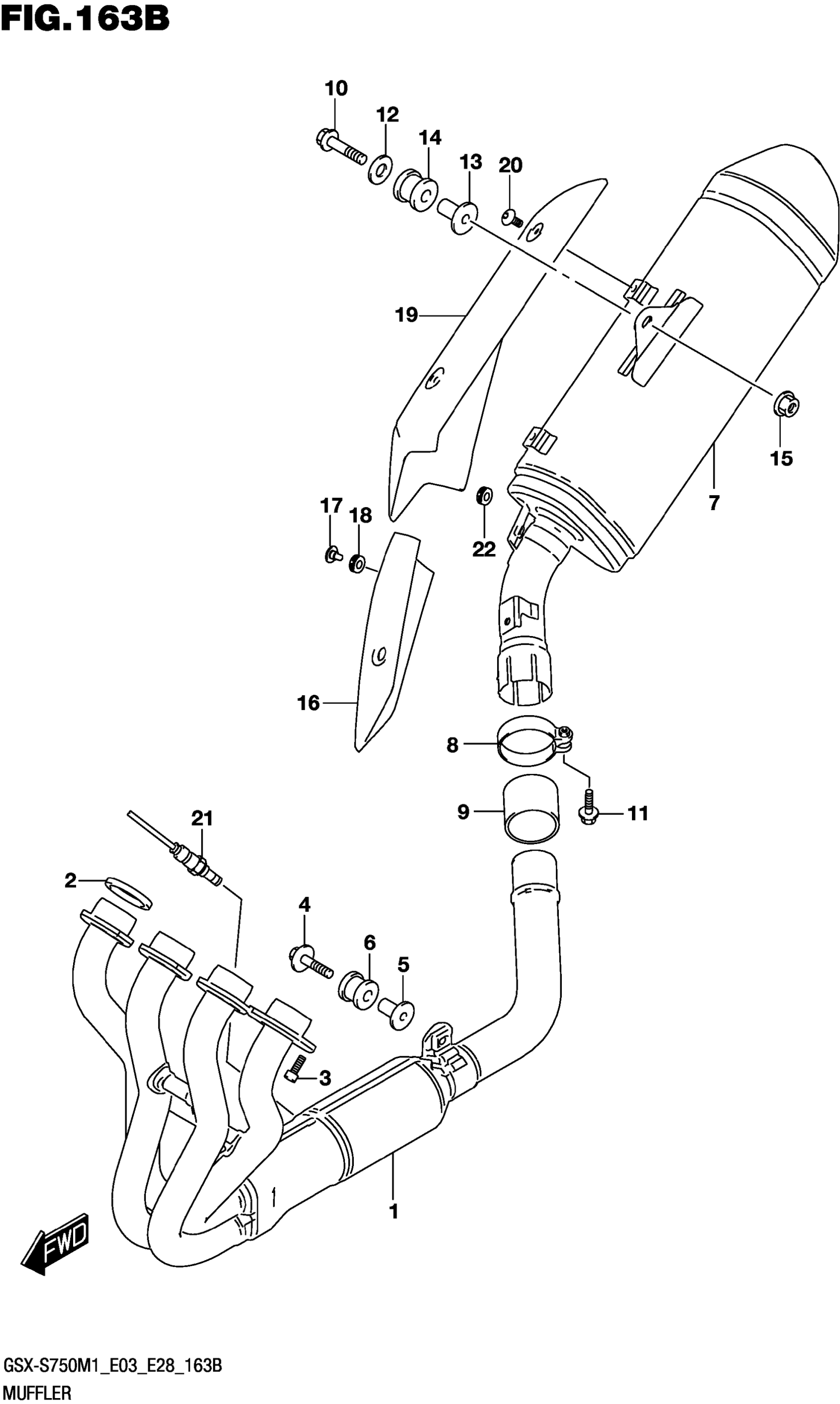

2021 Suzuki GSX-S750AM1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,033.32

In stock

2

.GASKET,EXHAUST

14181-46E10

4

$7.20

In stock

3

BOLT (8X25)

09106-08178

8
Out of stock

4

BOLT (8X45)

09118-08152-A05

1

$5.10

In stock

5

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

6

CUSHION (12X30X24)

09320-12077

1
Out of stock

7

BODY, MUFFLER | LVER)

14310-13K01-H01

1

$562.80

In stock

8

CLAMP,MUF CONN

14459-08J00

1

$27.77

In stock

9

CONNECTOR,MUFFLER

14771-42F31

1
Out of stock

10

BOLT (8X45)

09106-08164

1

$6.95

In stock

11

BOLT (8X40)

09106-08162

1
Out of stock

12

WASHER (8.5X28X1.5)

09160-08142

1

$2.92

In stock

13

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

14

CUSHION (12X30X24)

09320-12048

1
Out of stock

15

NUT

08361-2508A

1
Out of stock

16

COVER, MUFFLER FRONT

14770-13K00

1

$72.78

In stock

17

SCREW (6X12)

09139-06124

2
Out of stock

18

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

19

COVER, MUFFLER CENTER

14781-13K00

1

$137.93

In stock

20

SCREW (6X10)

09139-06078

2

$2.92

In stock

21

SENSOR,OXYGEN

18213-18K00

1

$351.27

In stock

22

CUSHION (4X12X8)

09320-04013

1
Out of stock
