2019 Suzuki GSX-S750AL9 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2019 Suzuki GSX-S750AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

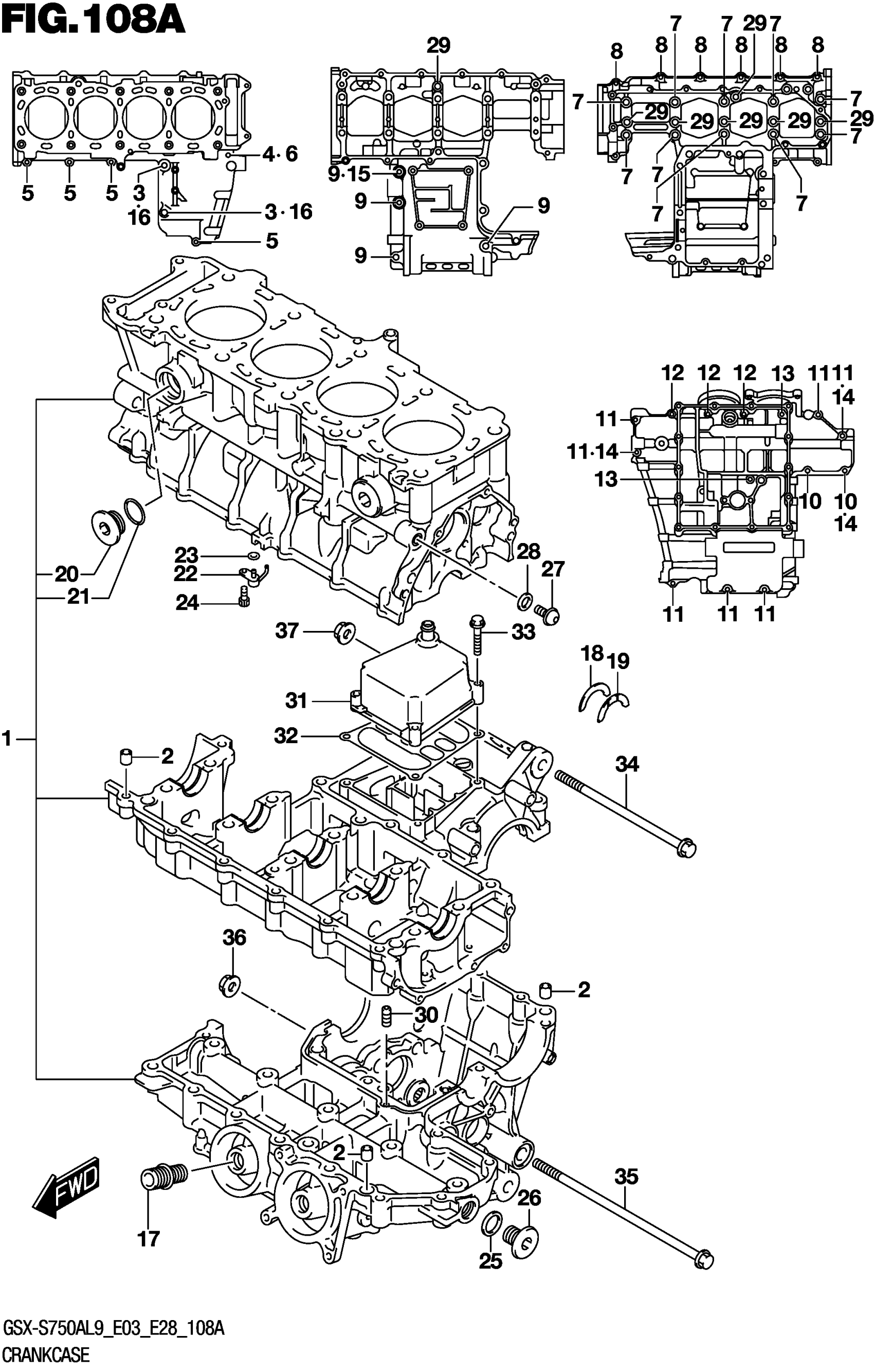

2019 Suzuki GSX-S750AL9 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

11300-08820

1

$3,903.90

In stock

2

PIN,CRANKCASE

11319-33E50

6

$5.45

In stock

3

.BOLT (8X120)

09106-08198

—
Out of stock

4

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

5

BOLT

01547-0640A

4
Out of stock

6

.BOLT

01547-0680A

1
Out of stock

7

.BOLT (9X95)

09103-09012

10

$8.52

In stock

8

BOLT

01547-0640A

6
Out of stock

9

.BOLT

07120-0865A

4

$5.17

In stock

10

BOLT

01547-0630A

2

$2.48

In stock

11

BOLT

01547-0640A

7
Out of stock

12

BOLT

01547-0660A

3

$2.92

In stock

13

.BOLT

01547-0670A

2
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

15

GASKET (8.2X14X1)

09168-08016

1
Out of stock

16

GASKET (8.2X14X1)

09168-08016

2
Out of stock

17

UNION,OIL STAND

16591-06B01

1
Out of stock

18

1

$9.75

In stock

19-1

.BEARING,CRANK THRUST (RED)

12228-17E00-0A0

1

$12.85

In stock

19-2

1

$9.94

In stock

19-3

1

$9.94

In stock

19-4

1

$9.75

In stock

19-5

1

$12.85

In stock

19-6

1

$13.10

In stock

20

.PLUG,WATER JACKET

11318-35F00

3

$18.93

In stock

21

3

$2.06

In stock

22

JET,PISTON COOLING

11390-35F00

4

$32.25

In stock

23

O-RING (D:1.2,ID:4)

09280-04004

4

$2.03

In stock

24

BOLT (6X12)

09106-06075

4
Out of stock

25

GASKET (16X22X2)

09168-16002

3
Out of stock

26

PLUG (16X12)

09248-16013

3

$4.75

In stock

27

PLUG (10X10)

09248-10010

1
Out of stock

28

GASKET (10X14X3.6)

09168-10002

1

$2.27

In stock

29

O-RING (D:1.9,ID:7.8)

09280-08012

7

$3.56

In stock

30

JET (#140)

09493-28012

1
Out of stock

31

COVER,BREATHER

11370-44G00

1
Out of stock

32

1

$4.93

In stock

33

BOLT

01547-0635A

4
Out of stock

34

BOLT (10X175)

09103-10458

1

$19.38

In stock

35

BOLT (10X255)

09103-10137

1

$15.42

In stock

36

NUT (M10)

09159-10115

1
Out of stock

37

NUT

09159-10123

1
Out of stock
