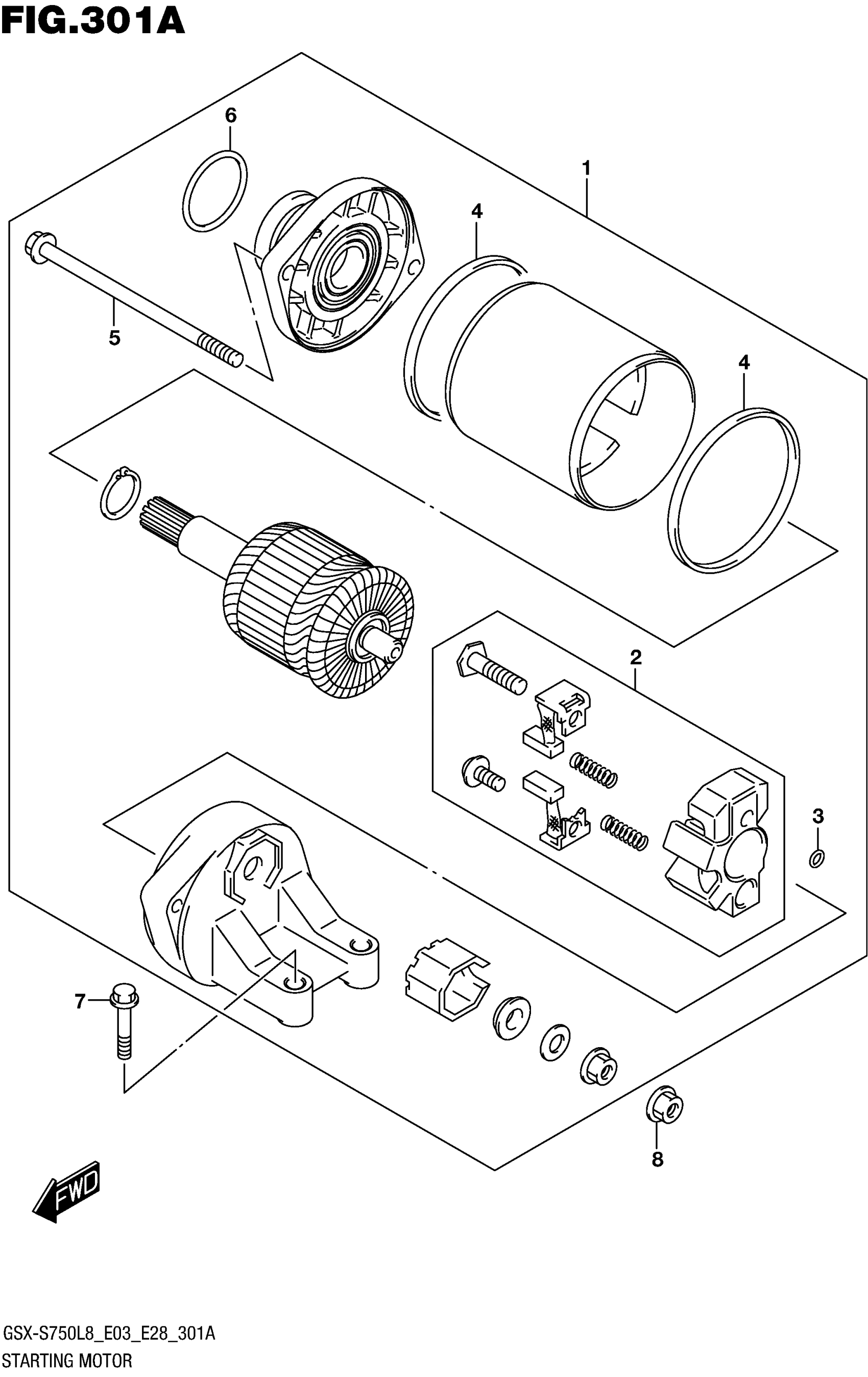

Suzuki GSX-S750AL8 (2018) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-08J00

$631.43

2

.BRUSH HOLDER SET

31132-38F10

$54.28

3

.O RING

31143-49040

$4.92

4

.SQUARE RING

31264-38F10

$9.50

5

.BOLT

31280-38F10

Unavailable

6

.O RING

31156-98E00

$3.83

7

BOLT

01547-0625A

$2.09

8

NUT

08361-3506A

$1.88
