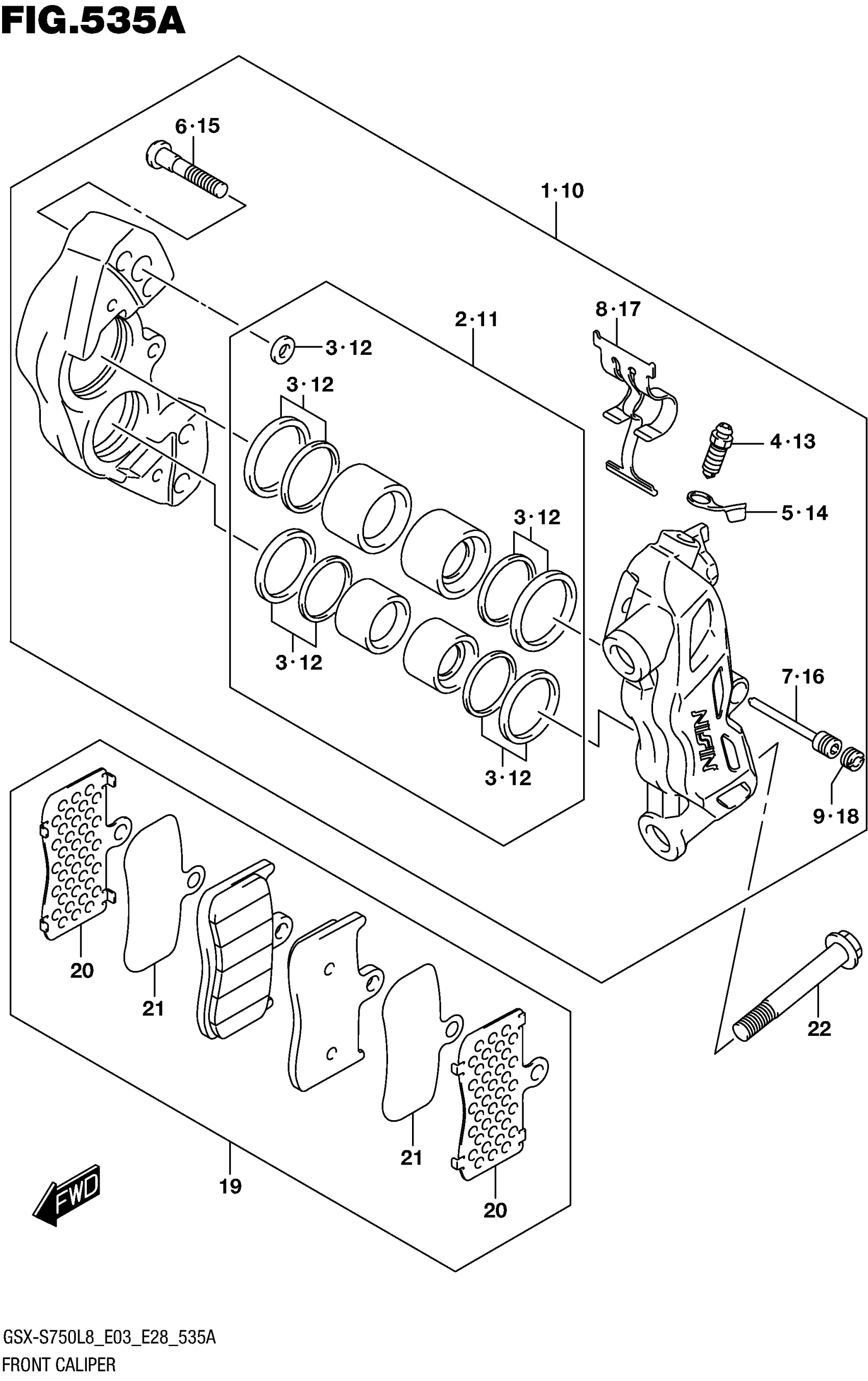

Suzuki GSX-S750AL8 (2018) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-23H40-999

$420.67

2

.PISTON SET

59100-23820

Unavailable

3

..SEAL SET, PISTON

59100-23810

$89.96

4

.BLEEDER

59121-01A00

$7.99

5

.CAP, BLEEDER

59122-01A00

$3.97

6

.BOLT

59145-23H00

Unavailable

7

.PLUG, PIN

59146-21E10

$5.62

8

.SPRING, PAD

59151-23H00

Unavailable

9

.PIN, HANGER

59345-00B20

$13.38

10

CALIPER ASSY,FRONT,L

59300-23H40-999

$420.67

11

.PISTON SET

59100-23820

Unavailable

12

..SEAL SET, PISTON

59100-23810

$89.96

13

.BLEEDER

59121-01A00

$7.99

14

.CAP, BLEEDER

59122-01A00

$3.97

15

.BOLT

59145-23H00

Unavailable

16

.PLUG, PIN

59146-21E10

$5.62

17

.SPRING, PAD

59151-23H00

Unavailable

18

.PIN, HANGER

59345-00B20

$13.38

19

PAD & SHIM SET

59100-23851

$51.81

20

.SHIM

59133-23H00

Unavailable

21

.INSULATOR

69132-23H00

Unavailable

22

BOLT (10X70)

09103-10450

$4.42
