2016 Suzuki GSX-S750AL6 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2016 Suzuki GSX-S750AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

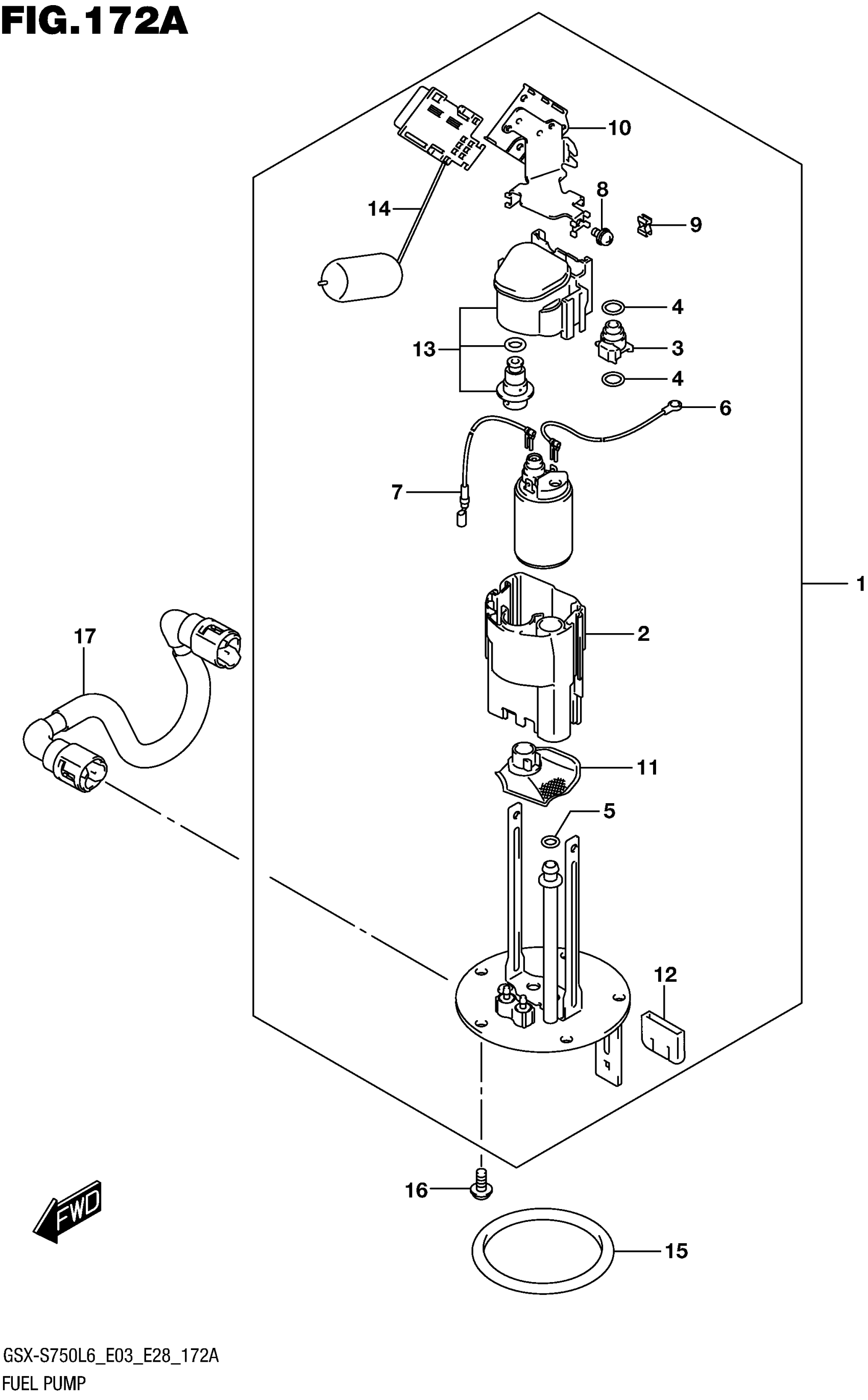

2016 Suzuki GSX-S750AL6 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL

15100-08J01

1

$808.45

In stock

2

.CUP, RESERVOIR

15111-27G00

1

$47.88

In stock

3

.JOINT

15112-05H00

1

$31.73

In stock

4

.O RING

15113-05H00

2

$20.48

In stock

5

.O RING

15113-35F00

1

$8.88

In stock

6

.WIRE, EARTH

15114-14J00

1
Out of stock

7

.WIRE,LEAD

15115-08J00

1
Out of stock

8

.SCREW

15116-10F00

3

$6.30

In stock

9

.SADDLE, EDGE

15119-08J00

1
Out of stock

10

.BRACKET, GAUGE

15181-08J00

1
Out of stock

11

.STRAINER

15420-05H00

1

$41.04

In stock

12

.CAP, STAY

15583-18H00

1
Out of stock

13

.REGULATOR

15610-14J00

1

$173.17

In stock

14

.GAUGE ASSY, FUEL LEVEL

34810-08J10

1
Out of stock

15

O-RING

15201-35F00

1

$27.52

In stock

16

BOLT

07120-0612A

5
Out of stock

17

HOSE, FUEL

15810-15H01

1

$65.06

In stock
