2016 Suzuki GSX-S750AL6 Front Caliper Diagram

← All diagrams

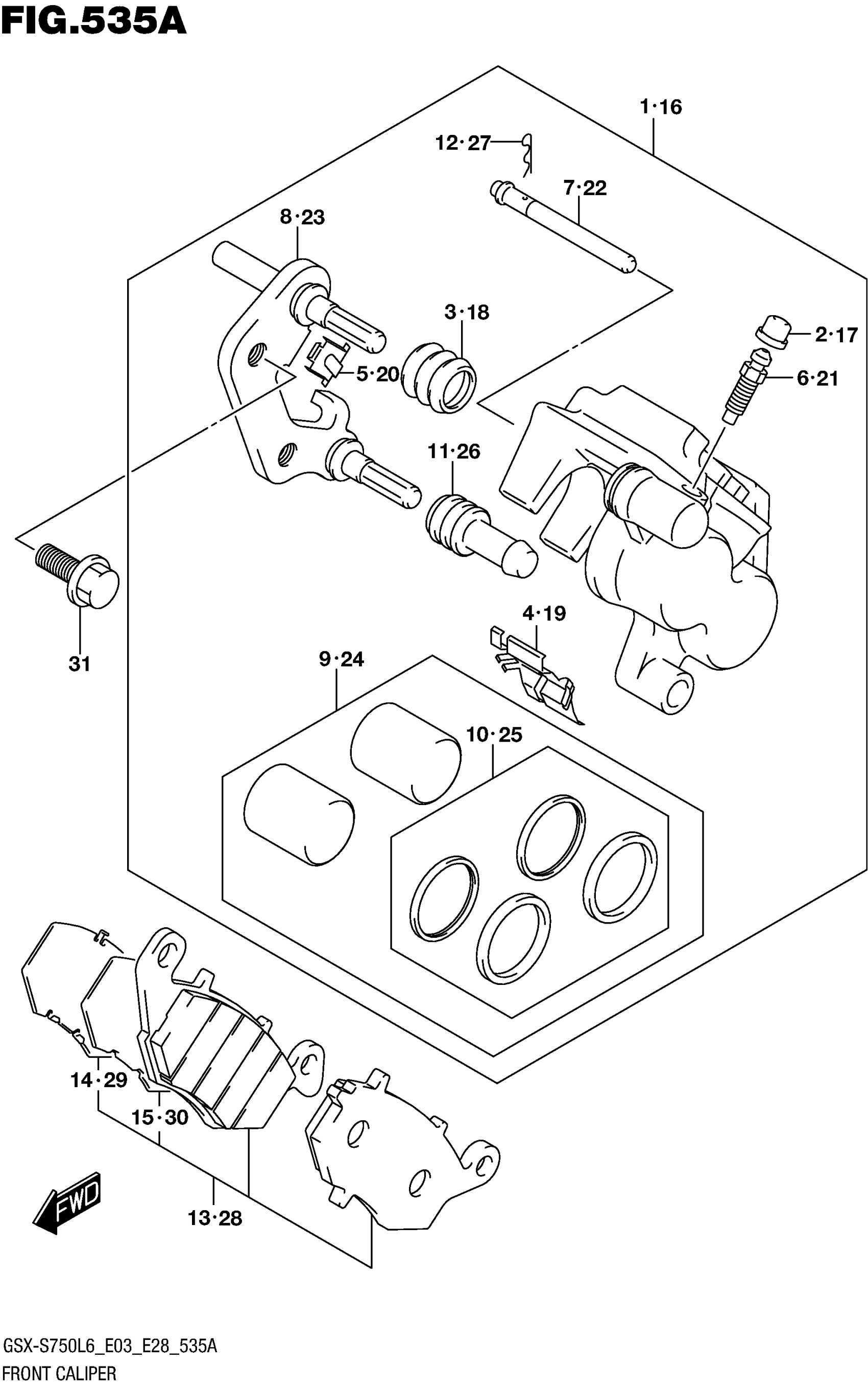

Find the part on the Front Caliper diagram for your 2016 Suzuki GSX-S750AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX-S750AL6 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-33DJ0-999

1
Out of stock

2

.CAP, BLEEDER PLUG

55156-66310

1

$5.15

In stock

3

.BOOT, AXLE

59112-44B00

1

$8.88

In stock

4

.SPRING, PAD RH

59115-33D00

1

$19.78

In stock

5

.GUIDE, PAD

59116-33D00

1

$8.18

In stock

6

.BLEEDER

59121-18410

1

$8.70

In stock

7

.PIN, PAD

59141-44B01

1

$9.32

In stock

8

.CARRIER, CALIPER RH

59150-33D01

1

$123.97

In stock

9

.PISTON SET

59300-01820

1

$101.83

In stock

10

..SEAL SET, PISTON

59100-04851

1

$32.70

In stock

11

.INSULATOR, AXLE

59313-36500

1

$5.97

In stock

12

.CLIP, PAD PIN

69142-45000

1

$4.33

In stock

13

PAD & SHIM SET, RH

59103-33810

1

$101.08

In stock

14

.SHIM, PAD NO.2

59172-33DM0

1

$17.30

In stock

15

.INSULATOR NO.2

69172-01D40

1

$29.25

In stock

16

CALIPER ASSY, FRONT LH

59300-33DJ0-999

1
Out of stock

17

.CAP, BLEEDER PLUG

55156-66310

1

$5.15

In stock

18

.BOOT, AXLE

59112-44B00

1

$8.88

In stock

19

.SPRING, PAD LH

59315-33D00

1

$15.28

In stock

20

.GUIDE, PAD

59116-33D00

1

$8.18

In stock

21

.BLEEDER

59121-18410

1

$8.70

In stock

22

.PIN, PAD

59141-44B01

1

$9.32

In stock

23

.CARRIER, CALIPER LH

59350-33D01

1

$123.97

In stock

24

.PISTON SET

59300-01820

1

$101.83

In stock

25

..SEAL SET, PISTON

59100-04851

1

$32.70

In stock

26

.INSULATOR, AXLE

59313-36500

1

$5.97

In stock

27

.CLIP, PAD PIN

69142-45000

1

$4.33

In stock

28

PAD & SHIM SET, LH

59303-33810

1

$101.08

In stock

29

.SHIM, PAD NO.2

59372-33DM0

1

$17.30

In stock

30

.INSULATOR NO.2

69172-01D40

1

$29.25

In stock

31

BOLT (10X20)

01550-1025A

4

$3.02

In stock
← Front Brake Hose Front Master Cylinder →
