2023 Suzuki GSX-S75032 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2023 Suzuki GSX-S75032, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

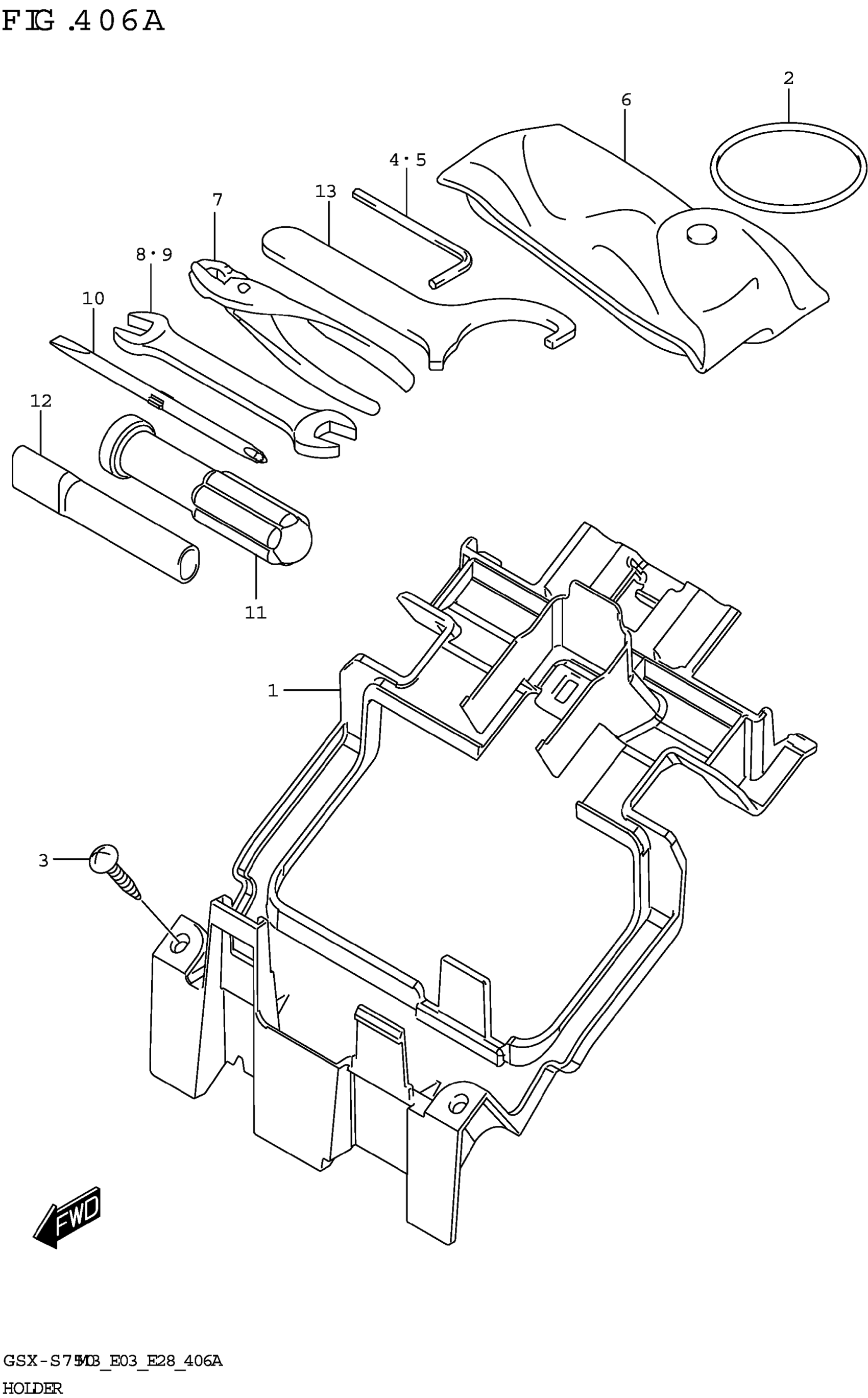

2023 Suzuki GSX-S75032 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,ELECTRIC PARTS

47431-13K00

1
Out of stock

2

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

1
Out of stock

3

SCREW

03541-0512A

2
Out of stock

4

SPANNER,HEXAGON (5)

96514-17K00

1
Out of stock

5

SPANNER,HEXAGON (4)

96514-17K10

1
Out of stock

6

BAG,TOOL

09811-00311

—
Out of stock

7

PLIER

09812-00006

1
Out of stock

8

SPANNER,OPEN (10X12)

09813-00030

1
Out of stock

9

SPANNER,OPEN (14X17)

09813-00031

—
Out of stock

10

DRIVER

09814-00015

1
Out of stock

11

GRIP,DRIVER

09814-00016

1
Out of stock

12

HANDLE

09817-00037

1
Out of stock

13

CLAMP,WRENCH

09822-00003

1
Out of stock
