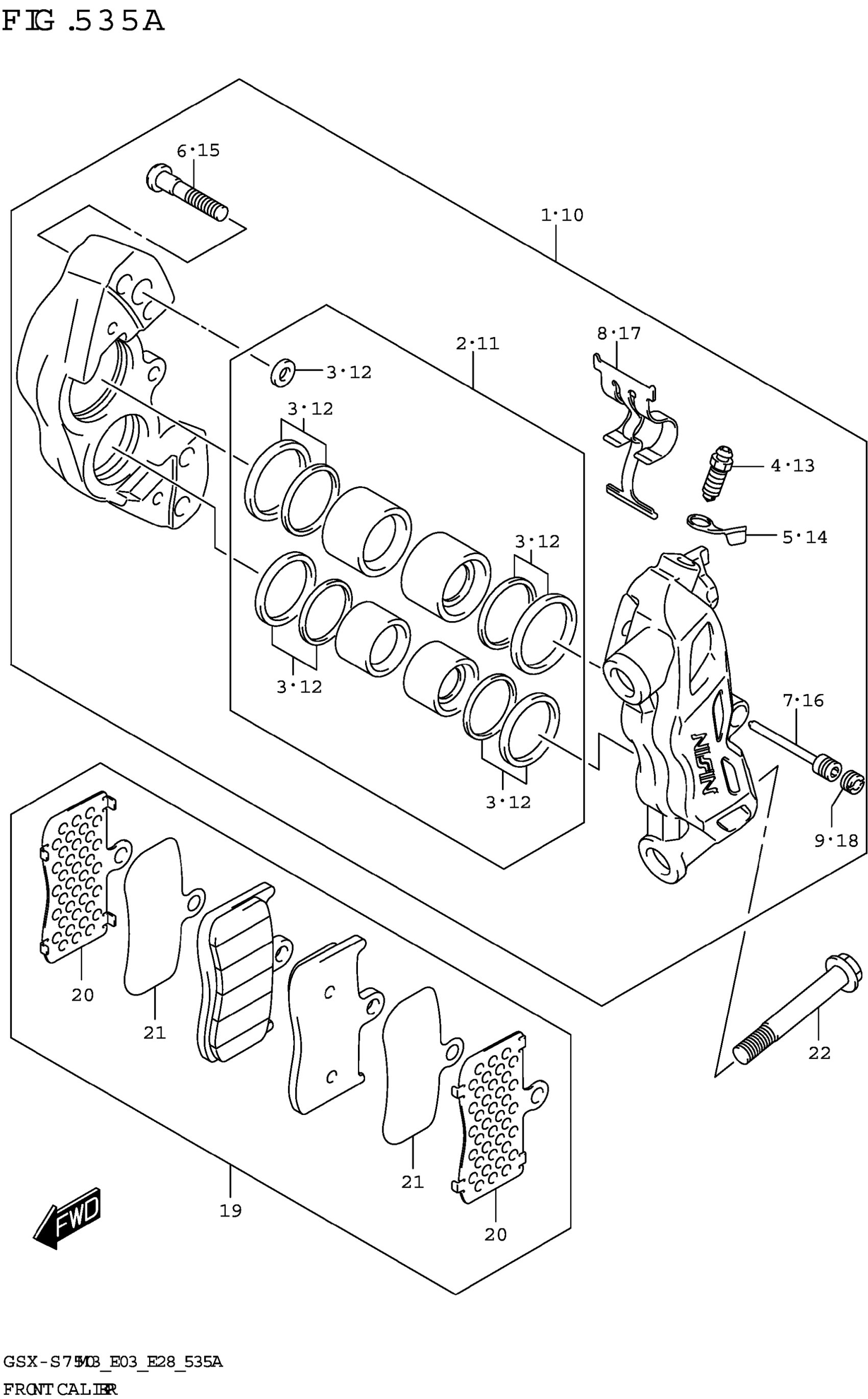

Suzuki GSX-S75032 (2023) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-23H40-999

$420.67

2

.PISTON SET

59100-23860

$66.98

3

..SEAL SET,PISTON

59100-23810

$89.96

4

.BLEEDER

59121-01A00

$7.99

5

.CAP,BLEEDER

59122-01A00

$3.97

6

.BOLT

59145-23H00

Unavailable

7

.PIN

59345-00B20

$13.38

8

.SPRING,PAD

59151-23H00

Unavailable

9

.PLUG,PIN

59146-21E10

$5.62

10

CALIPER ASSY,FRONT,L

59300-23H40-999

$420.67

11

.PISTON SET

59100-23860

$66.98

12

..SEAL SET,PISTON

59100-23810

$89.96

13

.BLEEDER

59121-01A00

$7.99

14

.CAP,BLEEDER

59122-01A00

$3.97

15

.BOLT

59145-23H00

Unavailable

16

.PIN

59345-00B20

$13.38

17

.SPRING,PAD

59151-23H00

Unavailable

18

.PLUG,PIN

59146-21E10

$5.62

19

PAD SET

59100-23852

$51.81

20

.SHIM

59133-23H00

Unavailable

21

.INSULATOR

69132-23H00

Unavailable

22

BOLT (10X70)

09103-10450

$4.42
