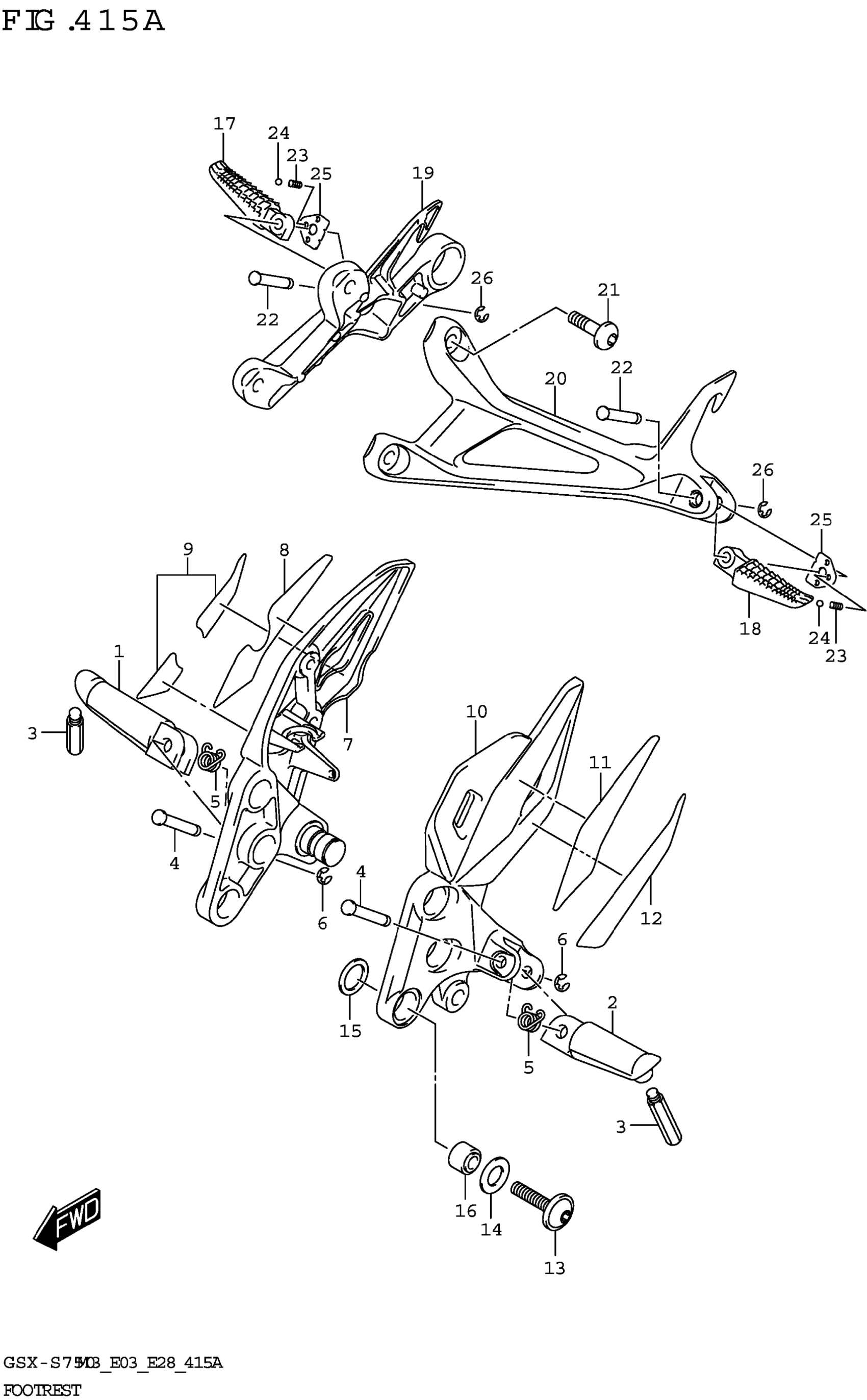

Suzuki GSX-S75032 (2023) FOOTREST Diagram

#

Description
Price

1

BAR,FRONT FOOTREST,R

43516-35F20

$43.52

2

BAR,FRONT FOOTREST,L

43526-35F20

$43.52

3

BOLT, BANK SENSOR

43576-48B60

$13.15

4

PIN

09208-08019

$2.77

5

SPRING, FRONT FOOTREST

43581-13K00

$5.38

6

E-RING

08332-1106A

$1.43

7

BRACKET, FRONT FOOTREST RH

43510-08J10

$180.48

8

TAPE, FR FOOTREST NO.1 RH

43571-13K00

$15.35

9

TAPE, FR FOOTREST NO.2 RH

43573-13K00

$15.35

10

BRACKET, FRONT FOOTREST LH

43521-08J10

$168.05

11

TAPE, FR FOOTREST NO.1 LH

43572-13K00

$15.35

12

TAPE, FR FOOTREST NO.2 LH

43574-13K00

$15.35

13

BOLT (8X30)

09106-08147

$5.72

14

WASHER (13.7X24X2)

09161-13004

$3.58

15

WASHER (17.2X24X2.2)

09161-17002

$5.00

16

BUSH (8.4X20X16)

09319-08045

$18.21

17

BAR,PILLION FOOTREST,R

43611-37H30

$57.52

18

BAR,PILLION FOOTREST,L

43621-37H30

$62.92

19

BRACKET,PILLION FOOTREST RH ( | LACK)

43811-08J00-YAP

$188.85

20

BRACKET,PILLION FOOTREST LH ( | LACK)

43821-08J00-YAP

$188.85

21

BOLT (8X23)

09106-08186

$3.08

22

.PIN

09208-08020

$3.62

23

SPRING

09440-05003

$1.48

24

BALL

06111-07004

$1.22

25

PLATE,PILLION FOOTREST

43816-01H20

$7.43

26

E-RING

08332-1106A

$1.43
