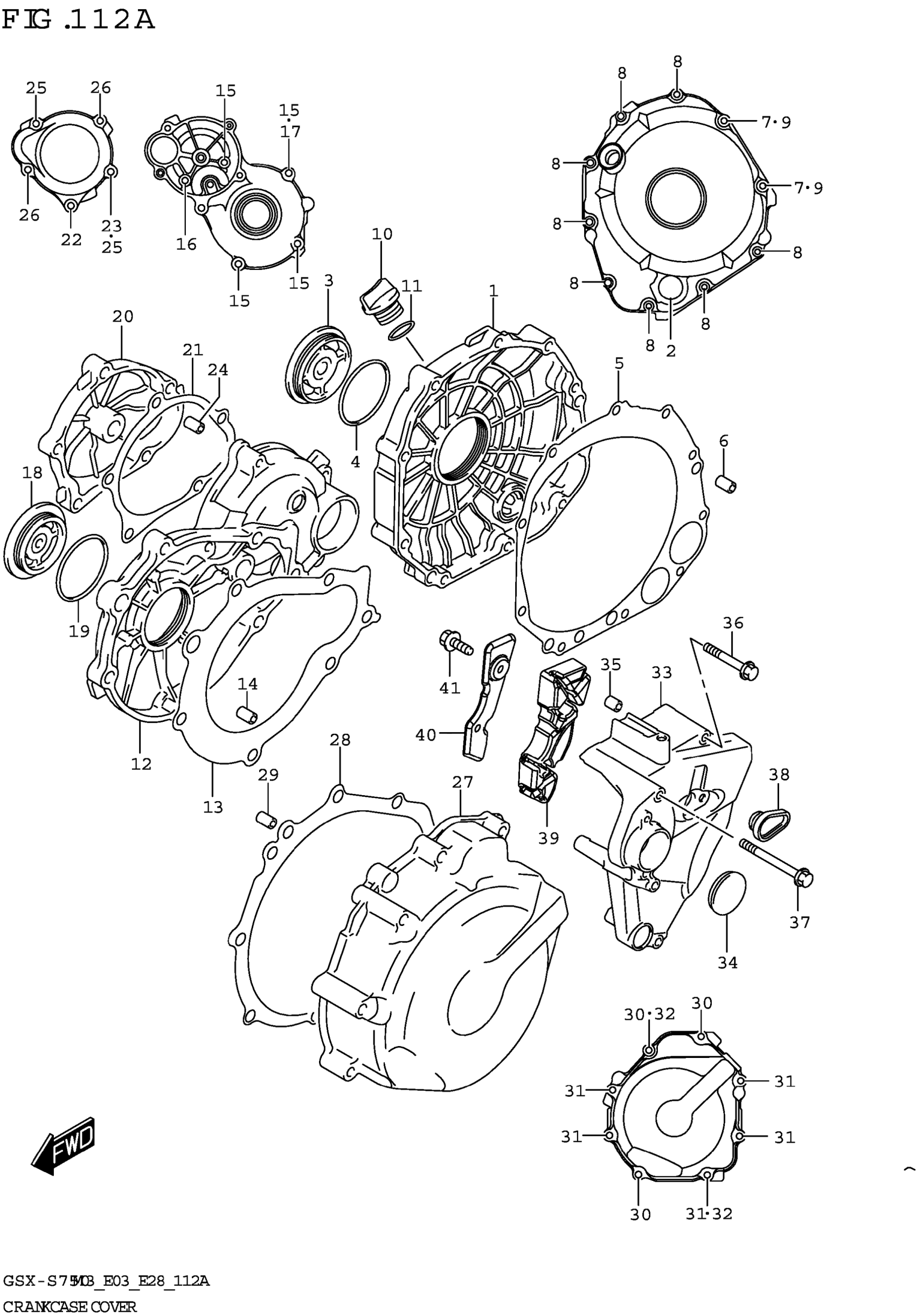

Suzuki GSX-S75032 (2023) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44G10

$287.32

2

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$22.92

4

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.21

5

.GASKET, CLUTCH COVER

11482-40F10

$14.36

6

PIN

04211-09189

$1.64

7

GASKET (5.8X13X1.2)

09168-06023

$2.01

8

BOLT (6X30)

09103-06529

$1.83

9

BOLT (6X40)

09103-06531

$2.58

10

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

11

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

12

COVER,STARTER CLUTCH

11381-35F10

$287.45

13

.GASKET, STARTER CLUTCH COVER

11491-33E02

$7.99

14

PIN (8.5X18X2.3)

04211-09149

$1.64

15

BOLT (6X25)

09103-06528

$1.78

16

BOLT (L:35)

09103-06530

$1.68

17

GASKET (5.8X13X1.2)

09168-06023

$2.01

18

PLUG (36X10)

09259-36021

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

CAP,STRAINER IDLE GEAR

11382-33E10

$71.42

21

.GASKET,START IDLE GR CAP

11492-33E00

$6.61

22

BOLT (6X55)

09103-06534

$2.88

23

GASKET (5.8X13X1.2)

09168-06023

$2.01

24

PIN (8.5X18X2.3)

04211-09149

$1.64

25

BOLT (6X25)

09103-06528

$1.78

26

BOLT (L:35)

09103-06530

$1.68

27

COVER,MAGNETO

11351-18G20

$132.18

28

.GASKET, MAGNETO COVER

11483-18G00

$10.13

29

PIN (8.5X18X2.3)

04211-09149

$1.64

30

BOLT (6X30)

09103-06529

$1.83

31

BOLT (L:45)

09103-06532

$2.27

32

GASKET (5.8X13X1.2)

09168-06023

$2.01

33

COVER, ENGINE SPROCKET

11361-08J10

$137.57

34

CAP (OD:36)

09250-30003

$3.52

35

PIN

04211-09129

$1.64

36

BOLT (L:65)

09103-06536

$3.30

37

BOLT (6X95)

09103-06541

$4.08

38

CAP,ENG SPROCKET COVER HOLE

11362-04K01

Unavailable

39

DAMPER, ENGINE SPROCKET COVER

11362-13K00

$20.85

40

PLATE, ENGINE SPROCKET COVER

11363-13K00

$11.15

41

BOLT (6X10)

09103-06188

$3.17
