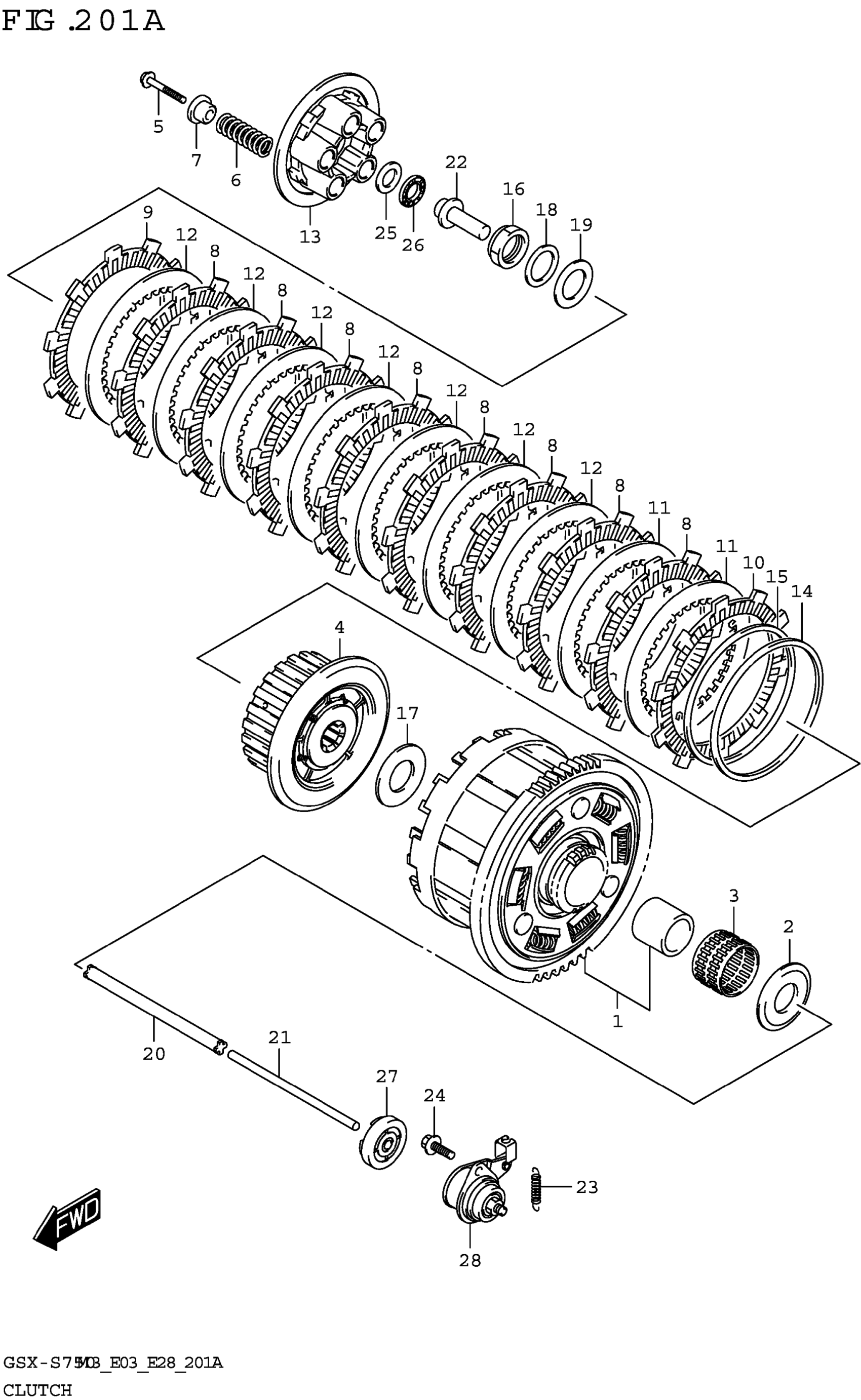

Suzuki GSX-S75032 (2023) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRIMARY DRIVEN (NT: | 8)

21200-35830

$567.03

2

WASHER (25X54X2.4)

09160-25073

$15.75

3

BEARING (35X40X29.8)

09263-35036

$29.04

4

HUB,CLUTCH SLEEVE

21410-35F20

$150.72

5

BOLT,CLUTCH SPRING

21482-40F00

$4.05

6

SPRING,CLUTCH

21413-08J00

$10.67

7

WASHER

21414-29F00

$5.88

8

PLATE,CLUTCH DRIVE NO.1 (T:3. | )

21441-31EA0

$20.94

9

PLATE,CLUTCH DRIVE (T:3.0)

21441-31E60

$21.47

10

PLATE,CLUTCH DRIVE (T:3.0)

21442-31E21

$42.82

11

PLATE,CLUTCH DRIVEN,NO.1 (T:1 | 6)

21451-31E00

$9.64

12

PLATE,CLUTCH DRIVEN NO.2 (T:2 | 0)

21451-31E10

$10.33

13

DISK,CLUTCH PRESSURE

21462-35F00

$69.27

14

SEAT,CLUTCH PLATE WAVE WASHER

21471-31E20

$13.38

15

WASHER,CLUTCH PLATE

21472-39F00

$19.68

16

NUT

09159-24010

$11.92

17

.WASHER (25X50X2.5)

09160-25056

$10.63

18

WASHER (24.2X35X2.7)

09164-24008

$5.00

19

SHIM (25X38X1)

09181-25223

$2.90

20

ROD,CLUTCH (L:161)

23110-27A00

$19.86

21

ROD,CLUTCH PUSH,L

23111-35F00

$12.18

22

PIECE,CLUTCH PUSH

23121-31E00

$22.52

23

SPRING

09443-09051

$3.38

24

BOLT

01550-0616A

$1.97

25

WASHER (15.5X28X1)

09160-15045

$3.52

26

BEARING (15X28X2)

09263-15003

$7.49

27

SEAL,OIL (6X34X10.5)

09283-06010

$15.16

28

SCREW ASSY,CLUTCH RELEASE

23200-35F01

$62.26
