2023 Suzuki GSX-S75032 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2023 Suzuki GSX-S75032, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

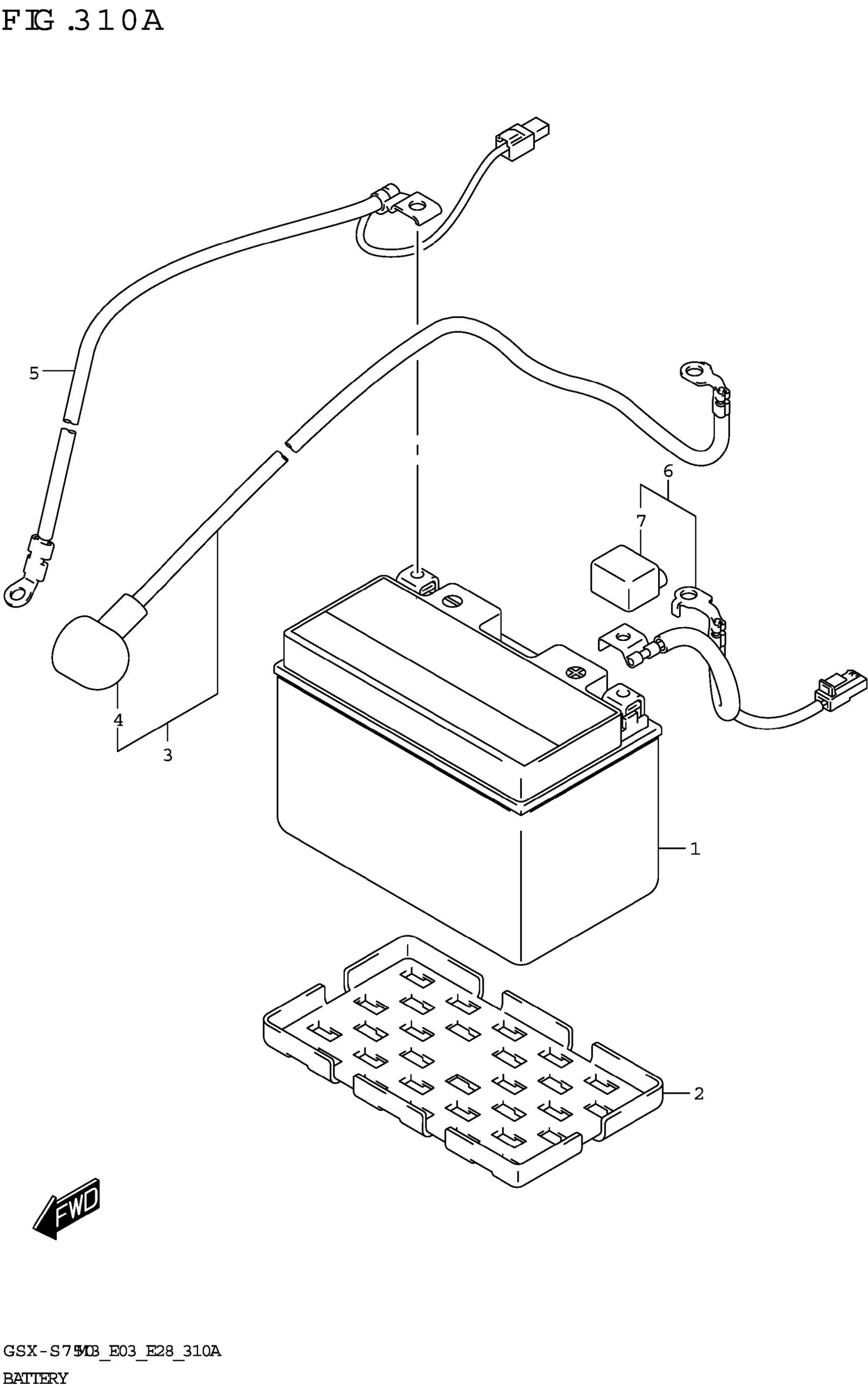

2023 Suzuki GSX-S75032 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (FT12A-BS,12V10AH) | H) This part replaces 33630-14G02.

33610-14G11

1
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

WIRE, STARTER MOTOR LEAD

33810-13K00

1
Out of stock

4

.CAP,STARTER MOTOR

33624-18H10

1
Out of stock

5

WIRE,BATTERY MINUS LEAD

33860-08J00

1
Out of stock

6

WIRE, BATTERY PLUS LEAD

33820-13K10

1
Out of stock

7

.CAP,BATTERY PLUS

33624-16G00

1
Out of stock
