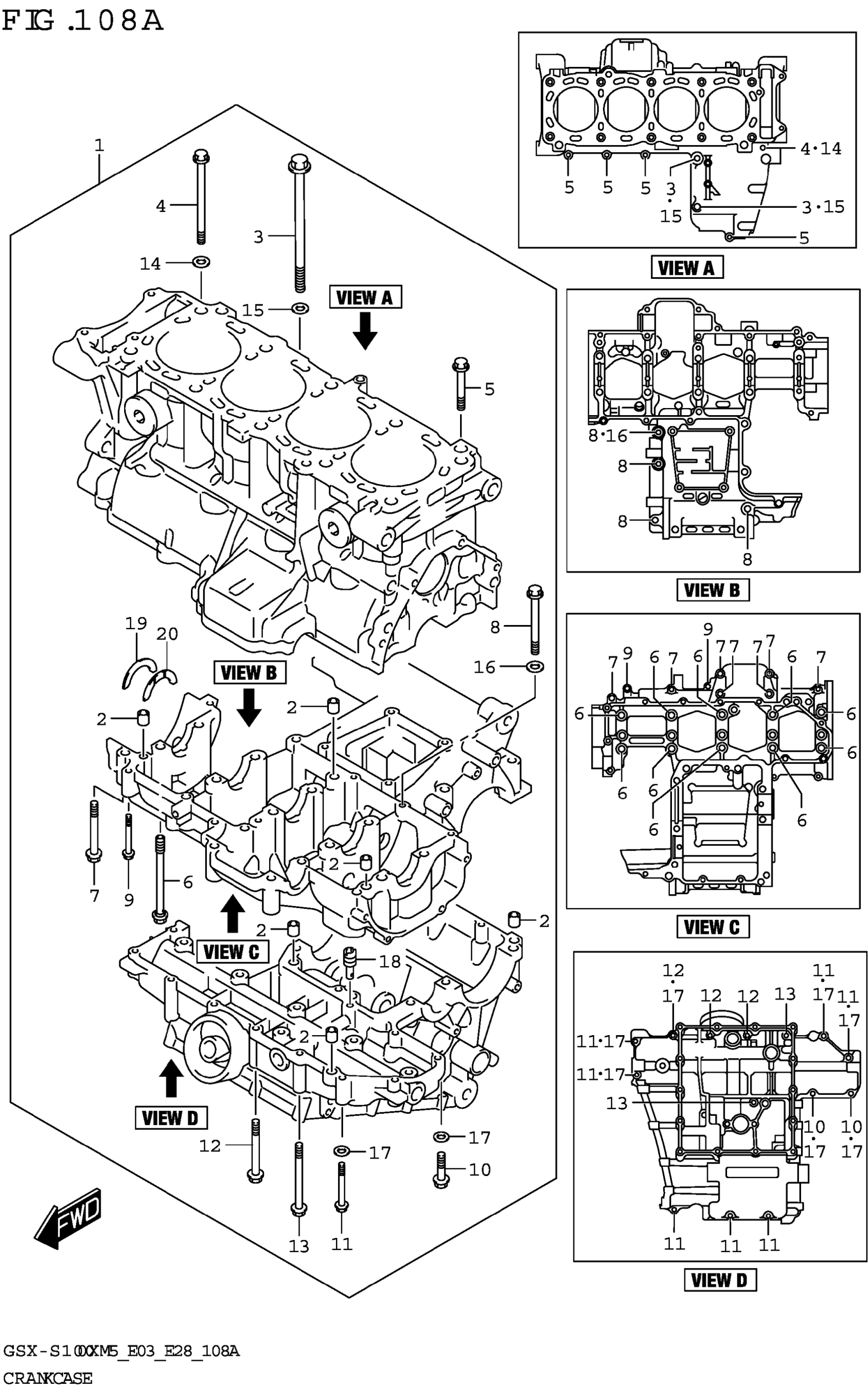

Suzuki GSX-S1000XRREM5 (2025) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-04860

$3,642.75

2

PIN,CRANKCASE

11319-33E50

$5.01

3

.BOLT (8X120)

09106-08198

Unavailable

4

.BOLT

01547-0680A

$3.58

5

BOLT

01547-0640A

$2.31

6

.BOLT (9X95)

09103-09012

$7.90

7

.BOLT (8X55)

09103-08339

$3.19

8

.BOLT

07120-0865A

$5.17

9

BOLT

01547-0640A

$2.31

10

BOLT

01547-0630A

$2.31

11

BOLT

01547-0640A

$2.31

12

BOLT

01547-0660A

$2.80

13

.BOLT

01547-0670A

$2.80

14

GASKET (5.8X13X1.2)

09168-06023

$2.01

15

GASKET (8.2X14X1)

09168-08016

$1.64

16

GASKET (8.2X14X1)

09168-08016

$1.64

17

GASKET (5.8X13X1.2)

09168-06023

$2.01

18

JET (#140)

09493-28012

$18.33

19

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

20-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$13.05

20-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$12.82

20-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$13.30

20-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

20-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$13.30

20-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$13.30

20-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.09
