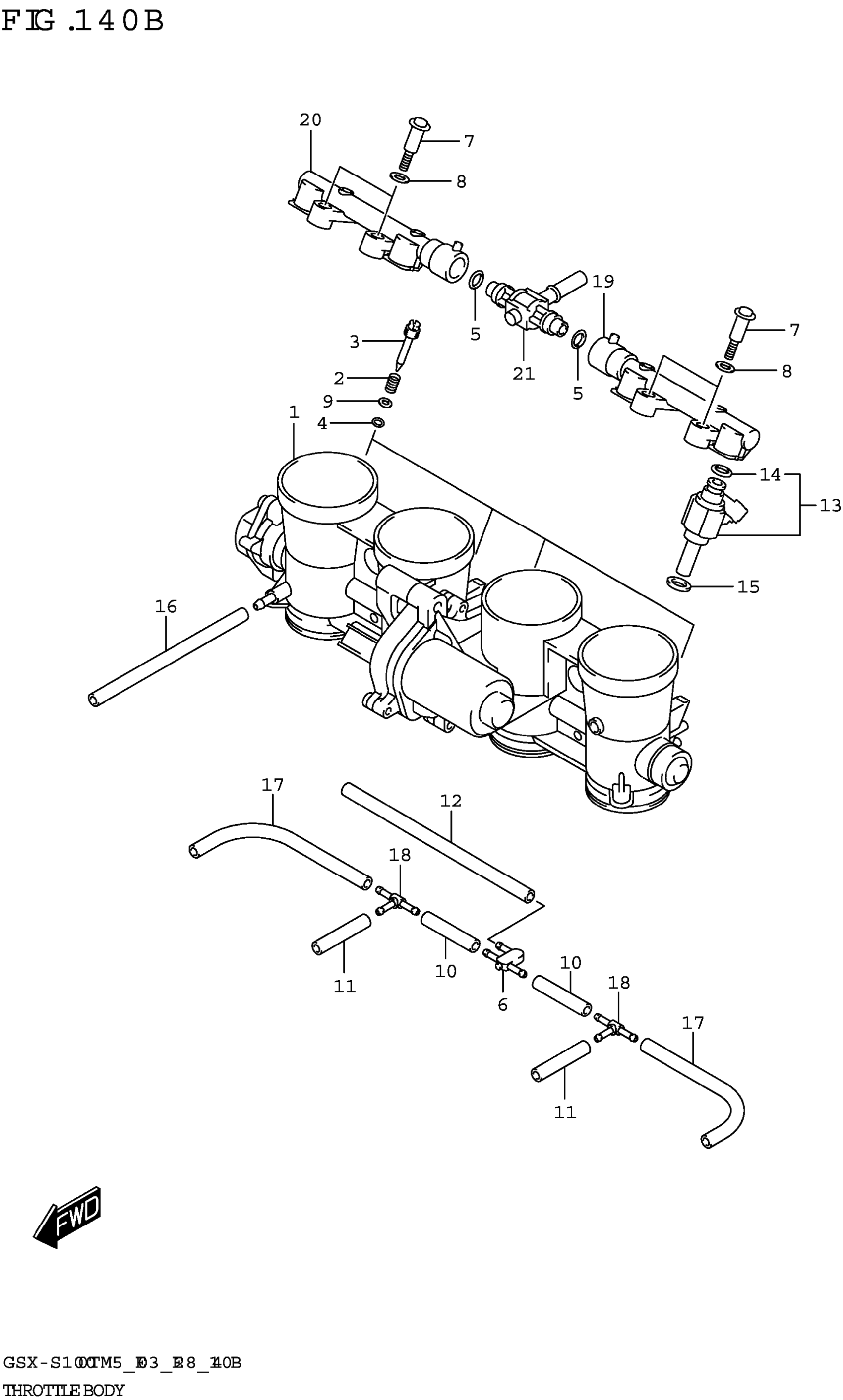

Find the part on the Throttle Body diagram for your 2025 Suzuki GSX-S1000TRQM5(E03), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX-S1000TRQM5(E03) Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, THROTTLE

13405-48K10

1
Out of stock

2

SPRING,THROTTLE SCREW

13268-48700

4
Out of stock

3

SCREW

13269-33E00

4
Out of stock

4

O-RING

13295-29901

4
Out of stock

5

O-RING

13374-32G00

1
Out of stock

6

JOINT

13471-18H00

4
Out of stock

7

SCREW

13601-29G00

4
Out of stock

8

PACKING

13602-29G01

4
Out of stock

9

WASHER

13606-47A00

4
Out of stock

10

HOSE (L:425)

13683-10F61

2
Out of stock

11

HOSE

13683-07F01

2
Out of stock

12

HOSE

13683-07F11

1
Out of stock

13

INJECTOR ASSY

15710-04K00

4
Out of stock

14

.O-RING

15717-58B00

4
Out of stock

15

SEAL

15722-14J00

4
Out of stock

16

.HOSE (3X7X600) | CUT AS REQUIRED

09355-30001-600

1
Out of stock

17

HOSE (3.2X7.4X70)

13681-39F00-070

2
Out of stock

18

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

2
Out of stock

19

DELIVERY PIPE

13471-10L00

1
Out of stock

20

DELIVERY PIPE

13472-10L00

1
Out of stock

21

NIPPLE ASSY

13473-17K00

1
Out of stock
