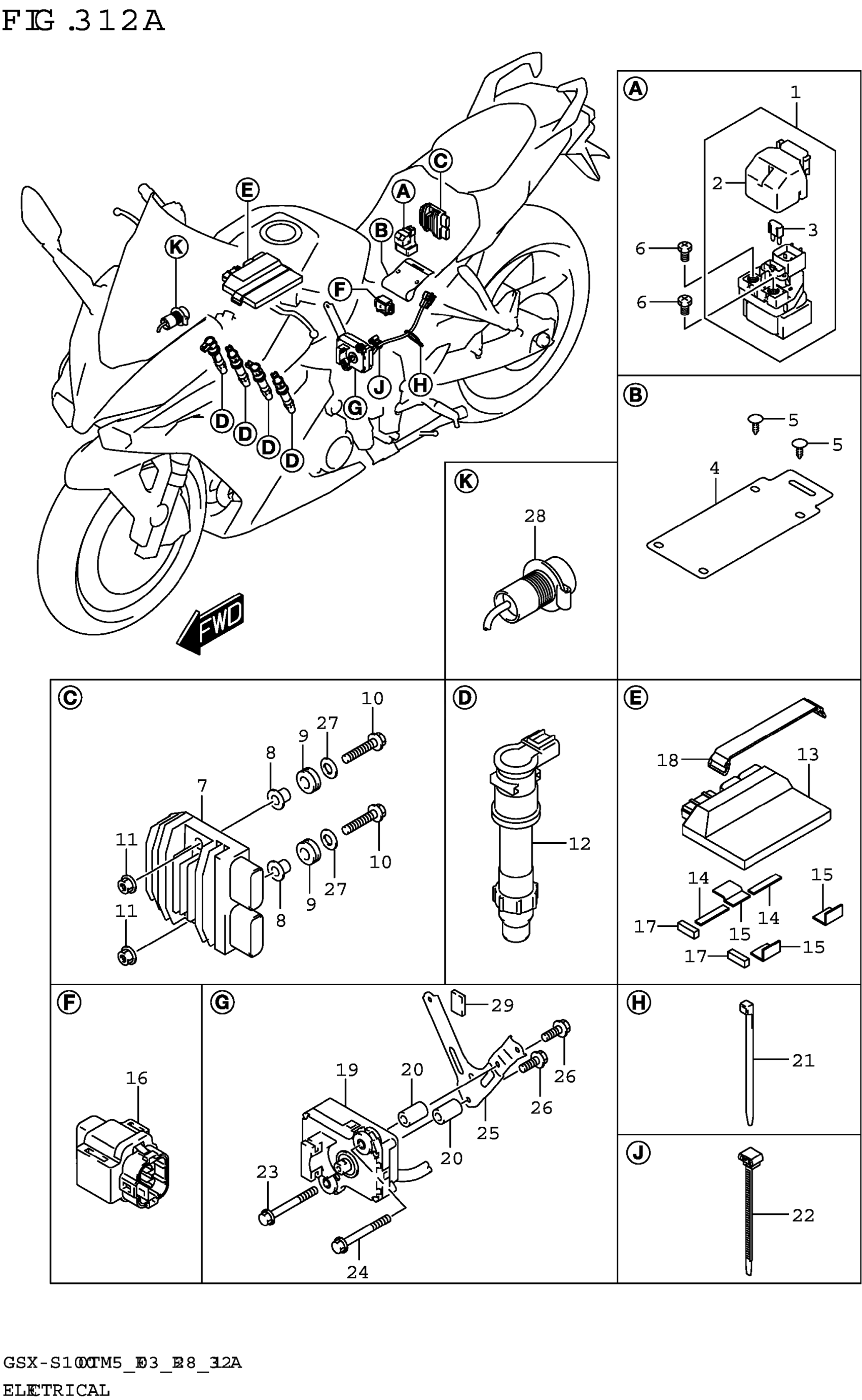

Find the part on the Electrical diagram for your 2025 Suzuki GSX-S1000TRQM5(E03), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX-S1000TRQM5(E03) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

1
Out of stock

2

.COVER

31861-38G00

1
Out of stock

3

.FUSE (30A)

09481-30501

2
Out of stock

4

PROTECTOR, LEAD WIRE

33972-48K00

1
Out of stock

5

CLIP (BLACK)

09409-10303-5ES

—
Out of stock

6

SCREW (6X8)

09128-06013

1
Out of stock

7

RECTIFIER ASSY

32800-26J10

1
Out of stock

8

SPACER (6.2X8.4X10.9)

09180-06331

2
Out of stock

9

RUBBER,INERTIAL SENSOR MTG

55763-17K00

2
Out of stock

10

BOLT

01550-0635A

2
Out of stock

11

NUT (6X12)

08316-1006A

2
Out of stock

12

COIL ASSY, IGNITION

33410-47H00

4
Out of stock

13

HARDWARE, FI CONTROL UNIT

32910-48K00

1
Out of stock

14

CUSHION,FI CONTROL UNIT

33652-23H11

2
Out of stock

15

CUSHION

33652-36101

3
Out of stock

16

SENSOR ASSY, FUEL CUT

33960-28K01

1
Out of stock

17

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

2
Out of stock

18

BAND

09462-00015

1
Out of stock

19

ACTUATOR ASSY, EXHAUST CONTRO

33970-48G02

1
Out of stock

20

SPACER (6.2X14.5X26)

09180-06345

2
Out of stock

21

CLAMP

09403-10319

1
Out of stock

22

CLAMP

09407-14413

1
Out of stock

23

BOLT

01550-0650A

1
Out of stock

24

BOLT

01550-0655A

—
Out of stock

25

BRACKET, ACTUATOR

47420-04K00

1
Out of stock

26

BOLT

01547-0616A

2
Out of stock

27

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

28

SOCKET, USB

39105-48K00

1
Out of stock

29

CUSHION

65742-48K00

1
Out of stock
