Description

Price

1

RADIATOR, WATER

17710-48K00

$386.63

2

BOLT (6X25)

09118-06097

$2.57

3

SPACER (6.5X10X12)

09180-06290

$2.09

4

CUSHION

09320-10051

$2.91

5

BRACKET, RADIATOR LOWER

17760-07L00

$52.60

6

BOLT

01550-0612A

$2.01

7

SHIELD, RADIATOR HEAT

17771-48K00

$55.55

8

FAN ASSY, RADIATOR

17800-48K00

$496.80

9

BOLT,FAN ASSY

17711-14G00

$4.62

10

NUT,RADIATOR FAN

17802-14F00

$3.33

11

CAP,RADIATOR (1.1)

17730-14G00

$40.97

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

13

SHIELD, RDTR HEAT RH

17772-48K00

$33.27

14

CLIP

09409-06315

$1.70

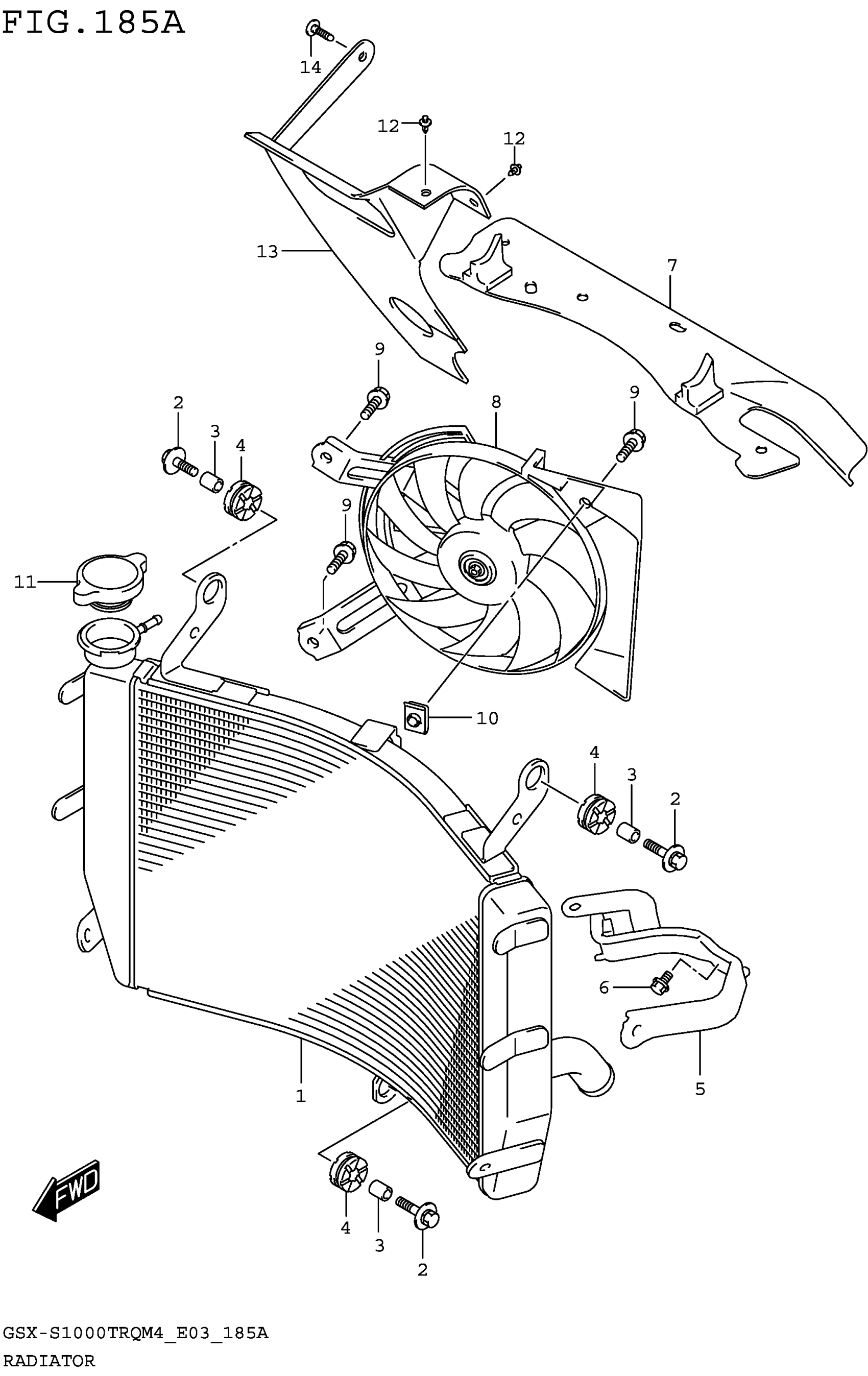

Suzuki GSX-S1000TRQM4 (2024) RADIATOR Diagram
