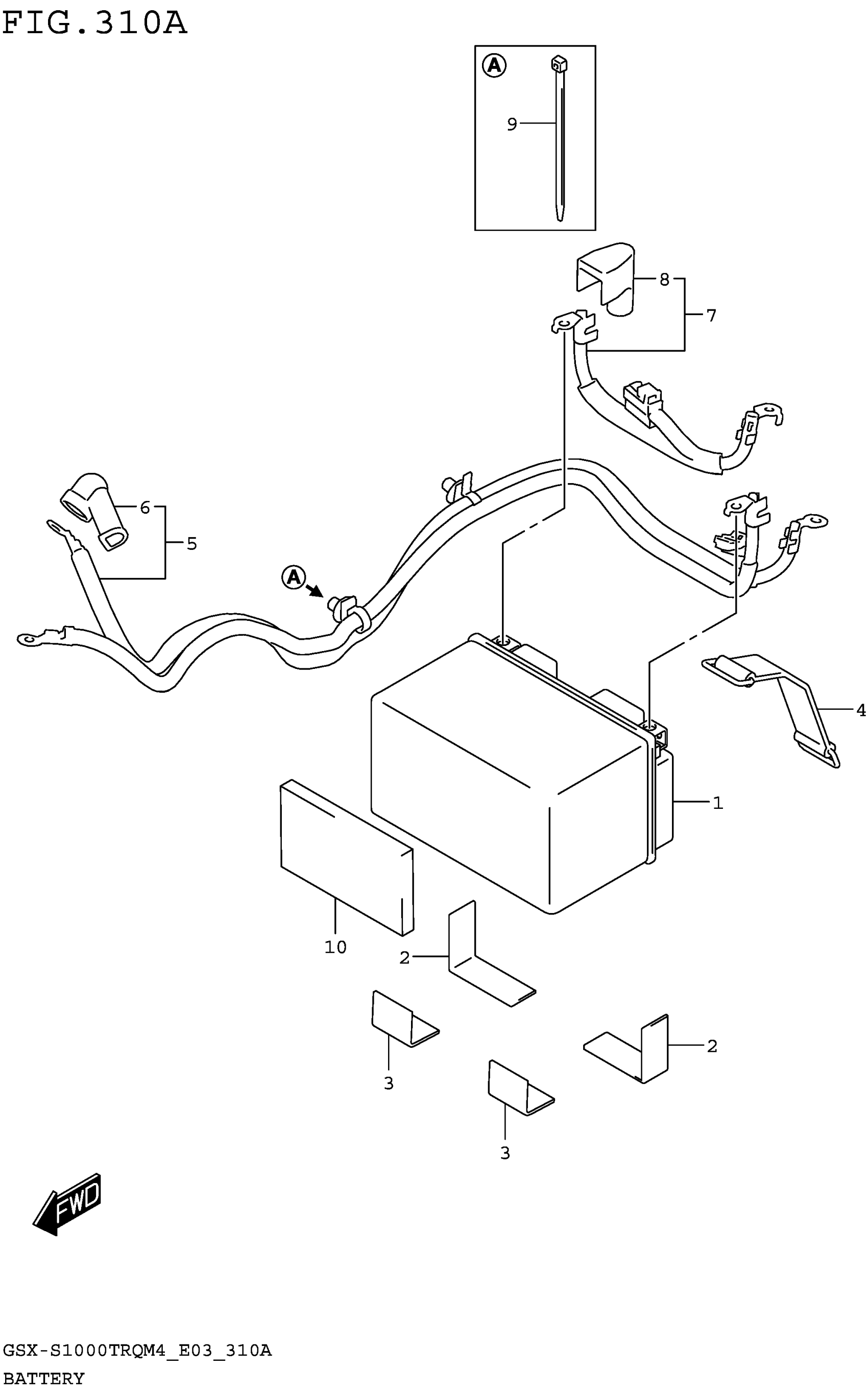

Suzuki GSX-S1000TRQM4 (2024) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | (FT12A-BS,12V,10AH) This part replaces 33630-14G02.

33610-14G11

$142.85

2

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.41

3

CUSHION (50X42X2.0)

51553-15D40

$9.53

4

BAND

09462-00046

$3.44

5

WIRE, STARTER MOTOR LEAD

33810-48KA0

$72.87

6

.CAP, STARTER MOTOR TERMINAL

31861-04K00

Unavailable

7

WIRE, BATTERY PLUS LEAD

33820-48KA0

$30.88

8

.CAP,BATTERY PLUS TERMINAL

33624-04K00

$9.17

9

CLAMP (L:145)

09407-14407

$2.84

10

CUSHION, BATTERY

33652-48K10

$8.67
