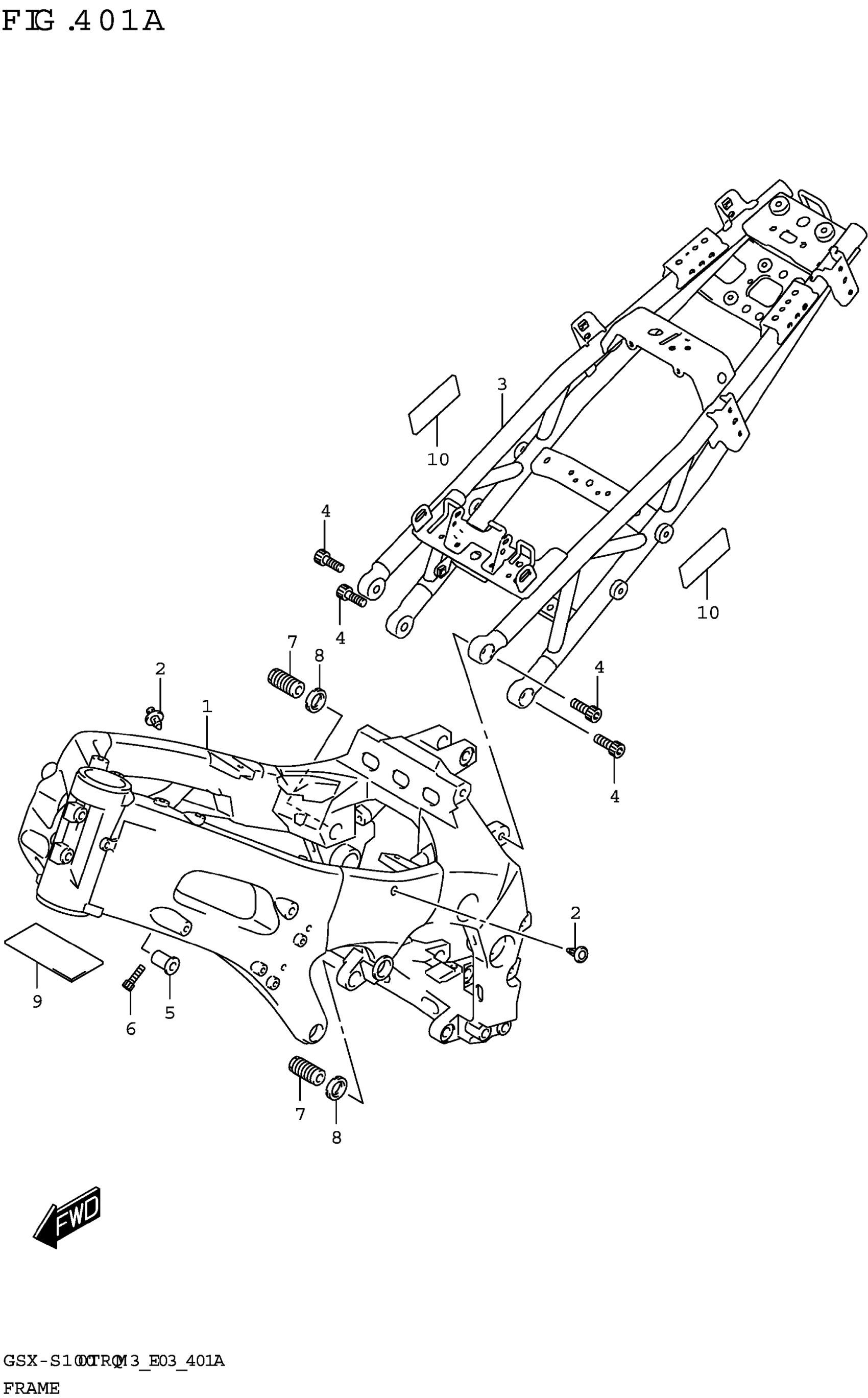

Suzuki GSX-S1000TRQM3 (2023) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-04K10-YAP

$2,928.10

2

PLUG, TANK RAIL

43585-01H01

$4.37

3

RAIL, SEAT (SILVER)

41200-48K00-YMC

$713.53

4

BOLT

07120-1030A

$3.48

5

SPACER,ENGINE MOUNTING

41911-40F01

$21.23

6

BOLT (8X32)

09106-08185

$2.75

7

BOLT, CRANK CASE ADJUST LWR

41921-16G01

$26.50

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable

10

PROTECTOR (30X70)

94474-22D00

Unavailable
