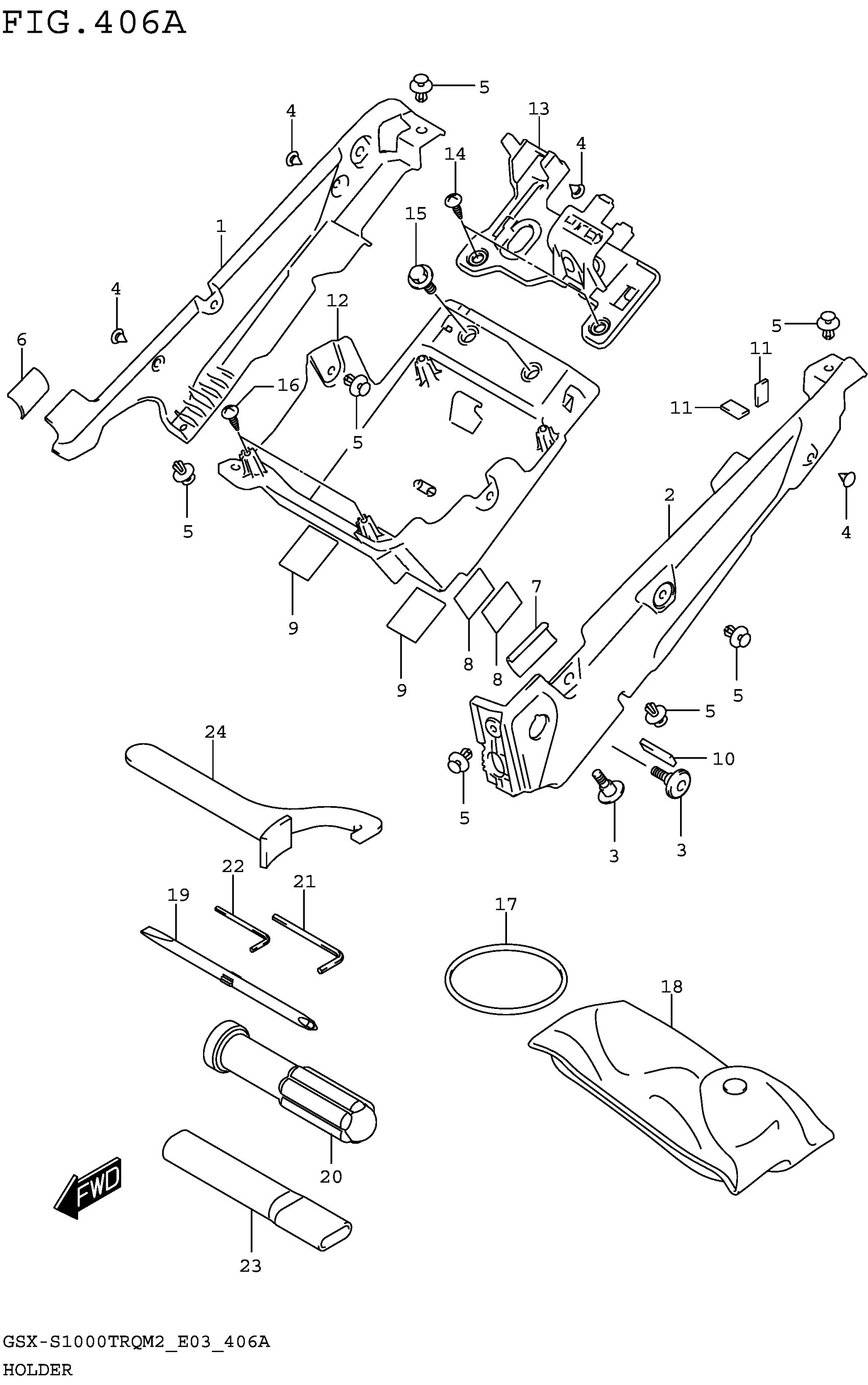

Find the part on the Holder diagram for your 2022 Suzuki GSX-S1000TRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000TRQM2 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, BATTERY HOLDER RH

47412-48K00

1
Out of stock

2

COVER, BATTERY HOLDER LH

47413-48K00

1
Out of stock

3

SCREW (6X16)

09139-06221

2
Out of stock

4

PLUG (OD:10)

09250-06017

4
Out of stock

5

CLIP

09409-06328

7
Out of stock

6

CUSHION This part replaces 44281-29C00.

63191-25C00

1
Out of stock

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

1
Out of stock

8

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

2
Out of stock

9

PROTECTOR,BATTERY (30X40X1.0)

33652-13G00

2
Out of stock

10

CUSHION, BATTERY HOLDER COVER

47437-48K00

1
Out of stock

11

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

2
Out of stock

12

HOLDER, BATTERY

47411-48K00

1
Out of stock

13

HOLDER, ELECTRIC PARTS

47414-48K00

1
Out of stock

14

SCREW

03541-0516A

2
Out of stock

15

BOLT (6X17.8)

09111-06072

2
Out of stock

16

SCREW

03541-0616B

2
Out of stock

17

O-RING (D:3.5,ID:56.5)

09280-57003

1
Out of stock

18

BAG,TOOL

09811-00311

—
Out of stock

19

DRIVER

09814-00015

1
Out of stock

20

GRIP,DRIVER

09814-00016

1
Out of stock

21

SPANNER,HEXAGON (5)

96514-17K00

1
Out of stock

22

SPANNER,HEXAGON (4)

96514-17K10

1
Out of stock

23

HANDLE

09817-00037

1
Out of stock

24

CLAMP,WRENCH

09822-00005

1
Out of stock
