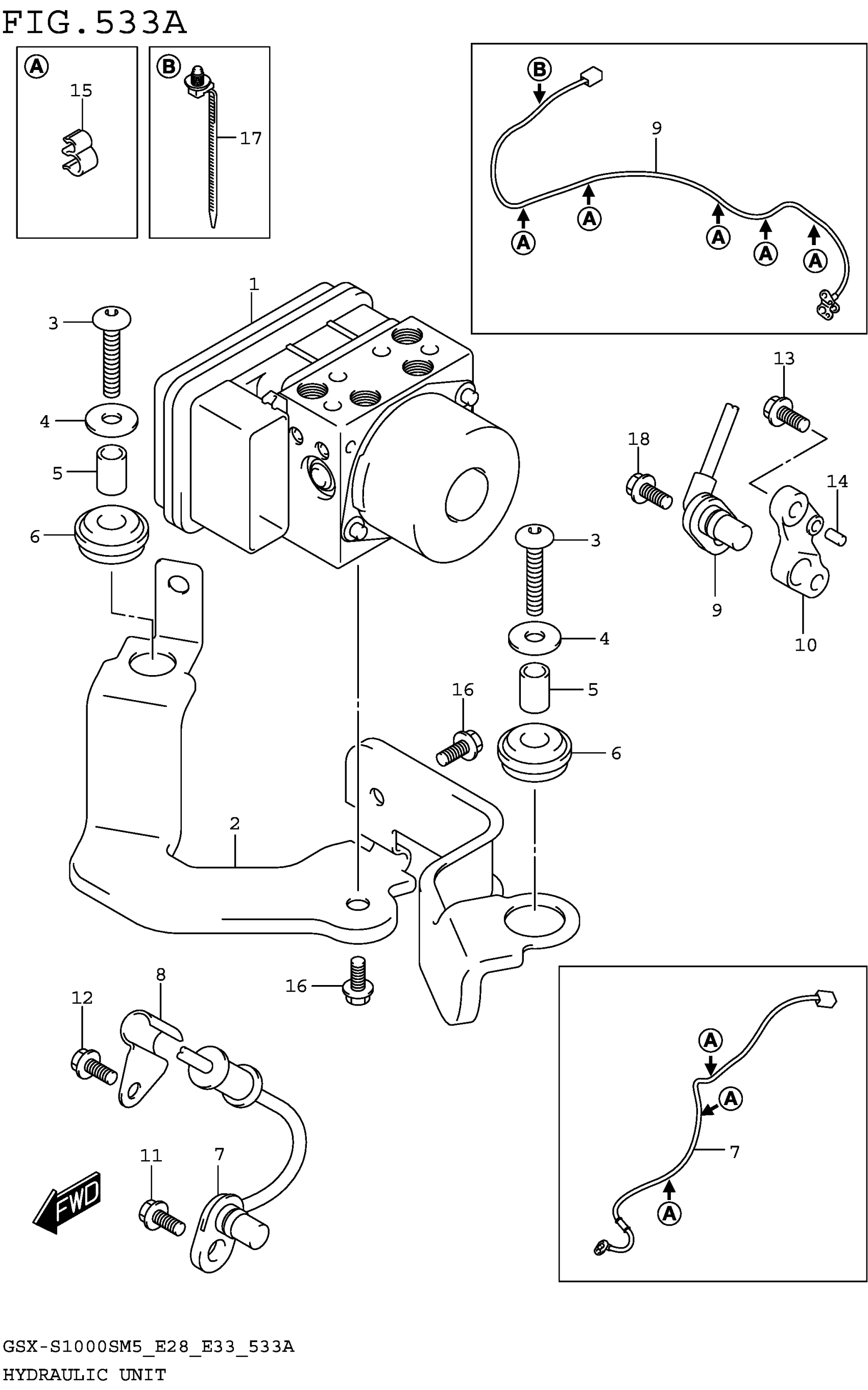

Suzuki GSX-S1000SRQM5 (2025) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-07L00

$1,099.42

2

HOLDER, HYDR UNIT ABS

55660-04K00

Unavailable

3

SCREW (6X30)

09139-06065-XC0

$2.80

4

.WASHER (6.5X20X1.6)

09160-06088

$1.67

5

SPACER,HYDR UNIT MTG (#05)

55662-10G00

Unavailable

6

RUBBER, HYDR UNIT MTG

55663-10G10

Unavailable

7

SENSOR, FR WHEEL ABS

55710-04K10

$244.62

8

CLAMP,ABS SENSOR FR

55731-23H00

Unavailable

9

SENSOR, RR WHEEL ABS

65710-04K20

$99.57

10

BRACKET, SPEED SENSOR RR

65721-04K00

$21.95

11

BOLT

09103-06550

$2.58

12

BOLT

09103-06550

$2.58

13

BOLT (6X16)

09103-06240

$3.45

14

PIN (4X13.8)

04221-04089

$1.10

15

CLAMP

09408-00266

$2.69

16

BOLT

01547-0610A

$1.47

17

CLAMP (L:170)

09407-17403

$4.63

18

BOLT

01547-0612B

$1.22
