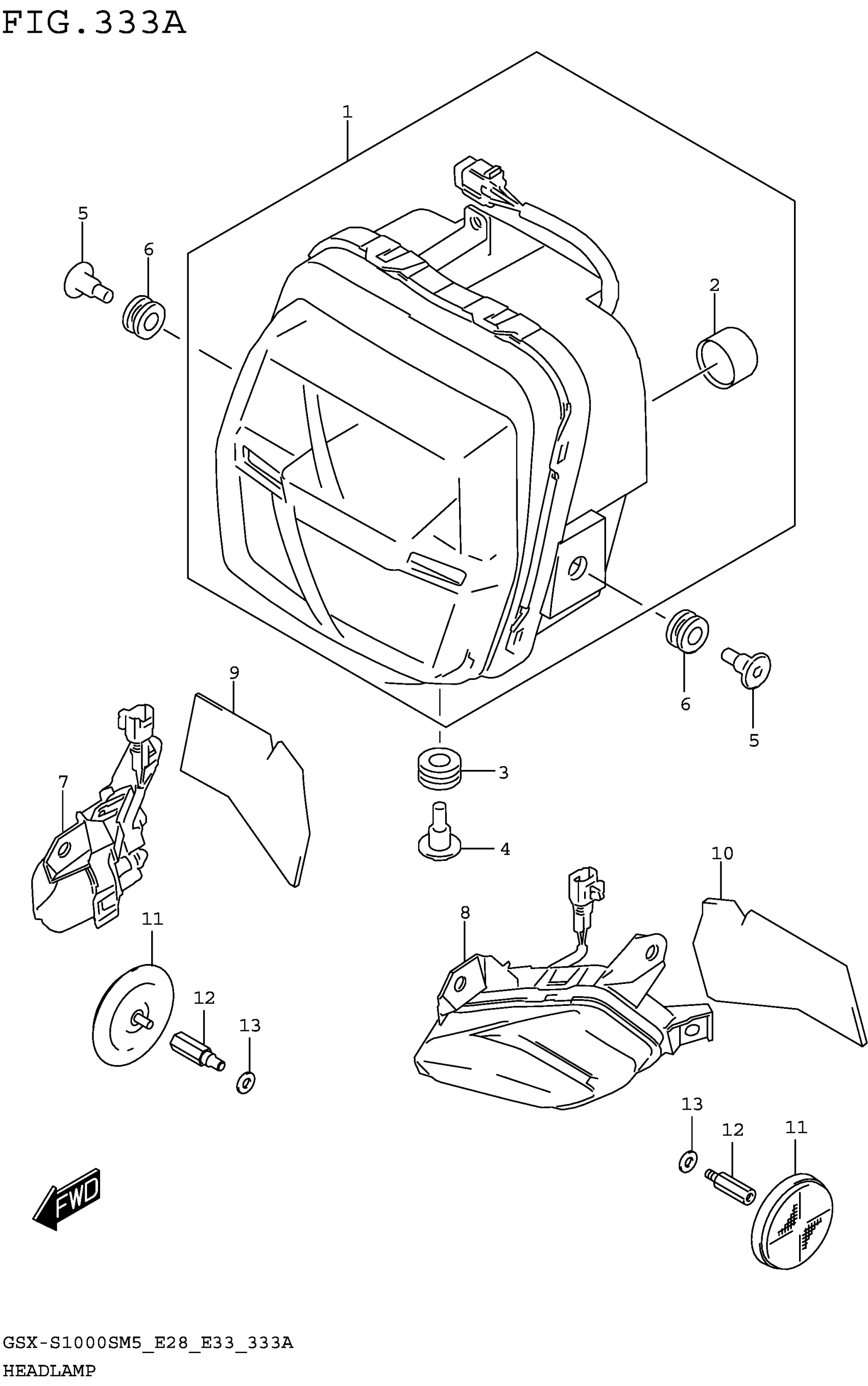

Suzuki GSX-S1000SRQM5 (2025) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-07L02

Unavailable

2

.CAP

35529-77R00

$11.22

3

CUSHION (10X20X10)

09320-10078

$3.81

4

SCREW (6X22.5)

09139-06118

$3.05

5

SCREW (6X20)

09139-06206

$2.99

6

CUSHION (9X18X10)

09320-09501

$2.06

7

LAMP ASSY, FRONT POSITION RH

36101-07L00

$290.75

8

LAMP ASSY, FRONT POSITION LH

36102-07L00

$290.75

9

CUSHION, POSITION LAMP RH

36121-07L00

$9.40

10

CUSHION, POSITION LAMP LH

36122-07L00

$9.40

11

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

12

BOLT

09119-06109

$14.43

13

WASHER (8.5X18X1.0)

09160-08043

$1.81
