2024 Suzuki GSX-S1000SRQM4 Lock SET Diagram

← All diagrams

Find the part on the Lock SET diagram for your 2024 Suzuki GSX-S1000SRQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

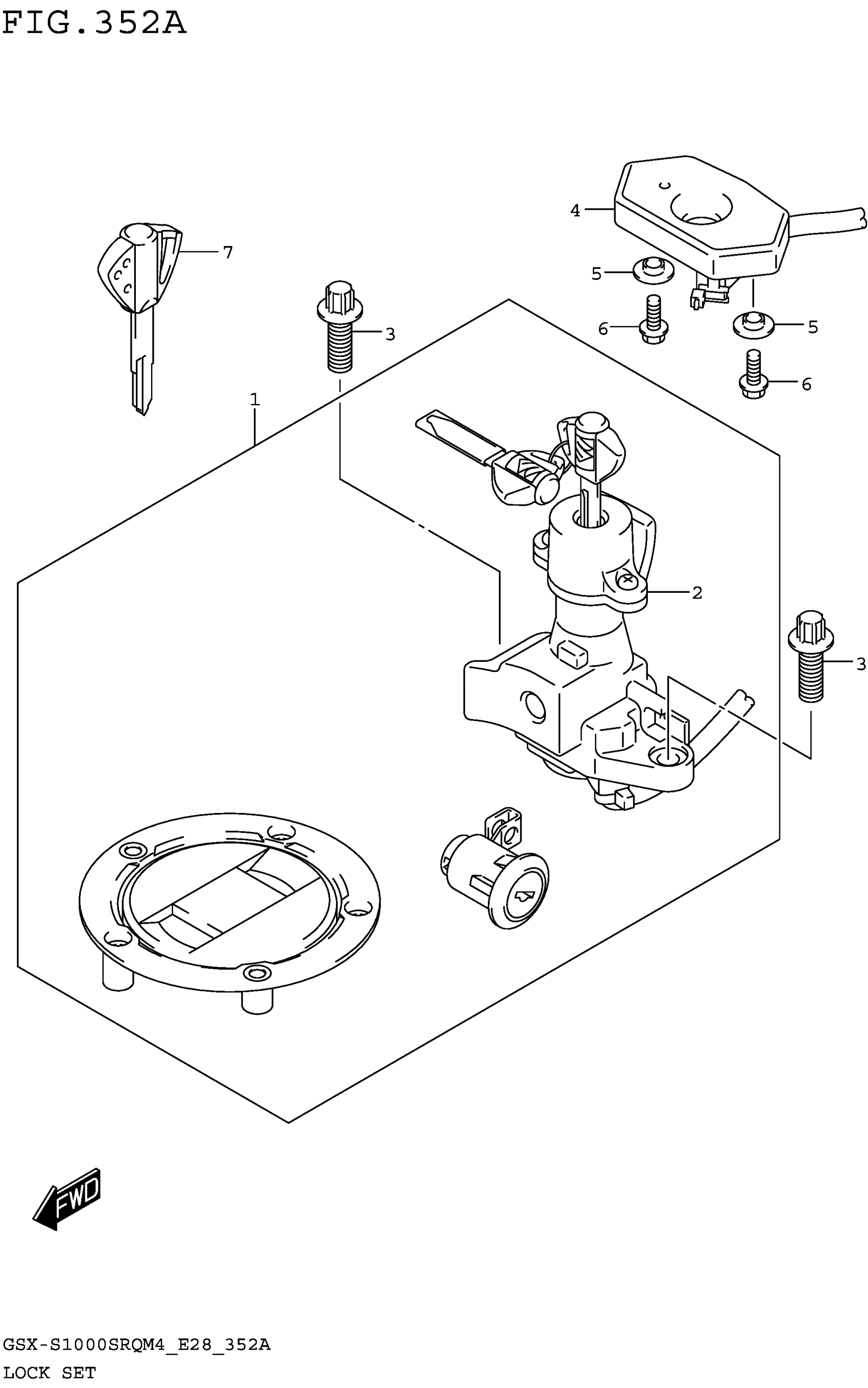

2024 Suzuki GSX-S1000SRQM4 Lock SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOCK SET

37101-07830

—
Out of stock

2

.LOCK ASSY,STEERING

37100-07L10

—
Out of stock

3

BOLT, STEERING LOCK (8X20)

37152-17K00

2
Out of stock

4

COVER,STEERING LOCK

37180-15HA0

1
Out of stock

5

WASHER

09169-05024

2

$2.58

In stock

6

BOLT

01547-0512A

2
Out of stock

7

KEY, BLANK | OPT

37146-07L00

1
Out of stock
