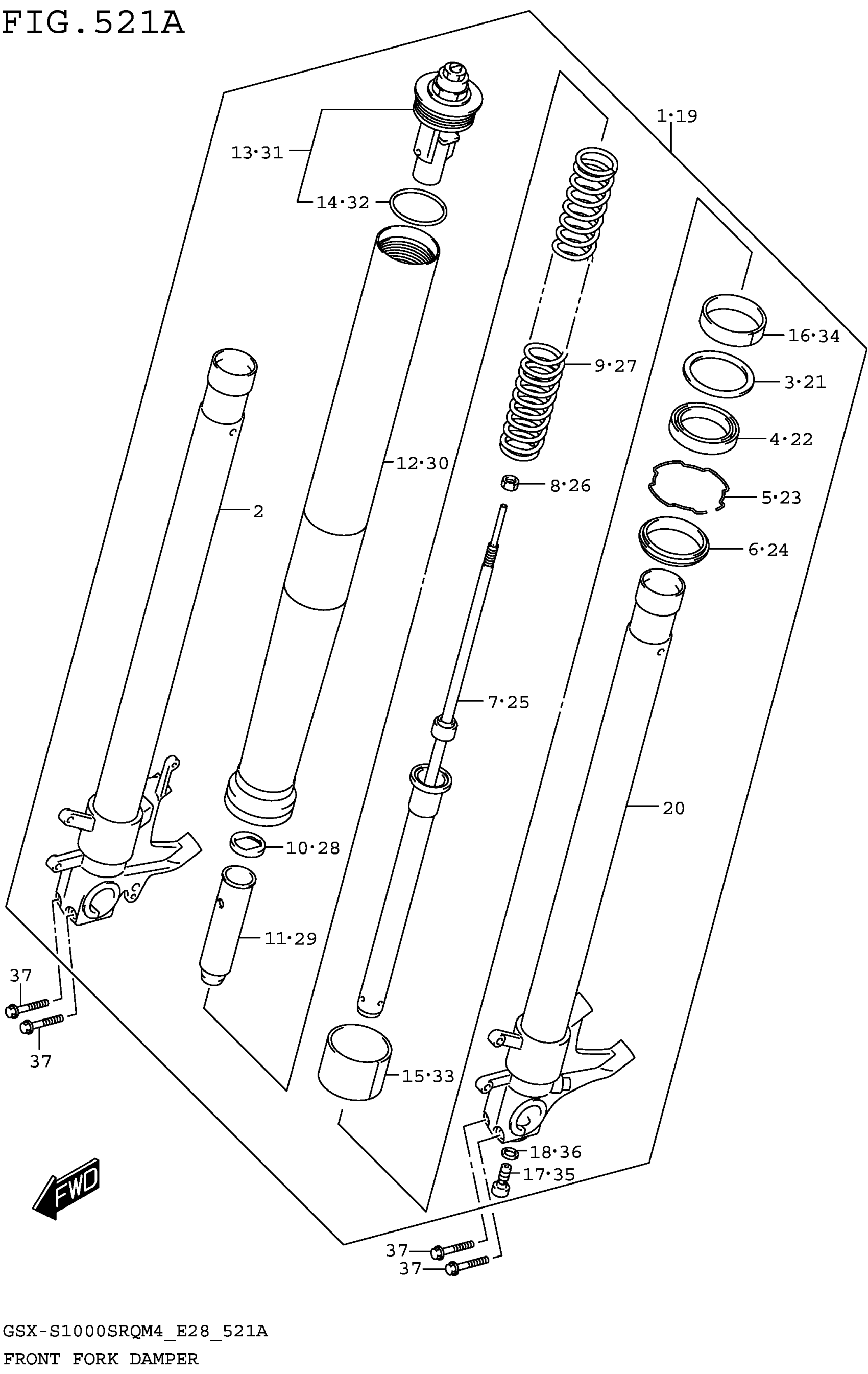

Suzuki GSX-S1000SRQM4 (2024) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY RH

51103-07L10

Unavailable

2

.TUBE, INNER RH

51110-07L00

Unavailable

3

.WASHER

51158-14200

$4.75

4

.SEAL,OIL

51153-44G00

$29.36

5

.RING,STOPPER

51156-14200

$4.63

6

.SEAL,DUST

51173-02FA0

$24.34

7

.CYLINDER

51146-04K01

$309.25

8

.NUT, ROD

51352-13A60

$3.42

9

.SPRING

51171-04K00

$71.50

10

.WASHER

51158-40F30

$11.75

11

.SPACER, SPRING

51176-40F30

$29.78

12

.TUBE,OUTER

51131-04K00

$428.72

13

.CAP

51351-04K40

Unavailable

14

..O RING

62278-14100

$3.69

15

.PISTON

51112-31J00

$12.25

16

.METAL,SLIDE

51152-31J00

$11.72

17

.BOLT

51147-24F50

$9.87

18

.GASKET

51148-41310

$2.14

19

DAMPER ASSY LH

51104-07L10

Unavailable

20

.TUBE, INNER LH

51120-07L00

Unavailable

21

.WASHER

51158-14200

$4.75

22

.SEAL,OIL

51153-44G00

$29.36

23

.RING,STOPPER

51156-14200

$4.63

24

.SEAL,DUST

51173-02FA0

$24.34

25

.CYLINDER

51146-04K01

$309.25

26

.NUT, ROD

51352-13A60

$3.42

27

.SPRING

51171-04K00

$71.50

28

.WASHER

51158-40F30

$11.75

29

.SPACER, SPRING

51176-40F30

$29.78

30

.TUBE,OUTER

51131-04K00

$428.72

31

.CAP

51351-04K40

Unavailable

32

..O RING

62278-14100

$3.69

33

.PISTON

51112-31J00

$12.25

34

.METAL,SLIDE

51152-31J00

$11.72

35

.BOLT

51147-24F50

$9.87

36

.GASKET

51148-41310

$2.14

37

BOLT

51166-24F60

$5.10
