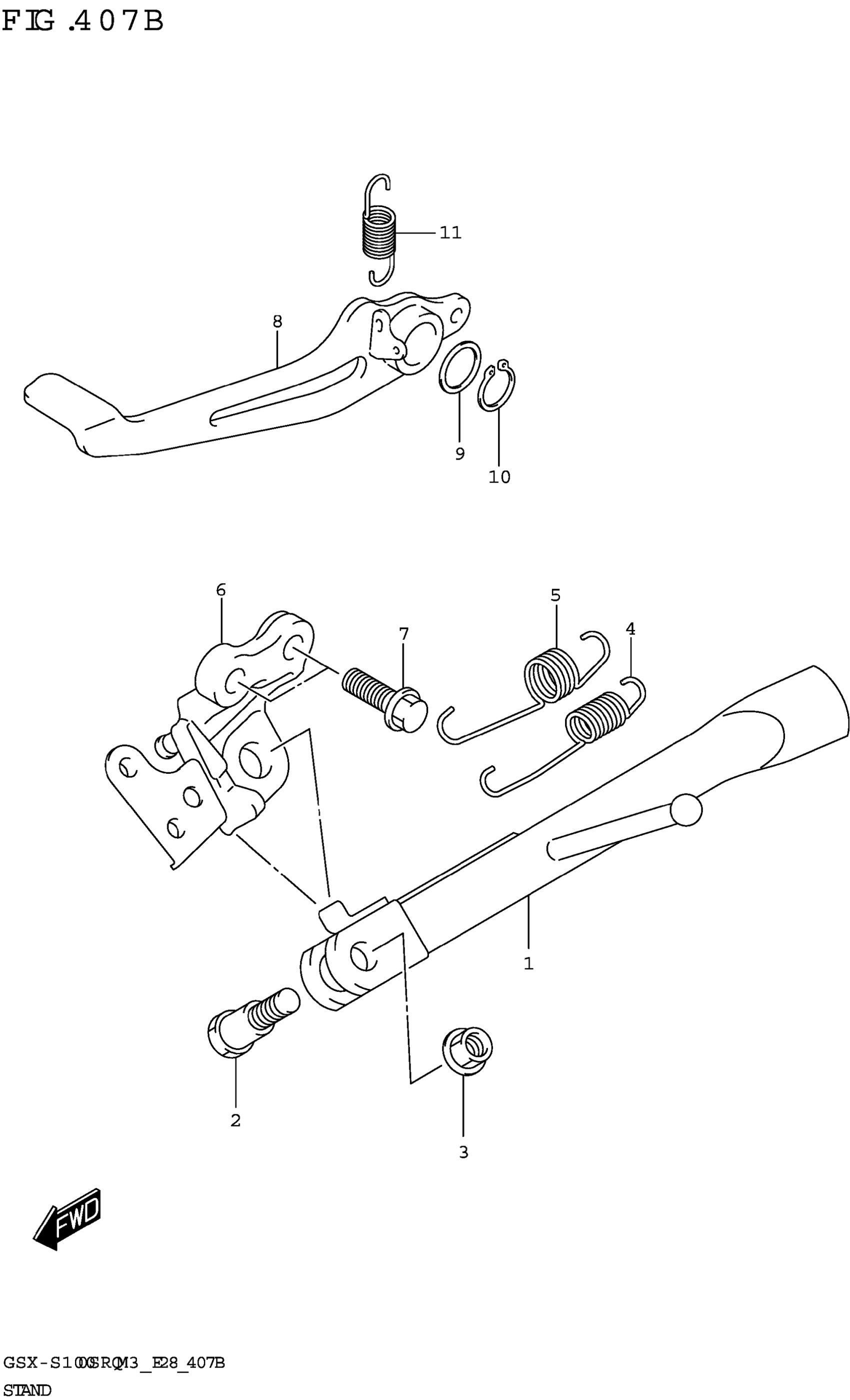

Suzuki GSX-S1000SRQM3 (2023) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-04K10

$146.75

2

BOLT (10X21)

09111-10059

$6.27

3

NUT

08319-3110A

$2.73

4

SPRING

09443-14058

$5.17

5

SPRING

09443-19011

$5.26

6

BRACKET, PROP STAND

42330-04K00

$145.58

7

BOLT (10X30)

09103-10366

$2.95

8

PEDAL, BRAKE

43110-04K10

$74.13

9

WASHER (18X24X1.0)

09160-18022

$2.80

10

CIRCLIP

08331-3118A

$2.30

11

SPRING

09443-13032

$5.88
