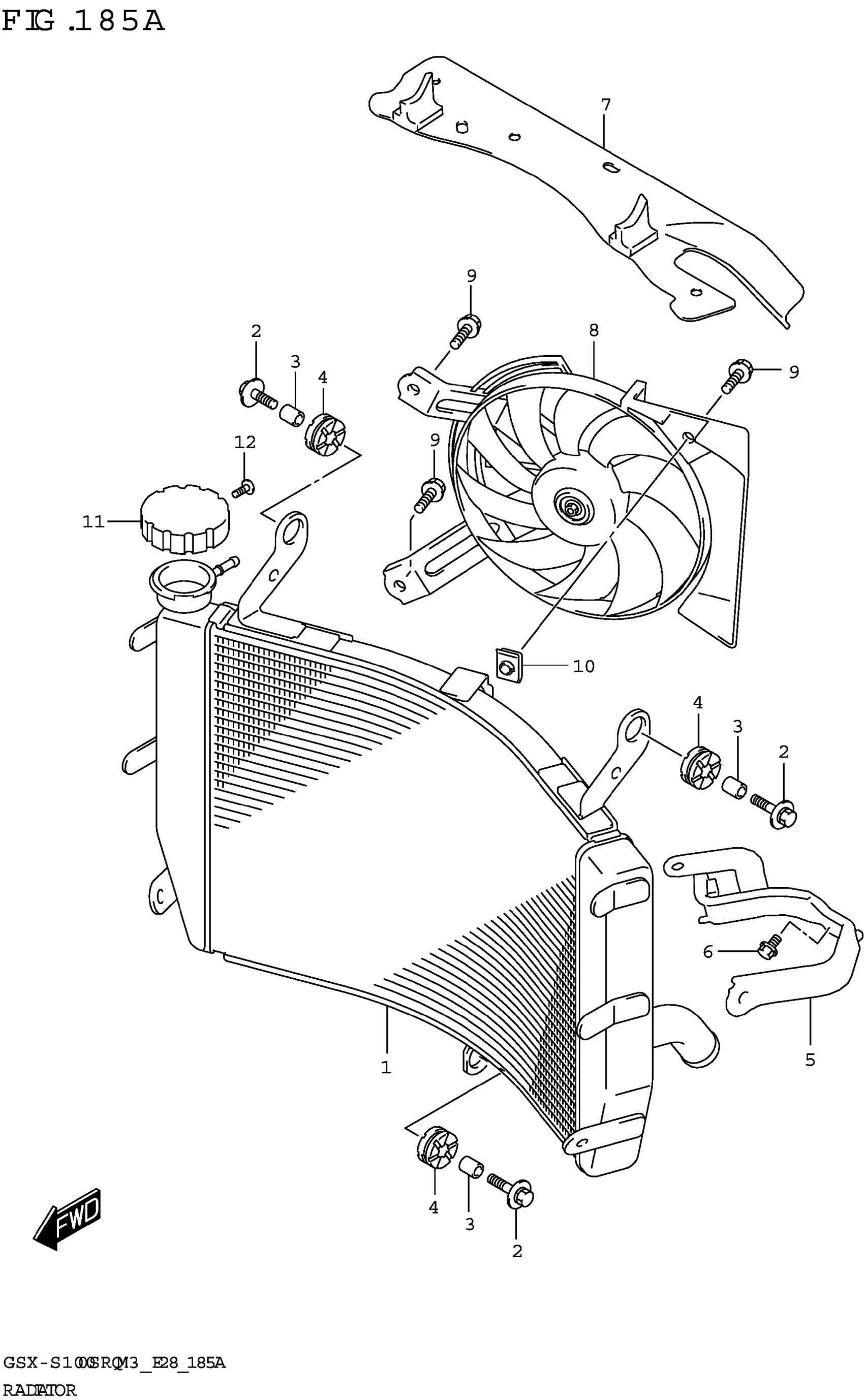

Suzuki GSX-S1000SRQM3 (2023) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER

17710-48K10

Unavailable

2

BOLT (6X25)

09118-06097

$2.50

3

SPACER (6.5X10X12)

09180-06290

$2.01

4

CUSHION

09320-10051

$2.81

5

BRACKET, RADIATOR LOWER | LOWER

17760-07L00

$52.60

6

BOLT

01550-0612A

$1.97

7

SHIELD, RADIATOR HEAT

17771-48K00

$55.55

8

FAN ASSY, RADIATOR

17800-48K00

$496.80

9

BOLT,FAN ASSY

17711-14G00

$4.62

10

NUT,RADIATOR FAN

17802-14F00

$3.18

11

CAP,RADIATOR (1.1)

17730-08D10

$58.77

12

SCREW,RADIATOR CAP

17733-03D10

$2.97
