2022 Suzuki GSX-S1000SRQM2 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2022 Suzuki GSX-S1000SRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

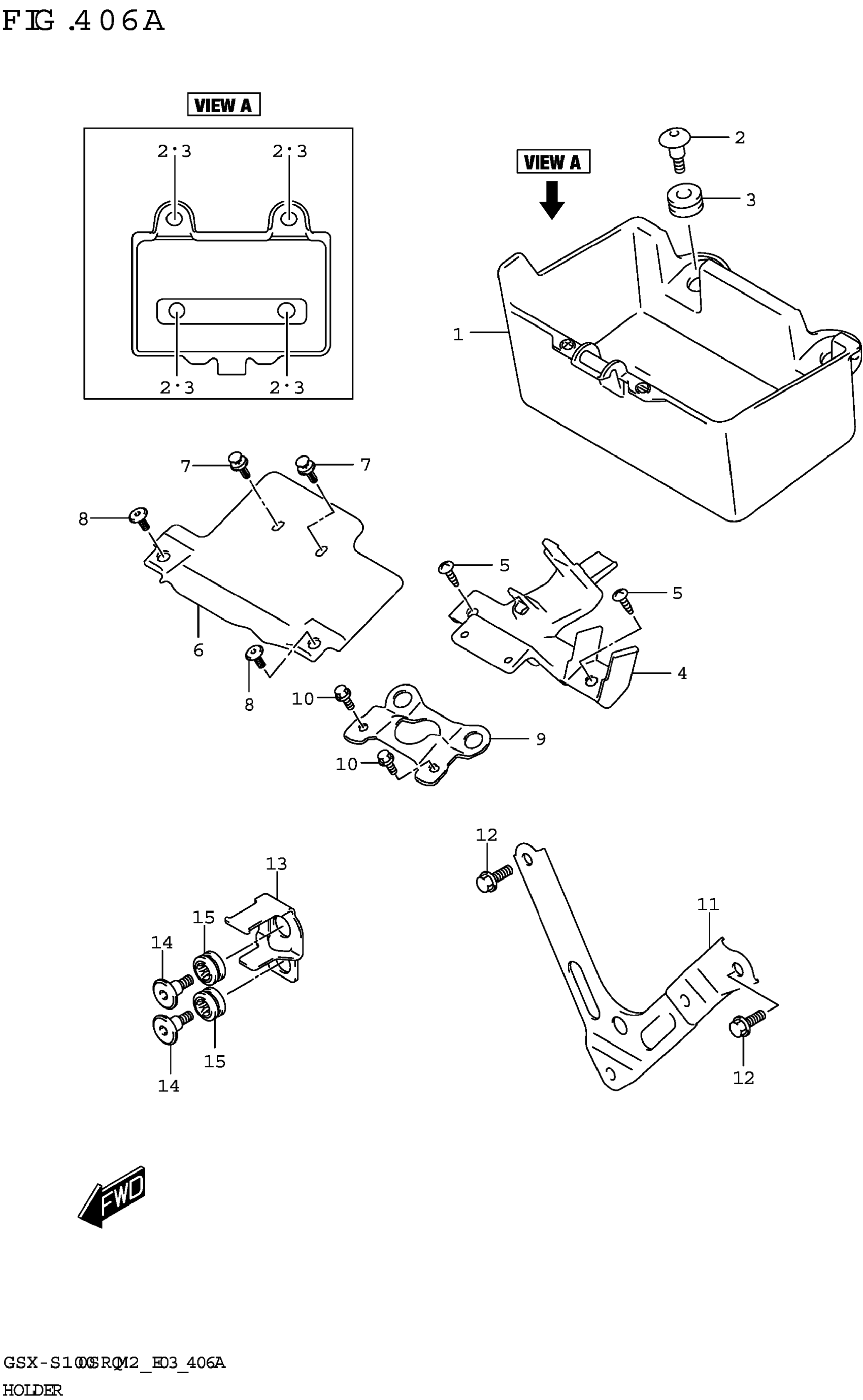

2022 Suzuki GSX-S1000SRQM2 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

47431-07L00

1
Out of stock

2

SCREW (6X20)

47118-08J00

4
Out of stock

3

CUSHION (9X18X9.5)

09320-09016

4
Out of stock

4

HOLDER, ELECTRIC PARTS

47414-07L00

1
Out of stock

5

SCREW

03541-0512A

2
Out of stock

6

COVER, RECTIFIER

47432-07L00

1
Out of stock

7

CLIP

09409-06328

2
Out of stock

8

SCREW (5X13)

09139-05091

2
Out of stock

9

BRACKET, RECTIFIER

47415-07L00

1
Out of stock

10

BOLT

01550-0612A

2
Out of stock

11

BRACKET, ACTUATOR

47420-04K00

1
Out of stock

12

BOLT

01547-0616A

2
Out of stock

13

BRACKET, FUEL CUT SENSOR

47470-07L00

1
Out of stock

14

SCREW (6X20)

09139-06206

2
Out of stock

15

RUBBER,INERTIAL SENSOR MTG

55763-17K00

2
Out of stock
