2022 Suzuki GSX-S1000SRQM2 Evap System Diagram

← All diagrams

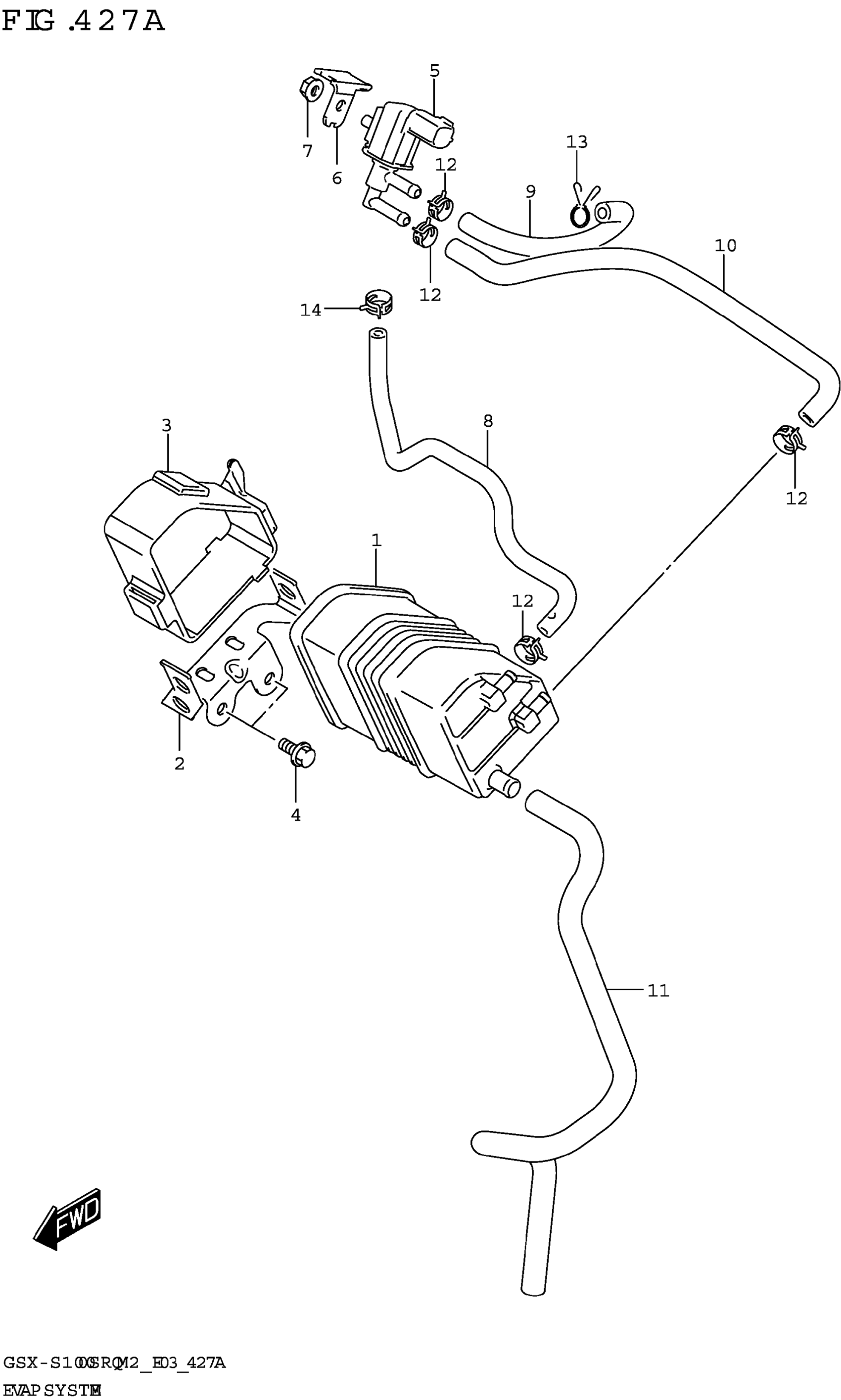

Find the part on the Evap System diagram for your 2022 Suzuki GSX-S1000SRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000SRQM2 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CANISTER ASSY,CHARCOAL

18560-04K01

1
Out of stock

2

BRACKET, CANISTER

18571-04K00

1
Out of stock

3

CUSHION, CANISTER

18572-04K00

1
Out of stock

4

BOLT

01550-0612A

2
Out of stock

5

VALVE,CANISTER PURGE

18114-74P00

1
Out of stock

6

BRACKET, PURGE VALVE

18573-04K00

1
Out of stock

7

NUT (6X12)

08316-1006A

1
Out of stock

8

HOSE, SURGE

18561-04K10

—
Out of stock

9

HOSE, PURGE NO.2

18563-04K00

1
Out of stock

10

HOSE, PURGE NO.1

18562-04K00

1
Out of stock

11

HOSE, CANISTER DRAIN

18564-04K00

1
Out of stock

12

CLIP (ID:10.5,H:8)

09401-10409

4
Out of stock

13

CLIP (ID:10)

09401-10403

1
Out of stock

14

CLIP (ID:11,H:8)

09401-11413

1
Out of stock
