2022 Suzuki GSX-S1000SRQM2 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2022 Suzuki GSX-S1000SRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

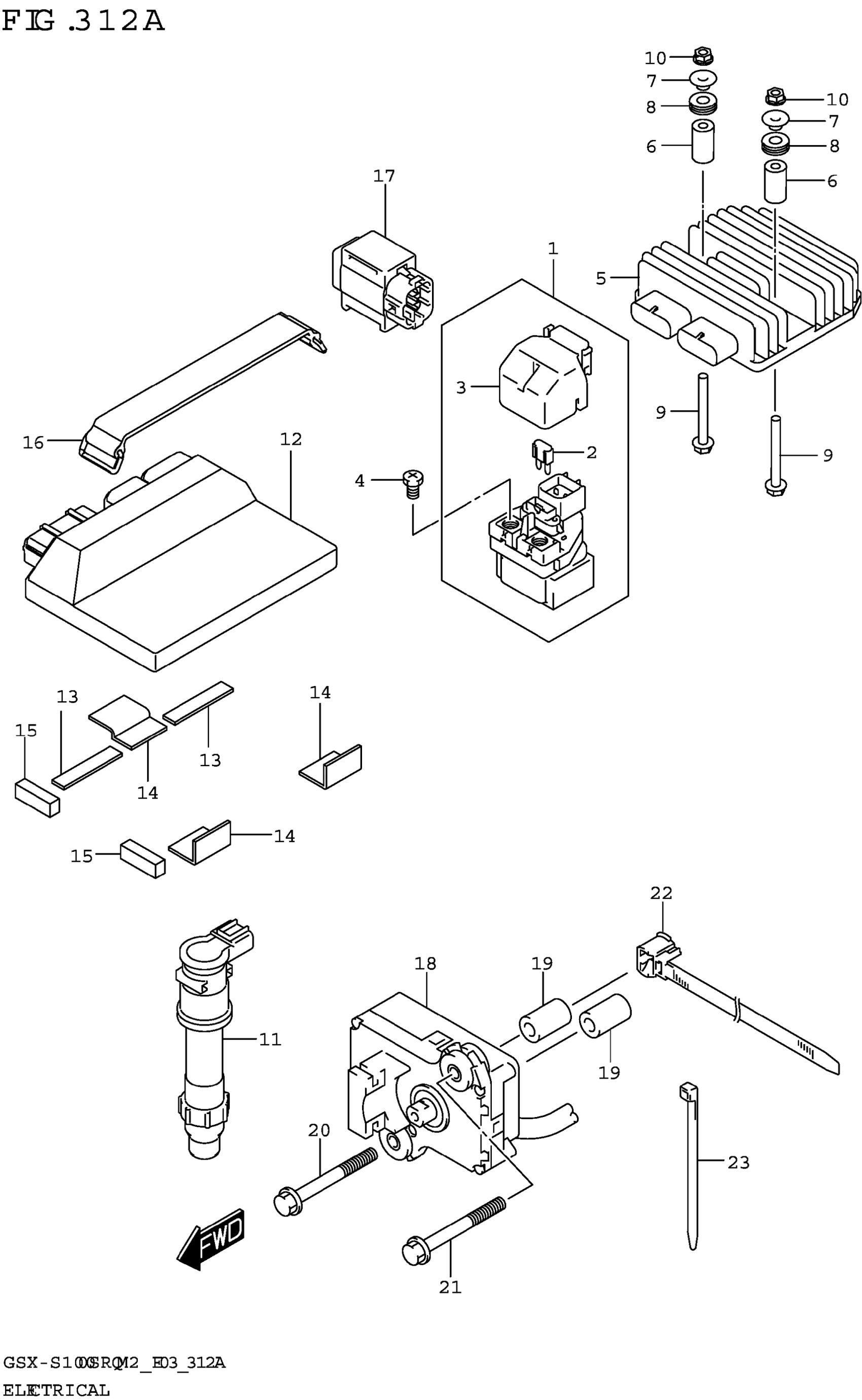

2022 Suzuki GSX-S1000SRQM2 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-38G10

1
Out of stock

2

.COVER

31861-38G00

1
Out of stock

3

.FUSE (30A)

09481-30501

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-07L00

1
Out of stock

6

SPACER (6.2X14.5X26)

09180-06345

2
Out of stock

7

SPACER (6.2X8.4X6.1)

09180-06374

2
Out of stock

8

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

9

BOLT

01550-0655A

—
Out of stock

10

NUT (6X12)

08316-1006A

2
Out of stock

11

COIL ASSY, IGNITION

33410-47H00

4
Out of stock

12

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

1
Out of stock

13

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

2
Out of stock

14

CUSHION (30X40X2.0)

33652-36100

3
Out of stock

15

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

2
Out of stock

16

BAND

09462-00015

1
Out of stock

17

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

18

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G01.

33970-48G02

1
Out of stock

19

SPACER (6.2X14.5X26)

09180-06345

2
Out of stock

20

BOLT

01550-0650A

1
Out of stock

21

BOLT

01550-0655A

—
Out of stock

22

CLAMP

09407-14413

1
Out of stock

23

CLAMP (L:145)

09407-14407

1
Out of stock
