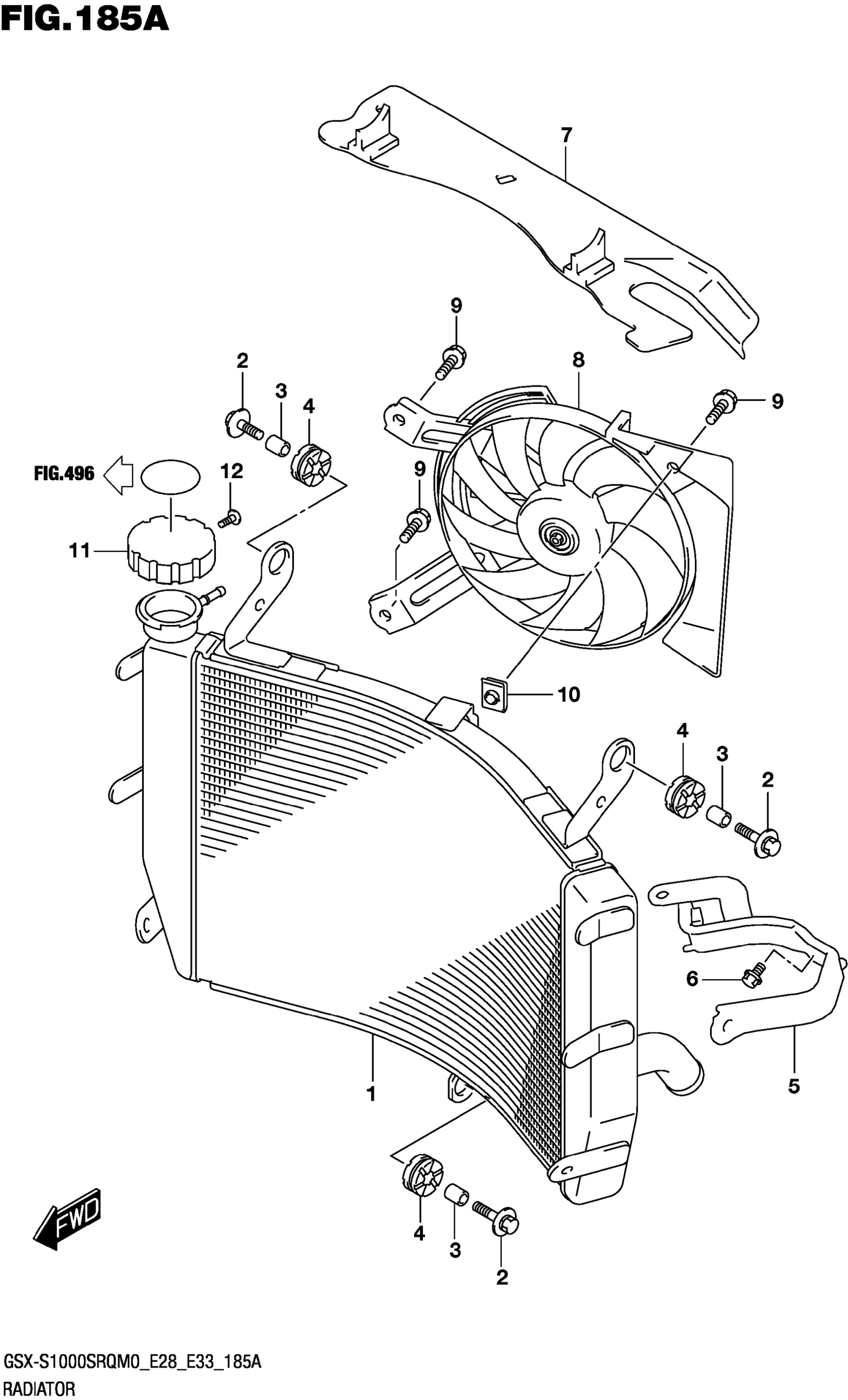

Suzuki GSX-S1000SRQM0 (2020) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-04K50

$963.30

2

BOLT (6X25)

09118-06097

$2.57

3

SPACER (6.5X10X12)

09180-06290

$2.09

4

CUSHION

09320-10051

$2.91

5

BRACKET, RADIATOR LOWER

17760-07L00

$52.60

6

BOLT

01550-0612A

$2.01

7

SHIELD,RADIATOR HEAT

17771-04K00

Unavailable

8

FAN ASSY, RADIATOR This part replaces 17800-04K00.

17800-48K00

$496.80

9

BOLT

01550-0616A

$2.01

10

NUT,RADIATOR FAN

17802-14F00

$3.33

11

CAP,RADIATOR (1.1)

17730-08D10

$58.77

12

SCREW,RADIATOR CAP

17733-03D10

$2.97
