2020 Suzuki GSX-S1000SRQM0 Lock SET Diagram

← All diagrams

Find the part on the Lock SET diagram for your 2020 Suzuki GSX-S1000SRQM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

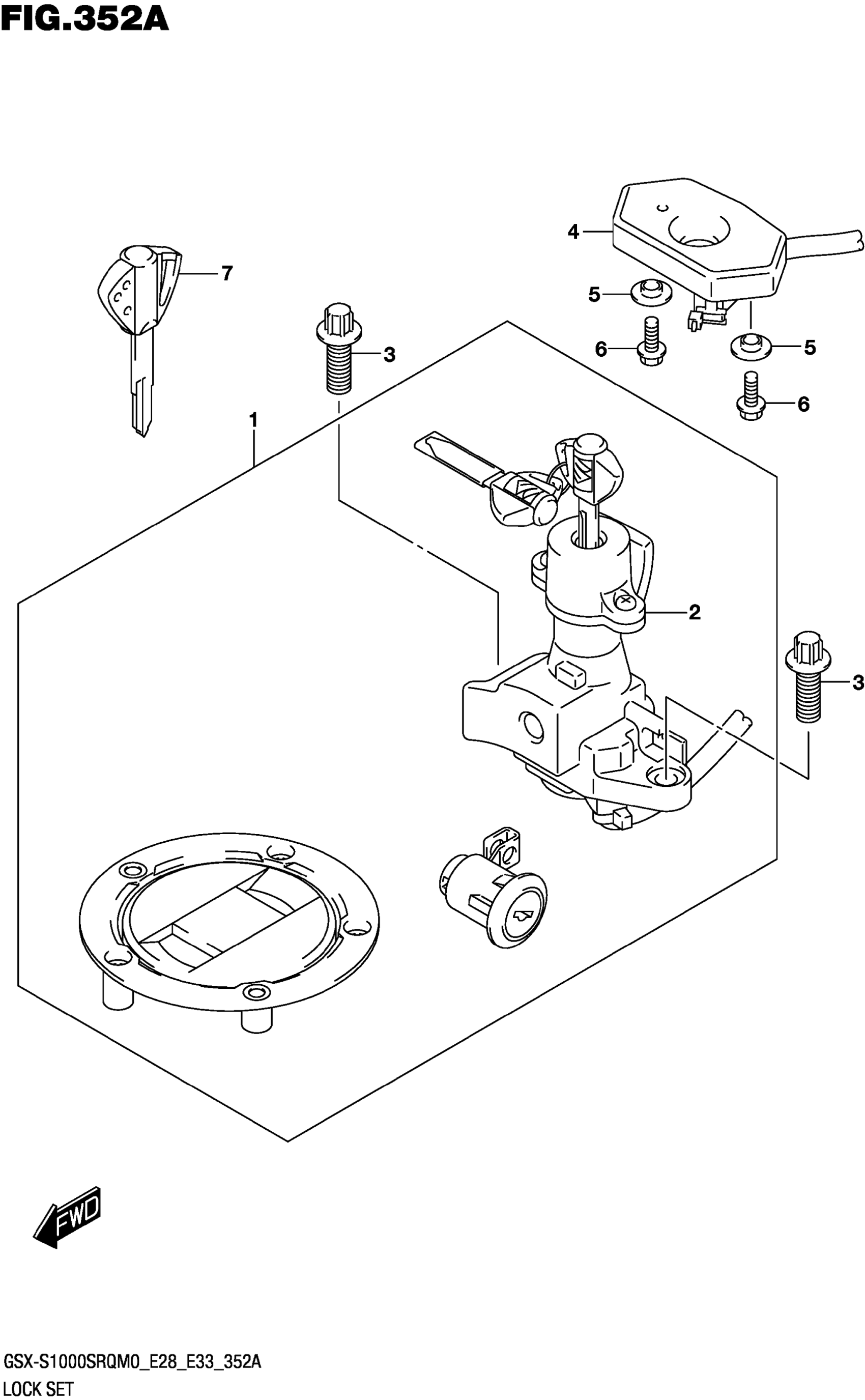

2020 Suzuki GSX-S1000SRQM0 Lock SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$253.13

In stock

2

.LOCK ASSY,STEERING

37100-04KB0

1

$224.37

In stock

3

2

$4.05

In stock

4

1

$31.52

In stock

5

WASHER

09169-05024

2
Out of stock

6

BOLT

01547-0512A

2

$1.61

In stock

7

KEY,BLANK | OPT

37146-13K00

1

$56.63

In stock
← Holder Optional →
