2020 Suzuki GSX-S1000SRQM0 Generator Diagram

← All diagrams

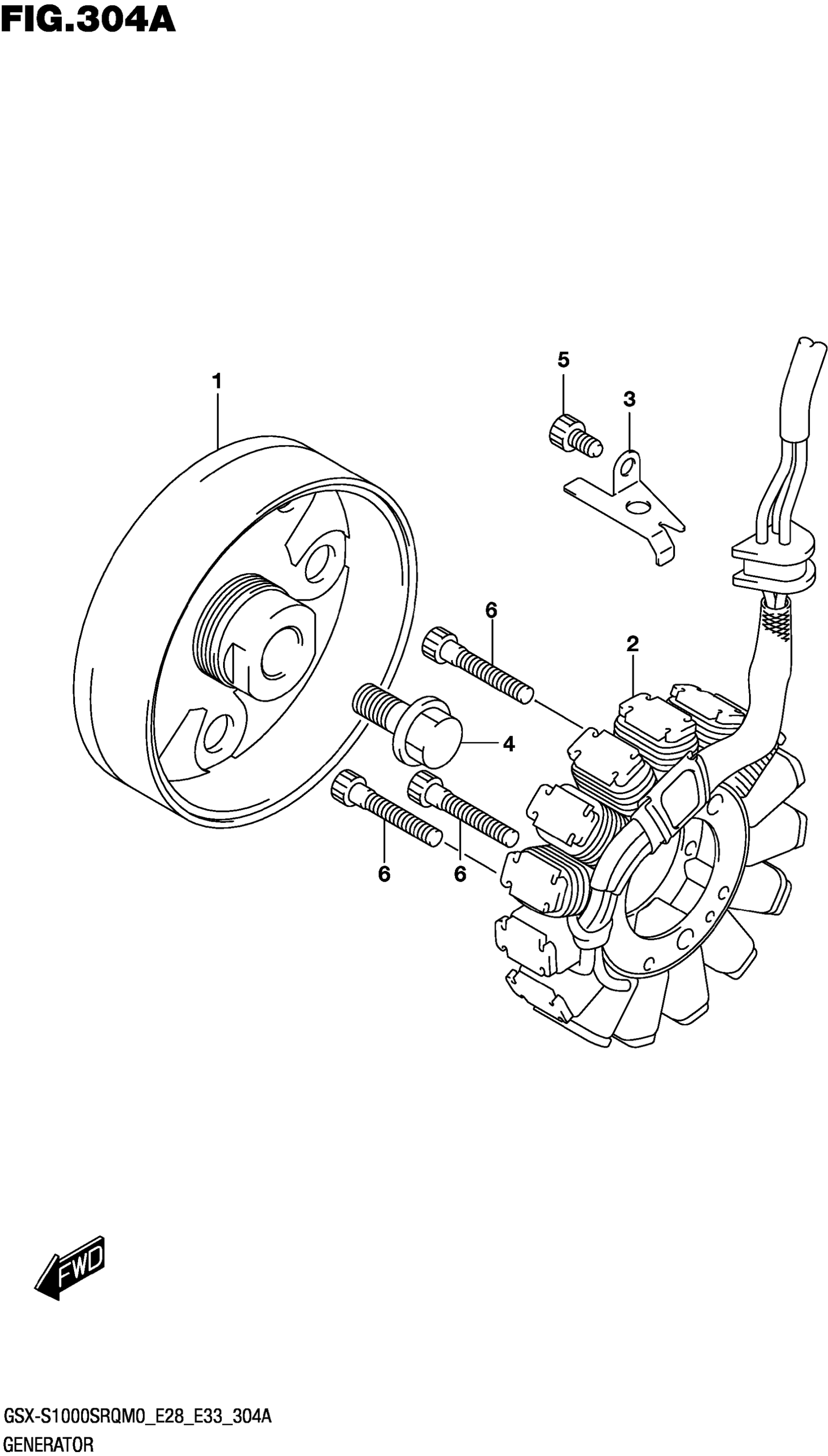

Find the part on the Generator diagram for your 2020 Suzuki GSX-S1000SRQM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Suzuki GSX-S1000SRQM0 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

31402-41G10

1

$693.08

In stock

2

STATOR ASSY

31401-41G20

1

$347.42

In stock

3

CLAMP, MAGNETO LEAD

32371-33E00

1

$6.07

In stock

4

BOLT (12X23)

09103-12005

1

$7.67

In stock

5

BOLT

07130-0612A

1
Out of stock

6

BOLT (6X30)

09106-06122

3

$3.38

In stock
