Description

Price

1

WHEEL,FRONT (17M/CXMT3.50,BLA | K) This part replaces 54111-04K02-019.

54111-04K30-019

$827.93

2

SPACER,FR HUB BEARING

54731-14J00

$20.64

3

BEARING This part replaces 09262-22035.

09262-22049

$40.71

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$8.49

5

AXLE,FR

54711-14J00

$160.82

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$41.34

7

SPACER,FR AXLE,L

54751-14J00

$17.54

8

DISC, FRONT BRAKE

59210-04K00

$367.77

9

BOLT (6X21)

09106-06124

$3.18

10

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

11

BOLT

07130-0512A

$2.25

12

TIRE,FRONT

55110-07L00

$380.13

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

14-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

14-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

14-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

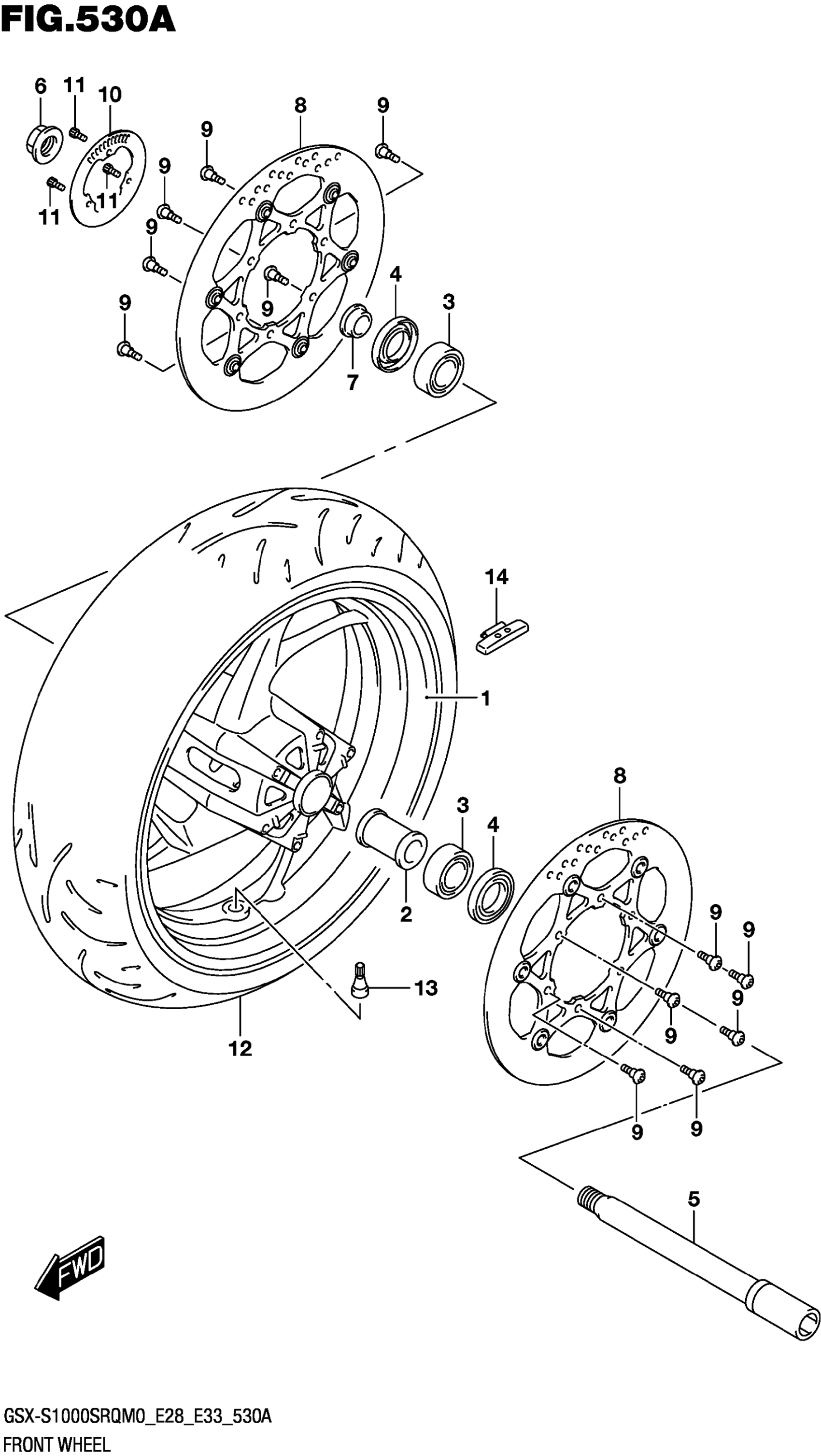

Suzuki GSX-S1000SRQM0 (2020) FRONT WHEEL Diagram
