2022 Suzuki GSX-S1000RQM2 Lock Set Diagram

← All diagrams

Find the part on the Lock Set diagram for your 2022 Suzuki GSX-S1000RQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

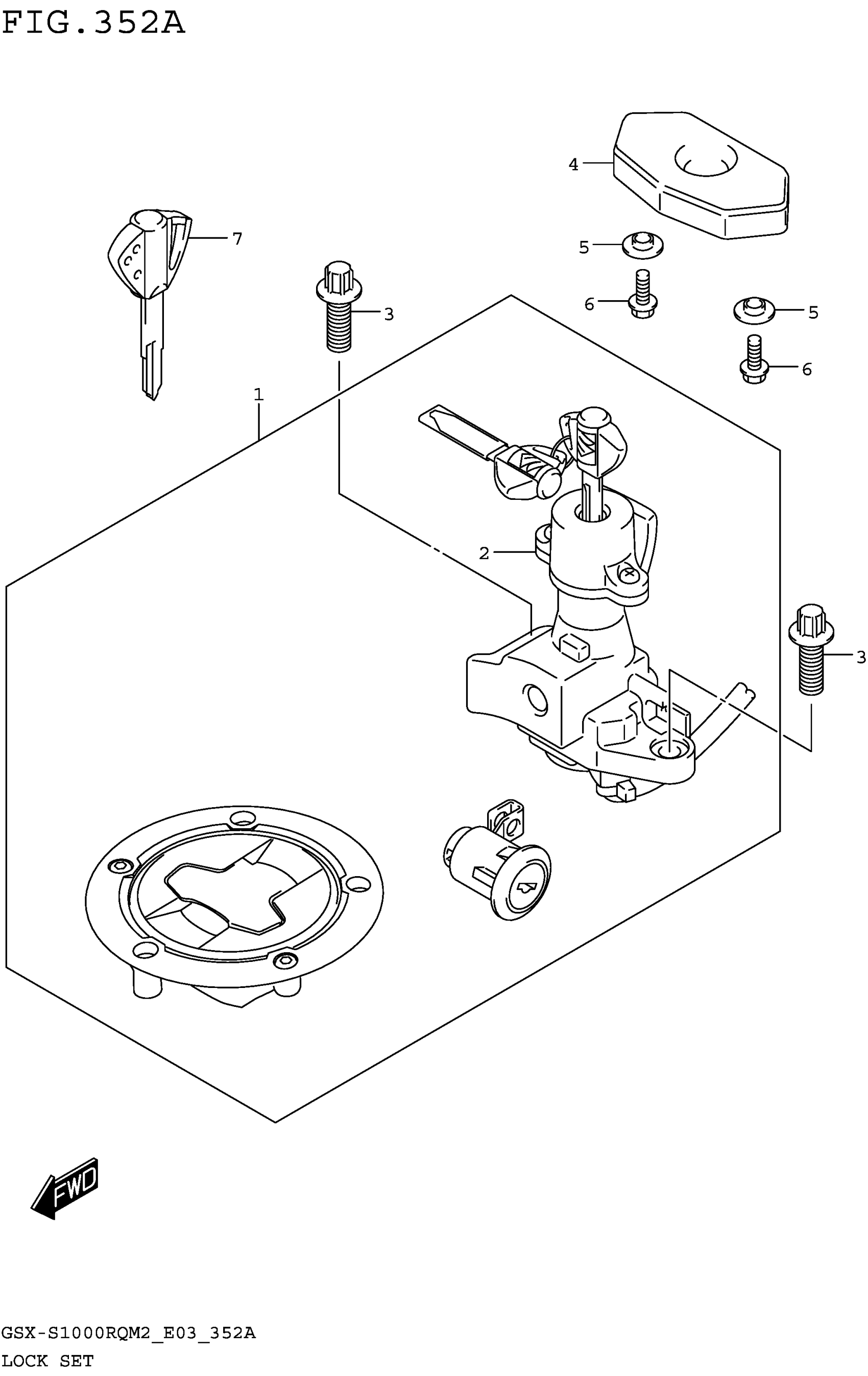

2022 Suzuki GSX-S1000RQM2 Lock Set Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$309.65

In stock

2

.LOCK ASSY,STEERING

37100-48KB0

1

$242.22

In stock

3

2

$4.05

In stock

4

1

$31.52

In stock

5

WASHER

09169-05024

2
Out of stock

6

BOLT

01547-0512A

2

$1.61

In stock

7

KEY,BLANK | OPT

37146-48KB0

1

$70.82

In stock
← Holder Optional →
