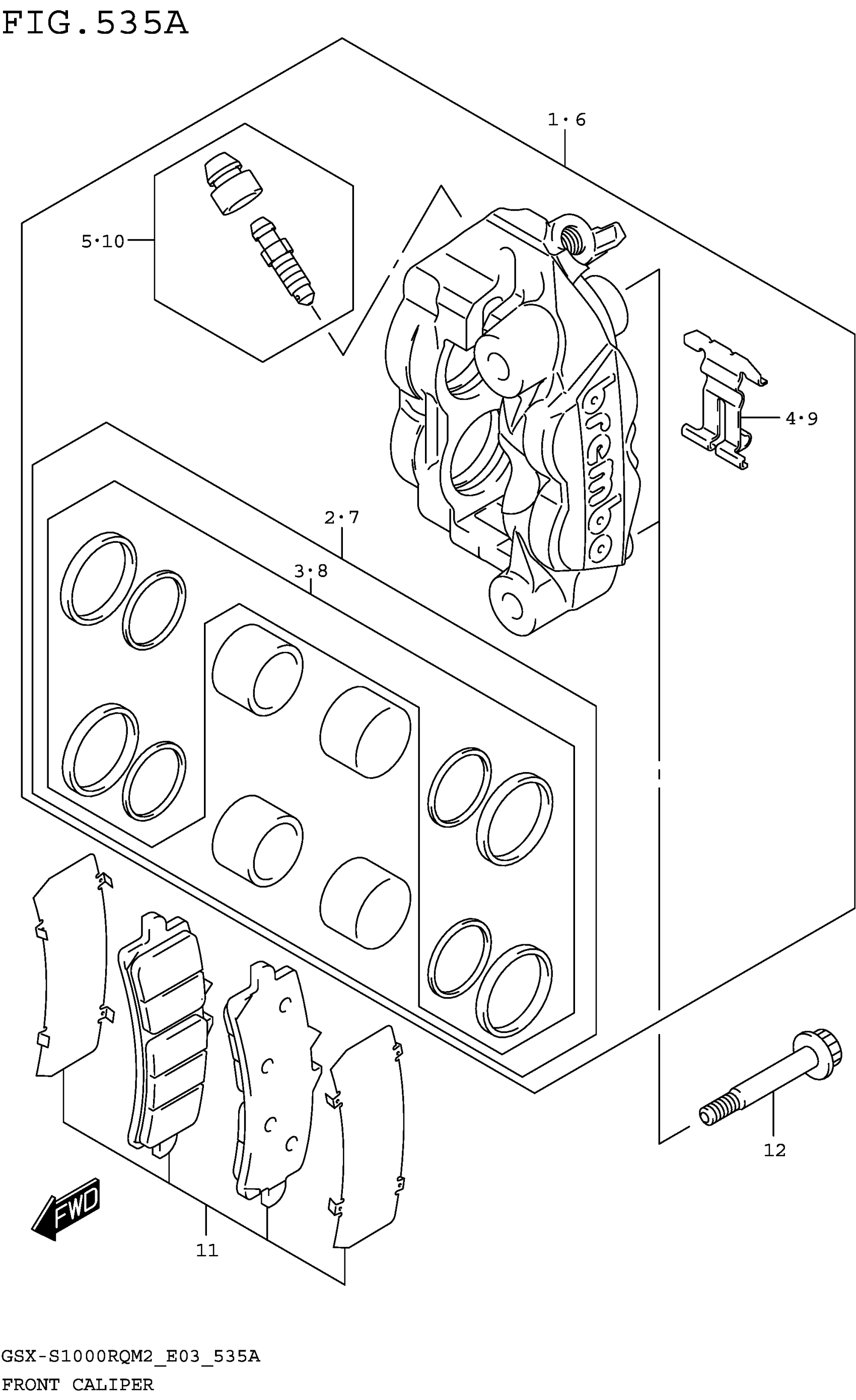

Suzuki GSX-S1000RQM2 (2022) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,L This part replaces 59300-17K40-999.

59300-17K00-999

$422.98

2

.PISTON SET

59100-17810

$94.95

3

..SEAL SET,PISTON

59100-14820

$60.59

4

.SPRING

59151-14J00

$23.06

5

.BLEEDER SET

59100-14840

$24.80

6

CALIPER ASSY,FRONT,R This part replaces 59100-17K40-999.

59100-17K00-999

$422.98

7

.PISTON SET

59100-17810

$94.95

8

..SEAL SET,PISTON

59100-14820

$60.59

9

.SPRING

59151-14J00

$23.06

10

.BLEEDER SET

59100-14840

$24.80

11

PAD SET

59100-17820

$99.63

12

BOLT

09106-10096

$4.62
