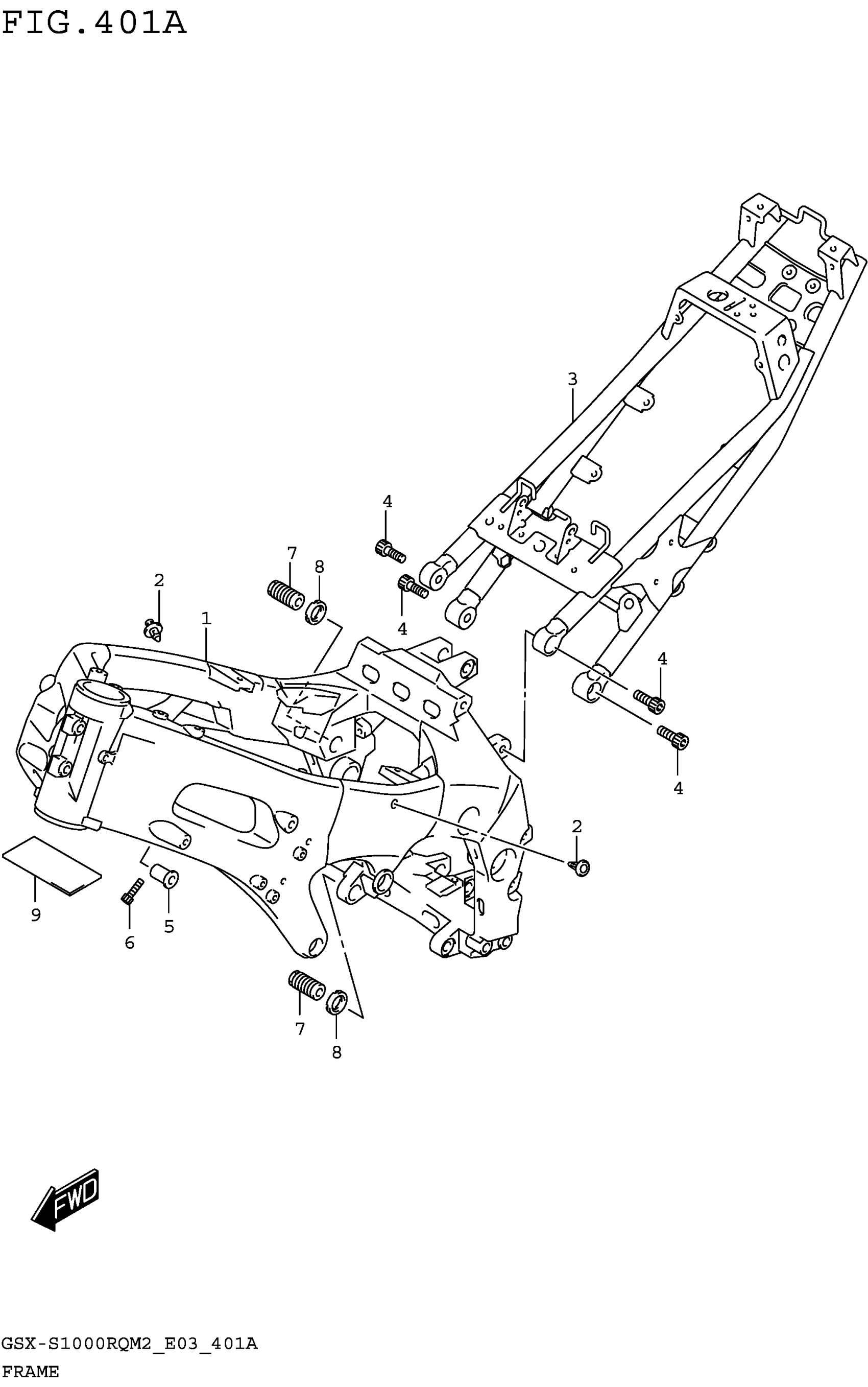

Find the part on the Frame diagram for your 2022 Suzuki GSX-S1000RQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S1000RQM2 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME(BLACK)

41100-04K00-YAP

1

$4,136.85

In stock

2

PLUG, TANK RAIL

43585-01H01

2

$4.76

In stock

3

RAIL,SEAT (SILVER)

41200-04K20-YD8

1

$692.83

In stock

4

BOLT

07120-1030A

4

$3.48

In stock

5

1

$23.13

In stock

6

BOLT (8X32)

09106-08185

1

$2.92

In stock

7

2

$26.50

In stock

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

2
Out of stock

9

CUSHION, FRAME HEAD

41139-21H10

1
Out of stock
