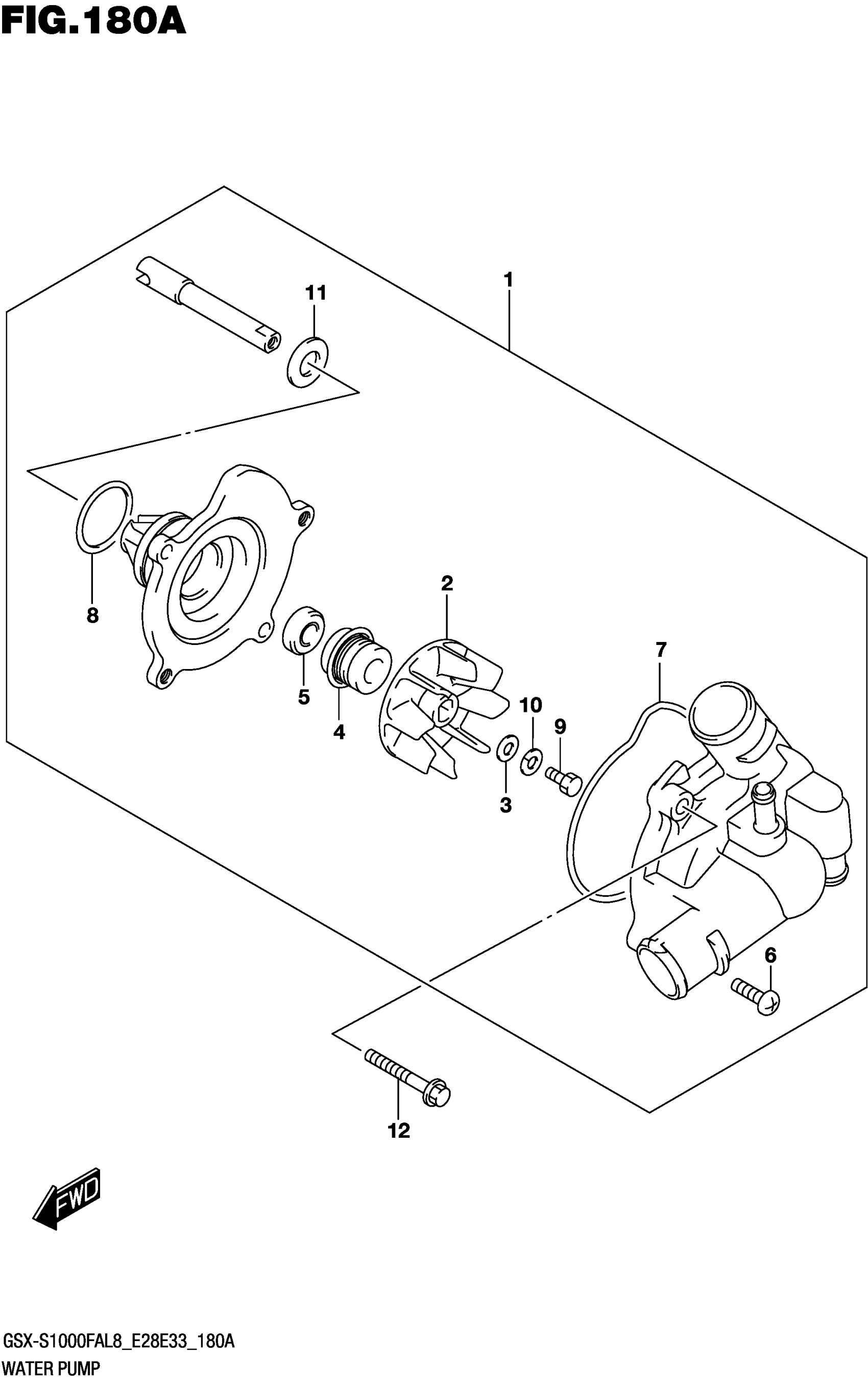

Suzuki GSX-S1000FAL8 (2018) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER This part replaces 17400-04K00.

17400-04K01

$259.28

2

.IMPELLER

17491-17E01

$26.34

3

.GASKET (6X15X2.2)

09168-06025

$2.80

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$27.96

5

.SEAL,OIL (10X21X5)

17461-48G00

$13.02

6

.SCREW

02112-0616A

$1.46

7

.O-RING This part replaces 17418-33400.

17418-33401

$4.28

8

.O-RING

17435-33400

$14.63

9

.BOLT (6X13)

09100-06099

$2.08

10

.WASHER

09164-06006

$2.66

11

.WASHER

17432-07G00

$2.74

12

BOLT

01547-0635A

$2.38
