2018 Suzuki GSX-S1000FAL8 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2018 Suzuki GSX-S1000FAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

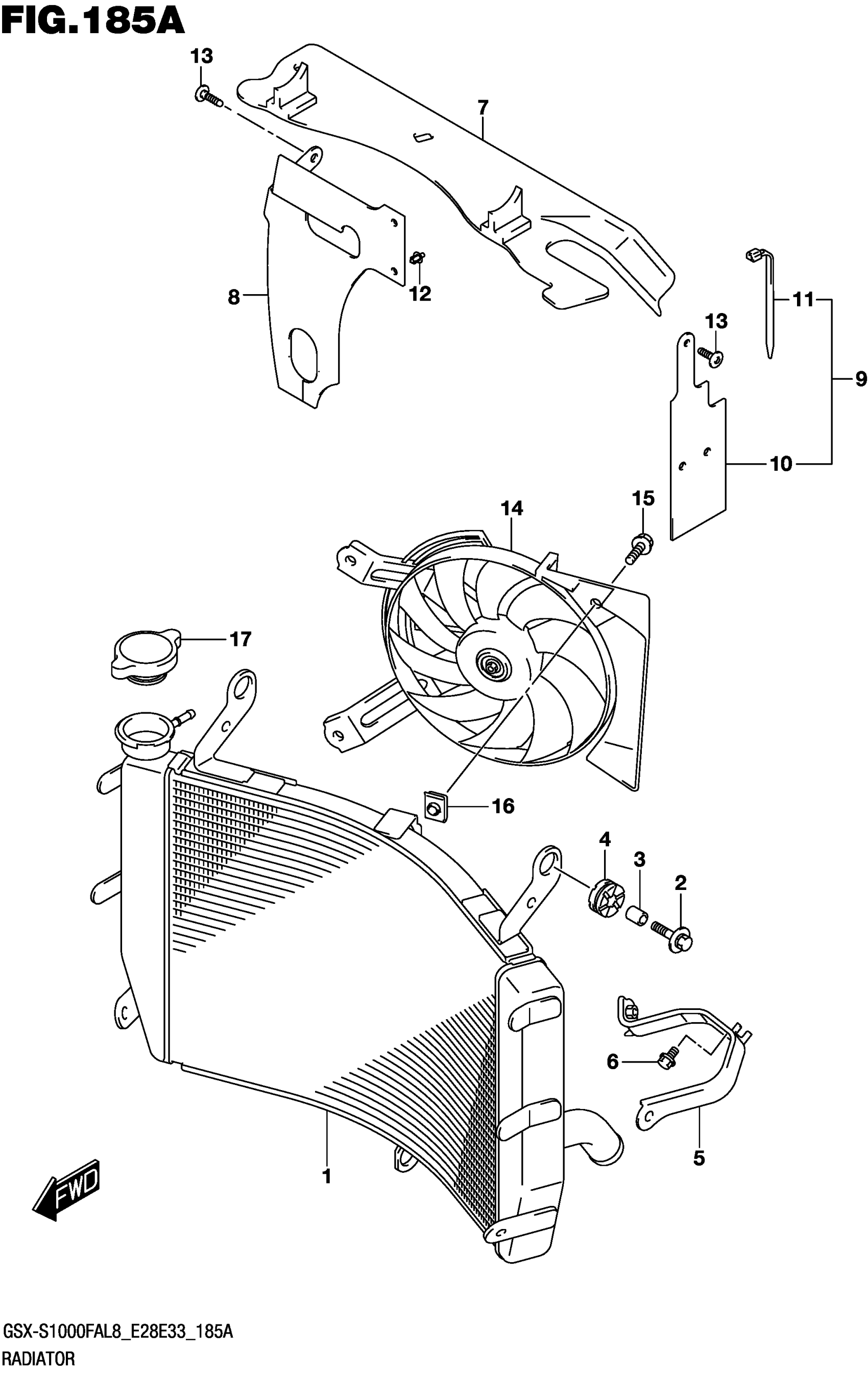

2018 Suzuki GSX-S1000FAL8 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSY,WATER

17710-04K00

1
Out of stock

2

BOLT (6X25)

09118-06097

3
Out of stock

3

SPACER (6.5X10X12)

09180-06290

3
Out of stock

4

CUSHION

09320-10051

3
Out of stock

5

BRACKET,RADIATOR LOWER

17760-04K00

1
Out of stock

6

BOLT

01550-0612A

1
Out of stock

7

SHIELD,RADIATOR HEAT

17771-04K00

1
Out of stock

8

.SHIELD, HEAT RH

17772-04K00

—
Out of stock

9

SHIELD ASSY,RADIATOR HEAT LH

17770-04K00

1
Out of stock

10

.SHIELD,HEAT LH

17773-04K00

—
Out of stock

11

.CLAMP (L:190)

09407-19401

1
Out of stock

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

2
Out of stock

13

CLIP

09409-06315

2
Out of stock

14

FAN ASSY, RADIATOR This part replaces 17800-04K00.

17800-48K00

1
Out of stock

15

BOLT

01550-0616A

3
Out of stock

16

NUT, FAN ASSY

17802-14F00

1
Out of stock

17

CAP, RADIATOR

17730-14G00

1
Out of stock
