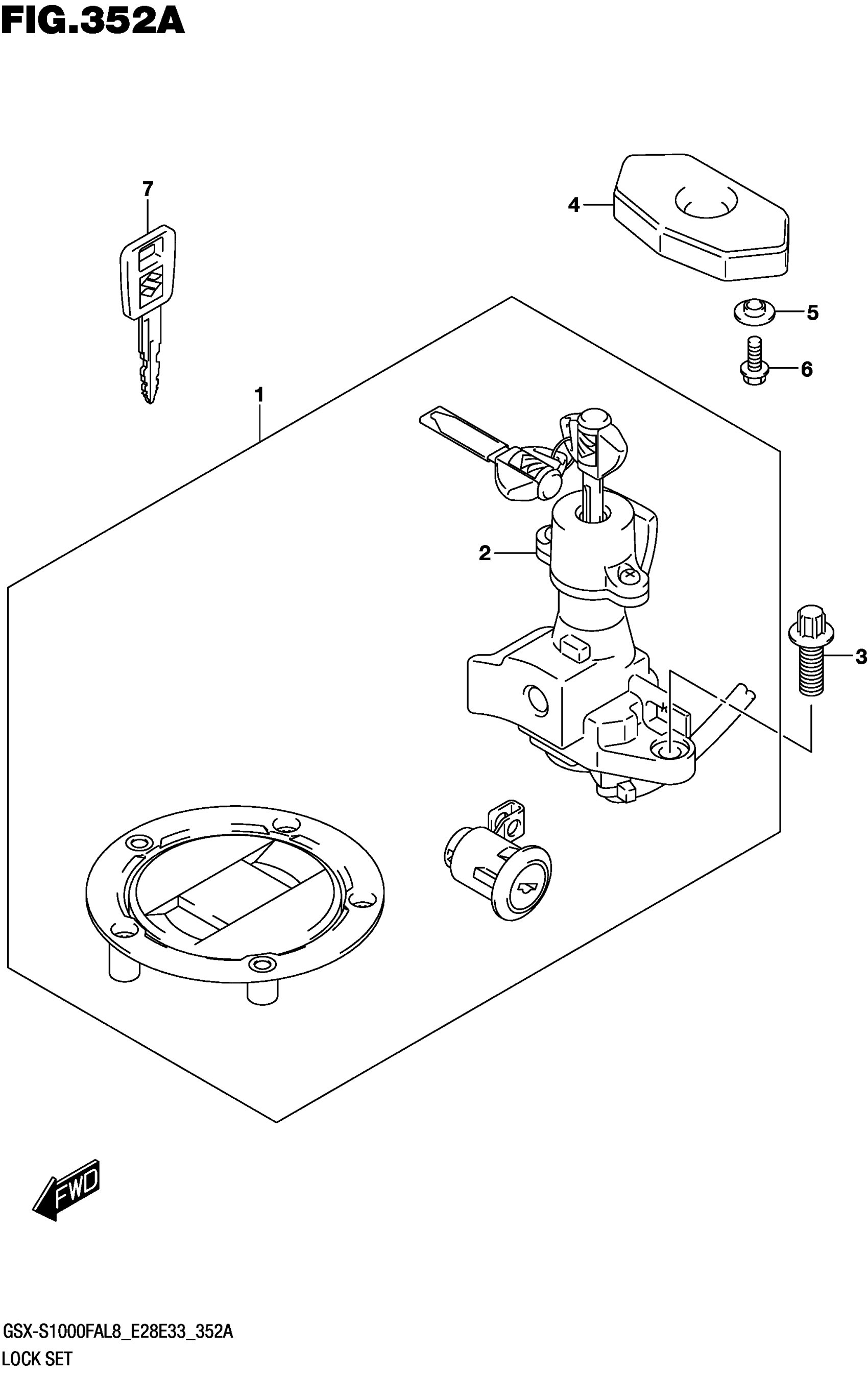

Suzuki GSX-S1000FAL8 (2018) LOCK SET Diagram

#

Description

Price

1

LOCK SET This part replaces 37000-04870.

37101-04871

$253.13

2

.LOCK ASSY,STEERING

37100-04KB0

$224.37

3

BOLT, STEERING LOCK (8X20) This part replaces 09119-08100.

37152-17K00

$4.05

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.36

5

WASHER

09169-05024

$2.14

6

BOLT

01547-0512A

$1.55

7

KEY, BLANK | OPT

37146-11J00

$57.43
