2018 Suzuki GSX-S1000FAL8 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2018 Suzuki GSX-S1000FAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

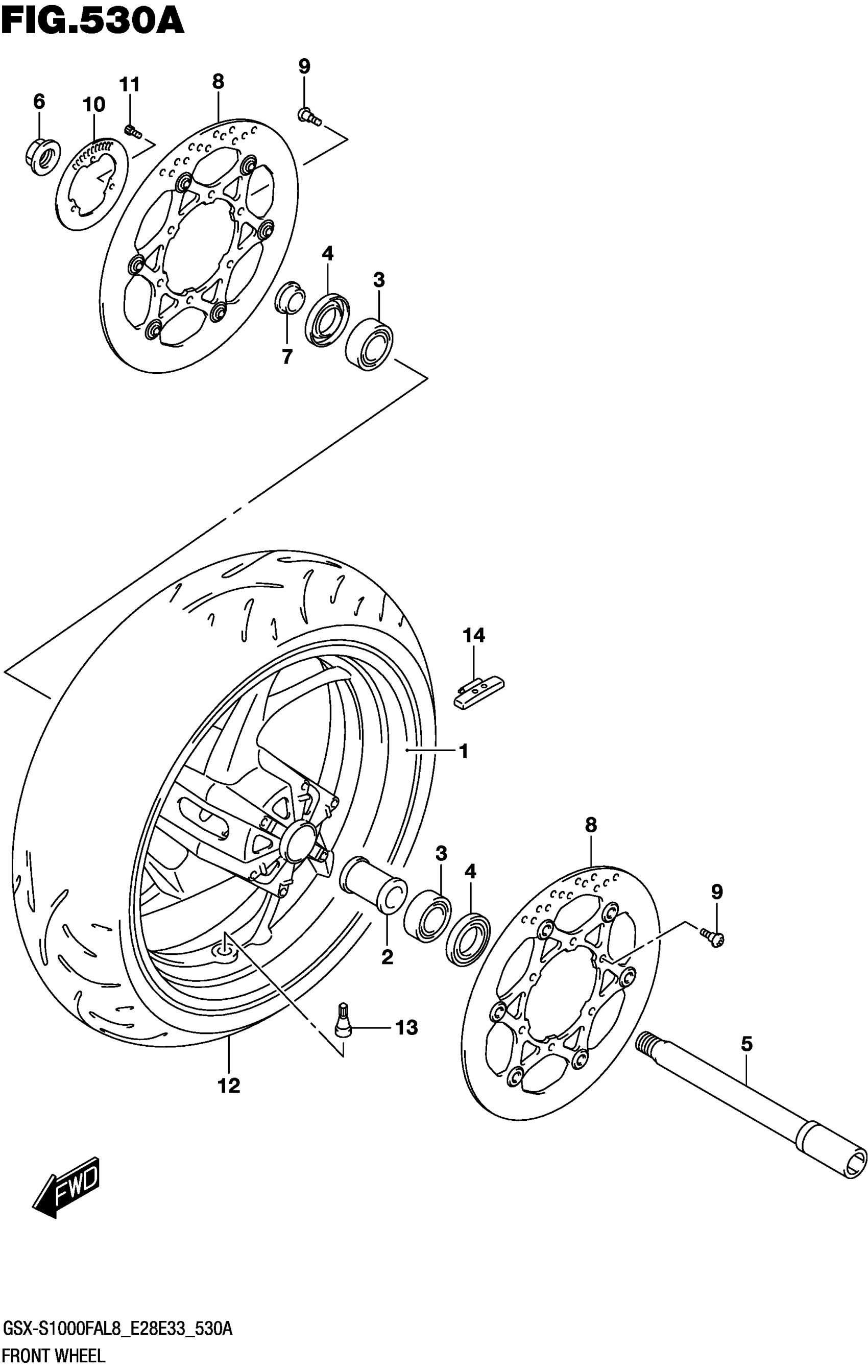

2018 Suzuki GSX-S1000FAL8 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

SPACER, HUB BEARING

54731-14J00

1
Out of stock

3

BEARING This part replaces 09262-22035.

09262-22049

2
Out of stock

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

2
Out of stock

5

AXLE,FR

54711-14J00

1
Out of stock

6

NUT, FRONT AXLE

62994-47H00

1
Out of stock

7

SPACER,FR AXLE,L

54751-14J00

1
Out of stock

8

DISC, FRONT BRAKE

59210-04K00

2

$367.77

In stock

9

BOLT (6X21)

09106-06124

12
Out of stock

10

RING, SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

11

BOLT

07130-0512A

3
Out of stock

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

14-1

BALANCER, WHEEL (10G)

55411-22H00

1
Out of stock

14-2

BALANCER, WHEEL (20G)

55412-22H00

1
Out of stock

14-3

BALANCER, WHEEL (30G)

55413-22H00

1
Out of stock
