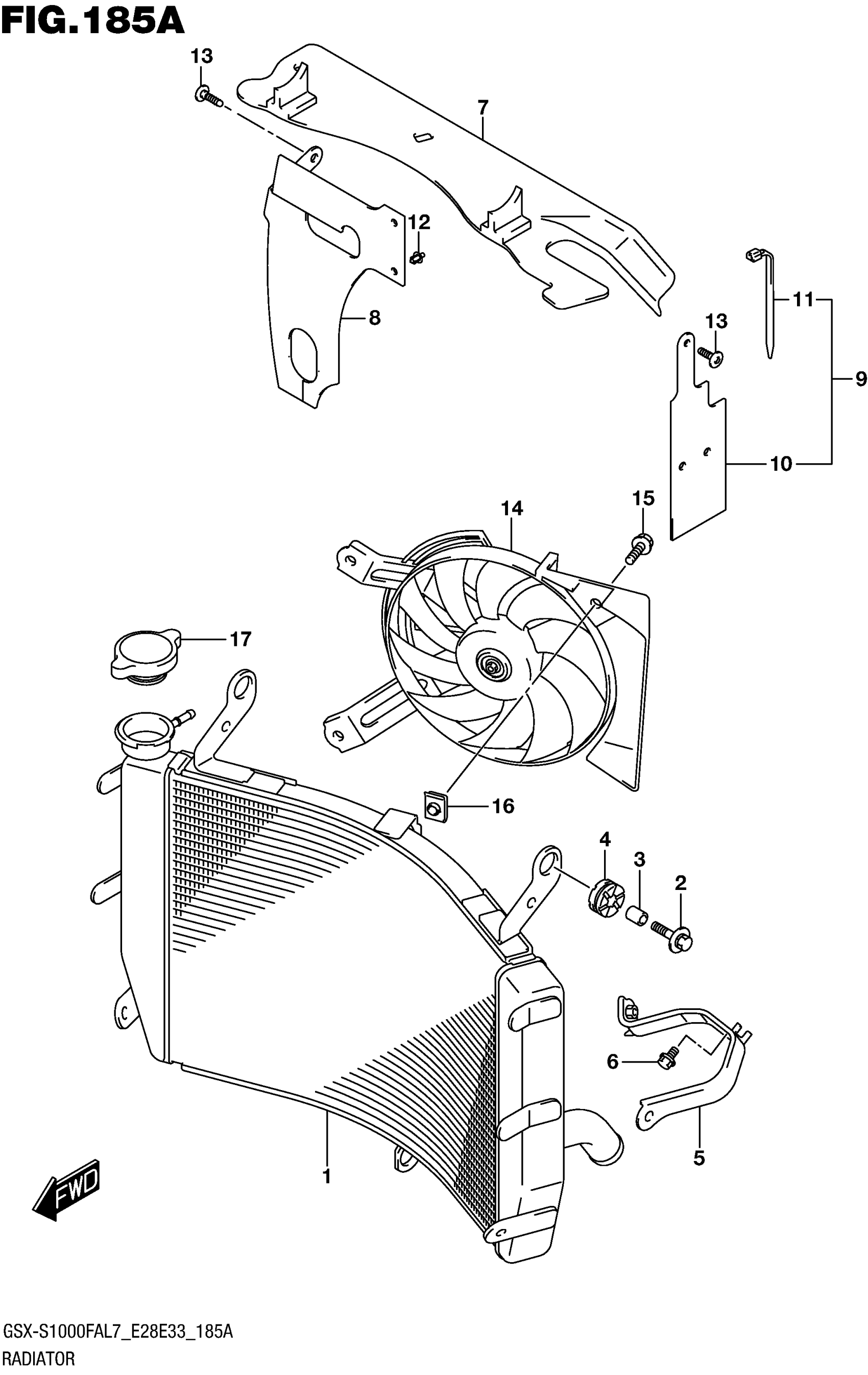

Suzuki GSX-S1000FAL7 (2017) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-04K10

$1,032.12

2

BOLT (6X25)

09118-06097

$2.50

3

SPACER (6.5X10X12)

09180-06290

$2.01

4

CUSHION

09320-10051

$2.81

5

BRACKET,RADIATOR LOWER

17760-04K00

$21.95

6

BOLT

01550-0612A

$1.97

7

SHIELD,RADIATOR HEAT

17771-04K00

Unavailable

8

.SHIELD, HEAT RH

17772-04K00

Unavailable

9

SHIELD ASSY,RADIATOR HEAT LH

17770-04K00

Unavailable

10

.SHIELD,HEAT LH

17773-04K00

Unavailable

11

.CLAMP (L:190)

09407-19401

$3.32

12

CLIP (BLACK)

09409-06314-5PK

$2.80

13

CLIP

09409-06315

$1.70

14

FAN ASSY, RADIATOR This part replaces 17800-04K00.

17800-48K00

$496.80

15

BOLT,FAN ASSY

17711-14G00

$4.62

16

NUT, FAN ASSY

17802-14F00

$3.18

17

CAP, RADIATOR

17730-14G00

$39.21
