2017 Suzuki GSX-S1000FAL7 Headlamp Diagram

← All diagrams

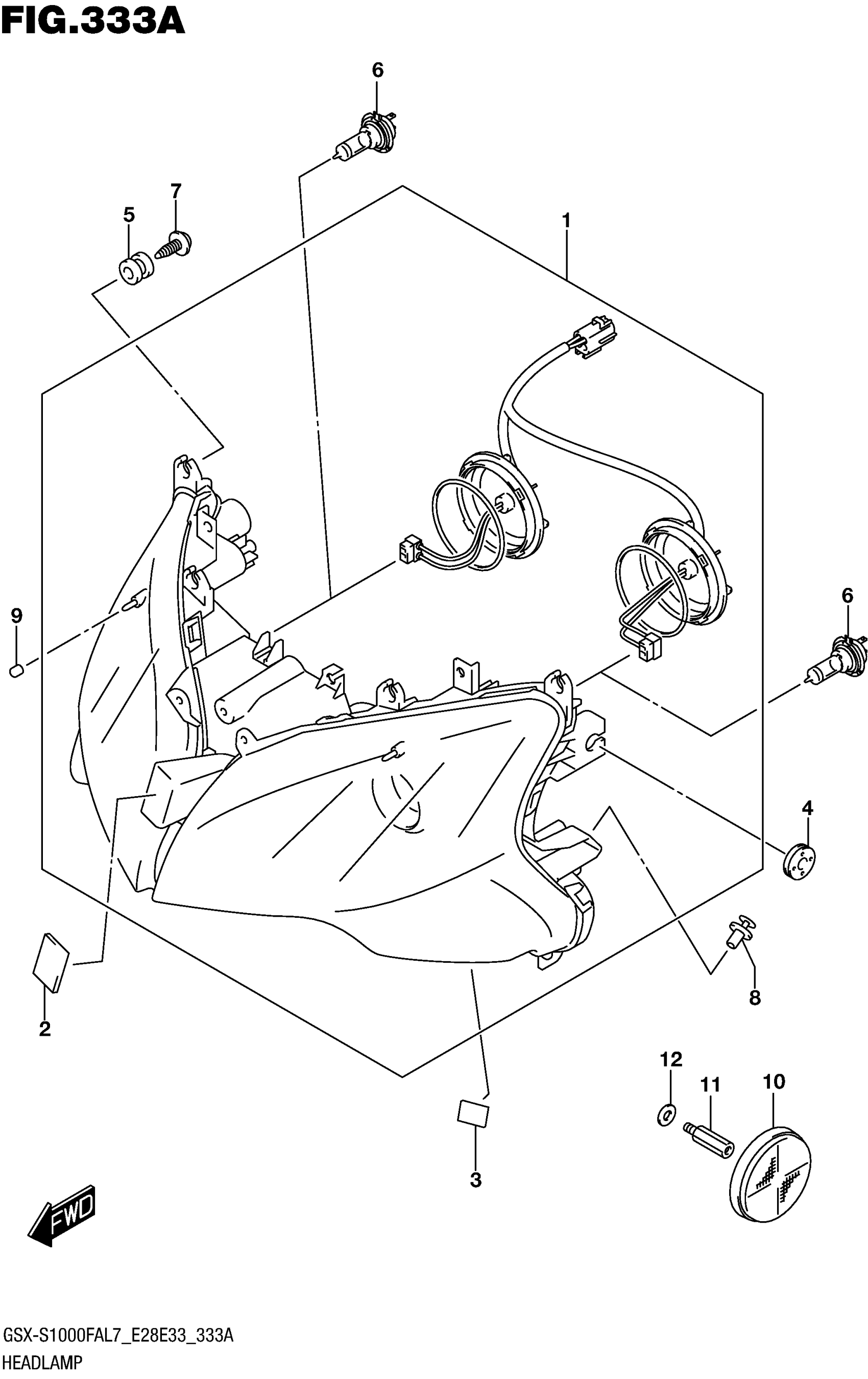

Find the part on the Headlamp diagram for your 2017 Suzuki GSX-S1000FAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000FAL7 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-04KB1-999

1
Out of stock

2

FASTENER

44572-02F01

1
Out of stock

3

FASTENER, COWLING

44572-37H00

2
Out of stock

4

CUSHION

09320-08028

2
Out of stock

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

4
Out of stock

6

BULB (12V55W H7)

09471-12188

2
Out of stock

7

SCREW (5X15)

09136-05062

6
Out of stock

8

CLIP, HEAD LAMP

94479-35F00

2
Out of stock

9

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

3
Out of stock

10

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

11

BOLT

09119-06109

2
Out of stock

12

WASHER (8.5X18X1)

09160-08043

2
Out of stock
