2017 Suzuki GSX-S1000FAL7 Front Fork Damper Diagram

← All diagrams

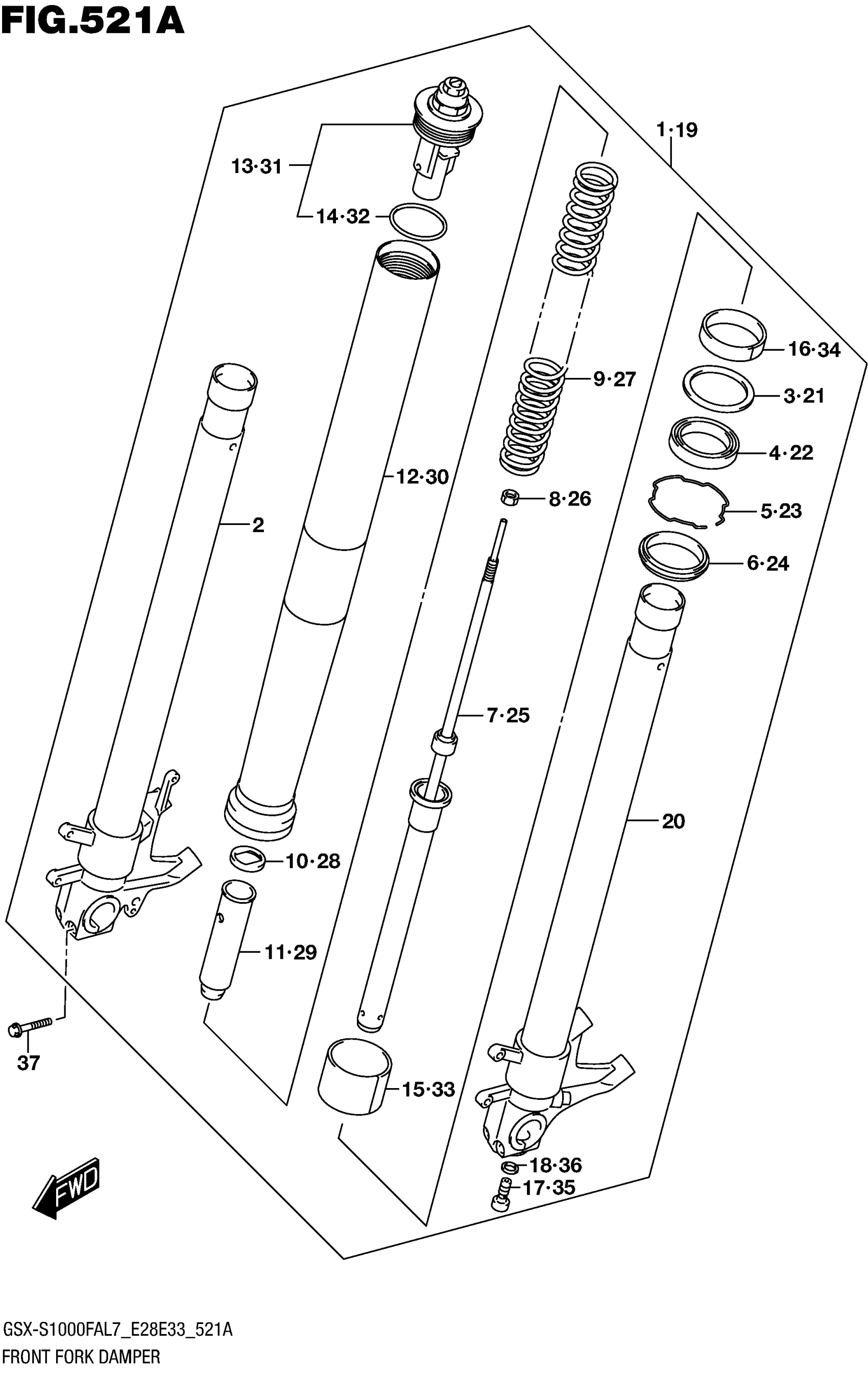

Find the part on the Front Fork Damper diagram for your 2017 Suzuki GSX-S1000FAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX-S1000FAL7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-04K20

1
Out of stock

2

TUBE,INNER RH This part replaces 51110-04K00.

51110-04K01

1
Out of stock

3

.WASHER

51158-14200

1
Out of stock

4

.OIL SEAL

51153-44G00

1
Out of stock

5

.RING, OIL SEAL STOPPER

51156-14200

1
Out of stock

6

.SEAL, DUST

51173-02FA0

1
Out of stock

7

.CYLINDER

51146-04K00

1
Out of stock

8

.NUT, ROD

51352-13A60

1
Out of stock

9

.SPRING

51171-04K00

1
Out of stock

10

.GUIDE, SPRING

51158-40F30

1
Out of stock

11

.SPACER, SPRING

51176-40F30

1
Out of stock

12

.TUBE,OUTER

51131-04K00

1
Out of stock

13

.CAP

51351-04K00

1
Out of stock

14

..O RING

62278-14100

1
Out of stock

15

.PISTON

51112-31J00

1
Out of stock

16

.SLIDEMETAL

51152-31J00

1
Out of stock

17

.BOLT

51147-24F50

1
Out of stock

18

.GASKET

51148-41310

1
Out of stock

19

DAMPER ASSY, FRONT FORK LH

51104-04K20

1
Out of stock

20

.TUBE, INNER LH

51120-04K00

1
Out of stock

21

.WASHER

51158-14200

1
Out of stock

22

.OIL SEAL

51153-44G00

1
Out of stock

23

.RING, OIL SEAL STOPPER

51156-14200

1
Out of stock

24

.SEAL, DUST

51173-02FA0

1
Out of stock

25

.CYLINDER

51146-04K00

1
Out of stock

26

.NUT, ROD

51352-13A60

1
Out of stock

27

.SPRING

51171-04K00

1
Out of stock

28

.GUIDE, SPRING

51158-40F30

1
Out of stock

29

.SPACER, SPRING

51176-40F30

1
Out of stock

30

.TUBE,OUTER

51131-04K00

1
Out of stock

31

.CAP

51351-04K00

1
Out of stock

32

..O RING

62278-14100

1
Out of stock

33

.PISTON

51112-31J00

1
Out of stock

34

.SLIDEMETAL

51152-31J00

1
Out of stock

35

.BOLT

51147-24F50

1
Out of stock

36

.GASKET

51148-41310

1
Out of stock

37

BOLT

51166-24F60

4
Out of stock
