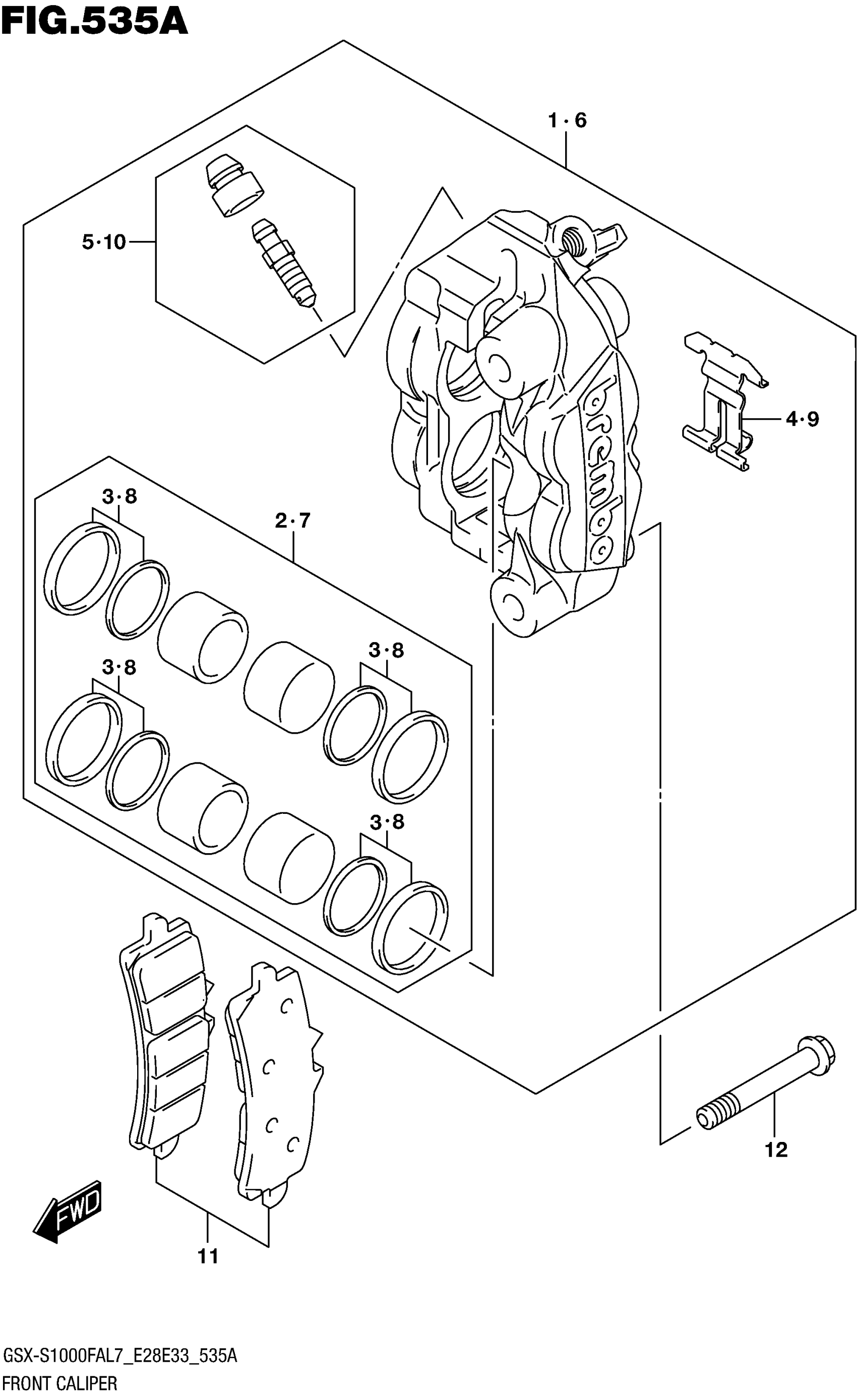

Suzuki GSX-S1000FAL7 (2017) FRONT CALIPER Diagram

#

Description
Price

1-1

CALIPER ASSY, FRONT RH

59100-14J40-999

$746.13

1-2

CALIPER ASSY, FRONT RH | OPT:BLUE

59110-14JB0

Unavailable

1-3

CALIPER ASSY, FRONT RH | OPT:YELLOW

59110-14JC0

Unavailable

1-4

CALIPER ASSY, FRONT RH | OPT:RED

59110-14JD0

Unavailable

2

.PISTON SET

59100-14810

$93.32

3

..SEAL SET, PISTON

59100-14820

$57.99

4

.SPRING, PAD

59151-14J00

$22.06

5

.BLEEDER SET

59100-14840

$23.74

6-1

CALIPER ASSY, FRONT LH

59300-14J40-999

$746.13

6-2

CALIPER ASSY, FRONT LH | OPT:BLUE

59310-14JB0

Unavailable

6-3

CALIPER ASSY, FRONT LH | OPT:YELLOW

59310-14JC0

Unavailable

6-4

CALIPER ASSY, FRONT LH | OPT:RED

59310-14JD0

Unavailable

7

.PISTON SET

59100-14810

$93.32

8

..SEAL SET, PISTON

59100-14820

$57.99

9

.SPRING, PAD

59151-14J00

$22.06

10

.BLEEDER SET

59100-14840

$23.74

11

PAD (T4.0)

59100-14850

$54.33

12

BOLT (10X70)

09103-10450

$4.42
