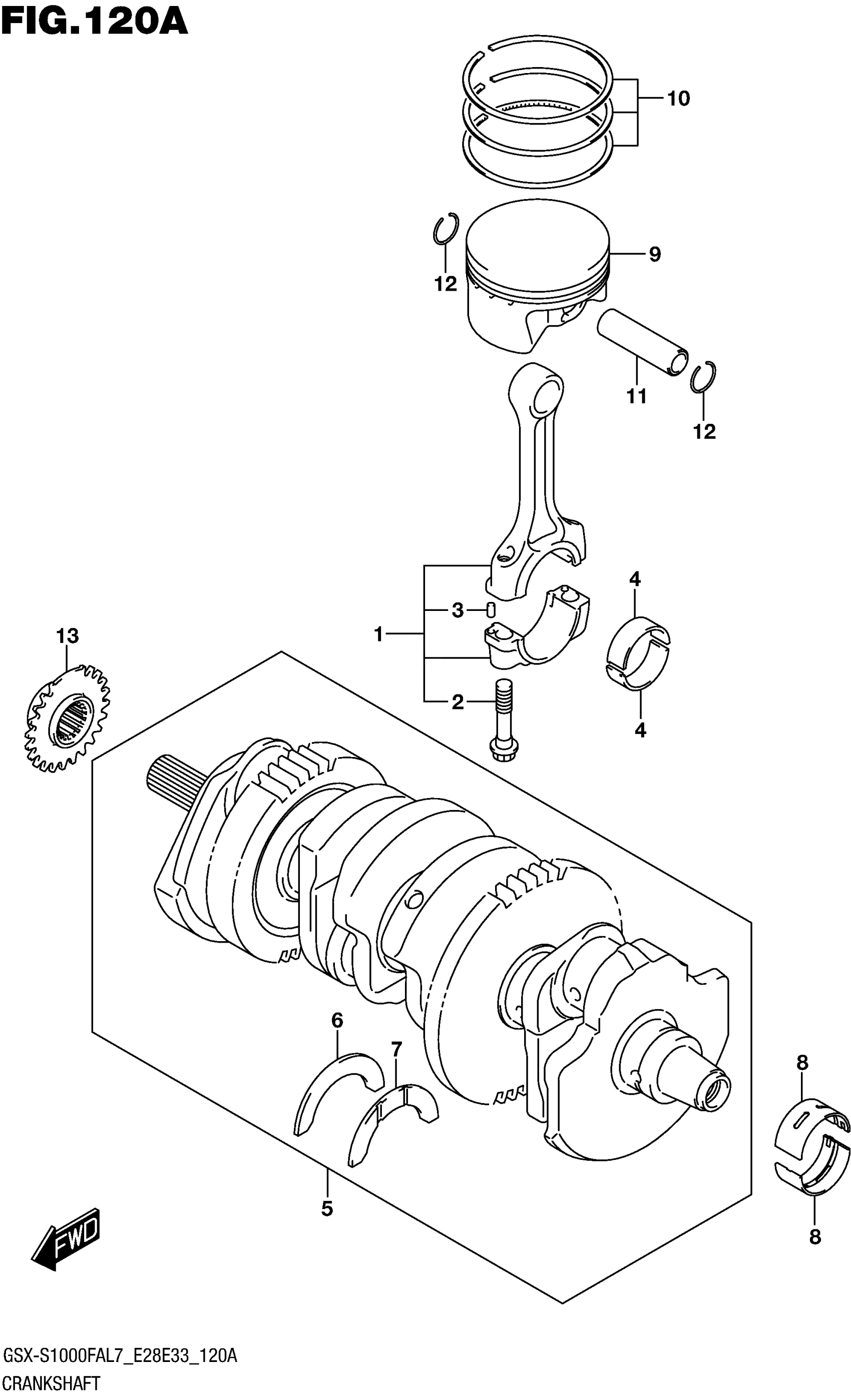

Suzuki GSX-S1000FAL7 (2017) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-04K00

$237.92

2

.BOLT,CONNECTING ROD

12163-24F10

$15.05

3

PIN (4X13.8)

04221-04089

$1.10

4-1

BEARING, CRANK PIN

12164-47H10-0A0

$11.31

4-2

BEARING, CRANK PIN

12164-47H10-0B0

$11.31

4-3

BEARING, CRANK PIN

12164-47H10-0C0

$10.98

4-4

BEARING, CRANK PIN

12164-47H10-0D0

$11.70

5

CRANKSHAFT SET This part replaces 12000-48850.

12000-48851

$1,558.27

6

.BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$8.80

7-1

.BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$13.05

7-2

.BEARING, THRUST LH (RED)

12228-48B00-0C0

$12.82

7-3

.BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$13.30

7-4

.BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$8.80

7-5

.BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$13.30

7-6

.BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$13.30

7-7

.BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.09

8-1

BEARING, CRANKSHAFT

12229-04K00-0A0

$20.53

8-2

BEARING, CRANKSHAFT

12229-04K00-0B0

$14.56

8-3

BEARING, CRANKSHAFT

12229-04K00-0C0

$20.53

8-4

BEARING, CRANKSHAFT

12229-04K00-0D0

$20.53

8-5

BEARING, CRANKSHAFT

12229-04K00-0E0

$20.53

9

PISTON

12111-04K00-0F0

$213.62

10

RING SET, PISTON

12140-04K00

$107.92

11

PIN, PISTON

12151-04K00

$16.85

12

SNAP RING

09381-16001

$1.45

13

SPROCKET, CAM CHAIN (NT:17)

12731-29G00

$146.42
