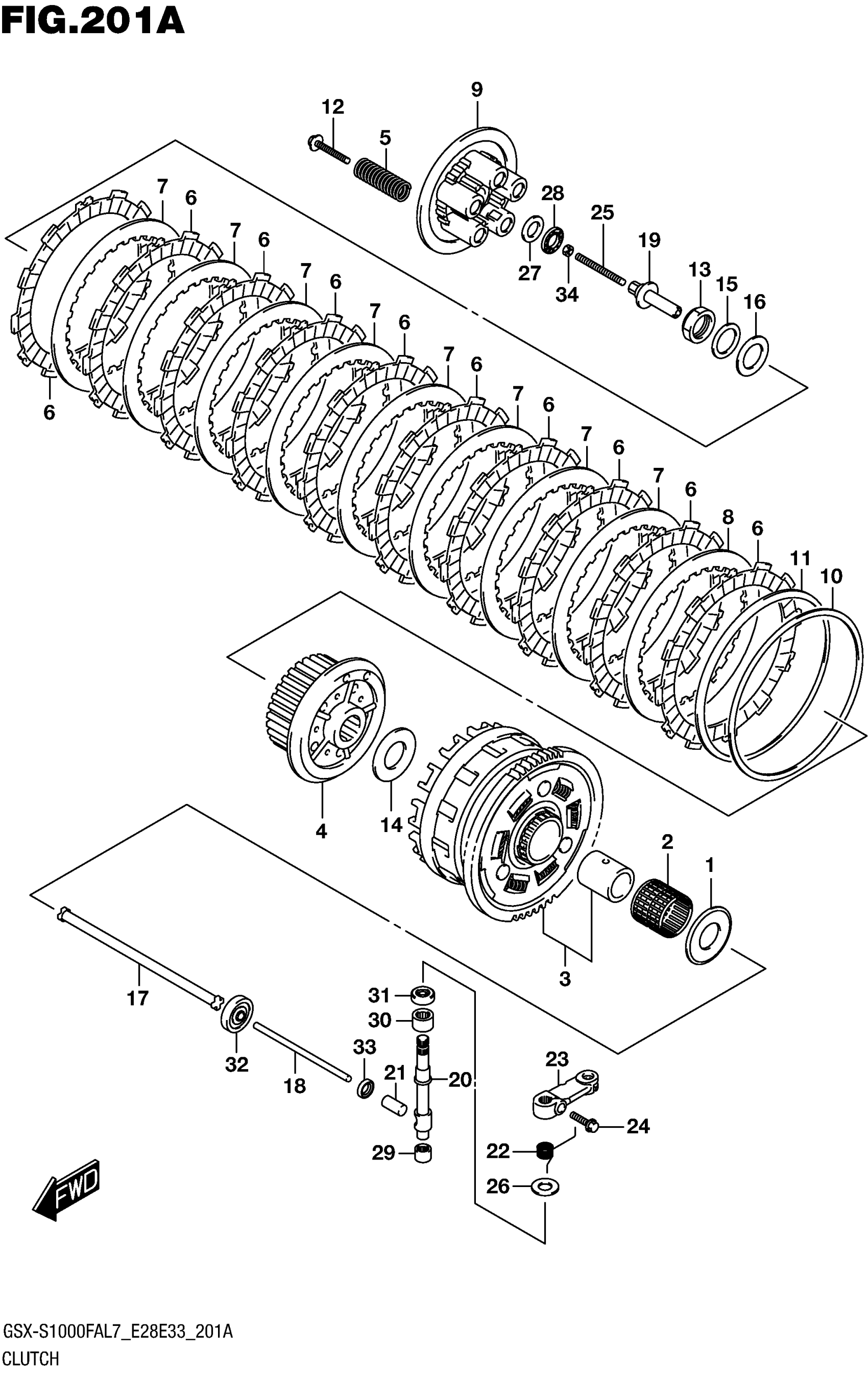

Suzuki GSX-S1000FAL7 (2017) CLUTCH Diagram

#

Description
Price

1

WASHER (25X54X2.4)

09160-25073

$15.75

2

BEARING (35X40X35.8)

09263-35017

$38.42

3

GEAR ASSY, PRIMARY DRIVEN

21200-40880

$578.83

3

(NT:73)

21200-40880

$578.83

4

HUB, CLUTCH SLEEVE

21410-40F01

$126.55

5

SPRING, CLUTCH

21413-04K00

$10.52

6

PLATE, CLUTCH DRIVE (T:2.8)

21441-40F20

$26.77

7

PLATE, CLUTCH DRIVEN NO.1

21451-40F00

$11.69

7

(T:2.3)

21451-40F00

$11.69

8

PLATE, CLUTCH DRIVEN NO.4

21451-40F30

$13.25

8

(T:2.3)

21451-40F30

$13.25

9

DISC, CLUTCH PRESSURE

21462-40F00

$72.33

10

SEAT, WAVE WASHER

21471-40F00

$14.11

11

WASHER, CLUTCH PLATE WAVE

21472-40F00

$20.12

12

BOLT, CLUTCH SPRING

21412-04K00

$4.28

13

NUT

09159-24010

$12.27

14

.WASHER (25X50X2.5)

09160-25056

$10.94

15

WASHER

09164-24008

$5.00

16

SHIM (25X38X1)

09181-25223

$3.00

17

ROD, CLUTCH PUSH RH

23110-38B00

$22.18

18

ROD, CLUTCH PUSH, LH

23111-05A01

$13.54

19

PIECE, CLUTCH PUSH

23121-41G00

$55.32

20

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$64.22

21

CAP, CLUTCH PUSH ROD

23123-41G00

$10.46

22

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$3.11

23

ARM,CLUTCH RELEASE

23271-41G00

$53.05

24

BOLT (6X20)

09103-06223

$2.57

25

SCREW (6X73)

09134-06015

$6.44

26

WASHER (10.5X24X1)

09160-10020

$1.93

27

WASHER (15.5X28X1)

09160-15045

$3.62

28

BEARING (15X28X2)

09263-15003

$7.70

29

BEARING (10X14X10)

09263-10014

$12.57

30

BEARING (12X18X12)

09263-12027

$6.79

31

OIL SEAL (10X20X6)

09282-10012

$7.42

32

OIL SEAL (6X34X10.5)

09283-06010

$15.62

33

OIL SEAL (10X17X5)

09285-10004

$3.13

34

NUT

08310-0006A

$1.89
